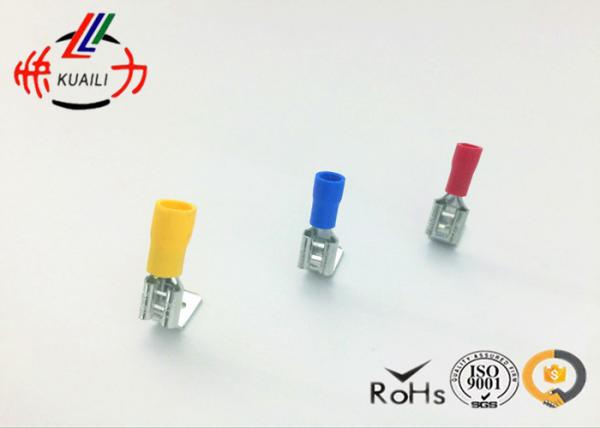

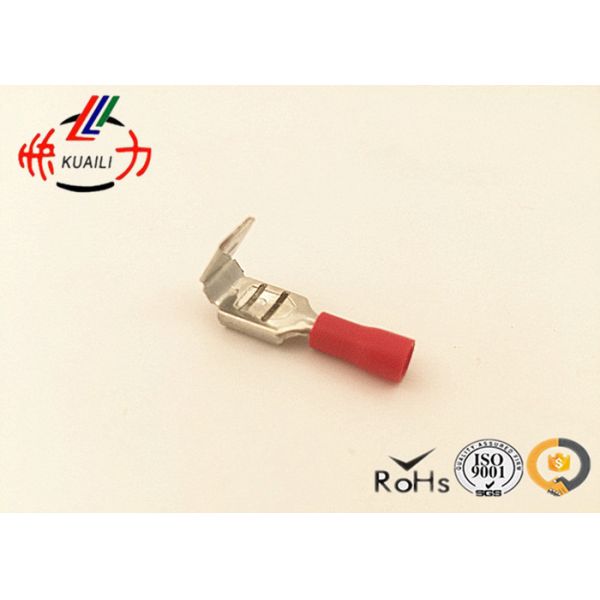

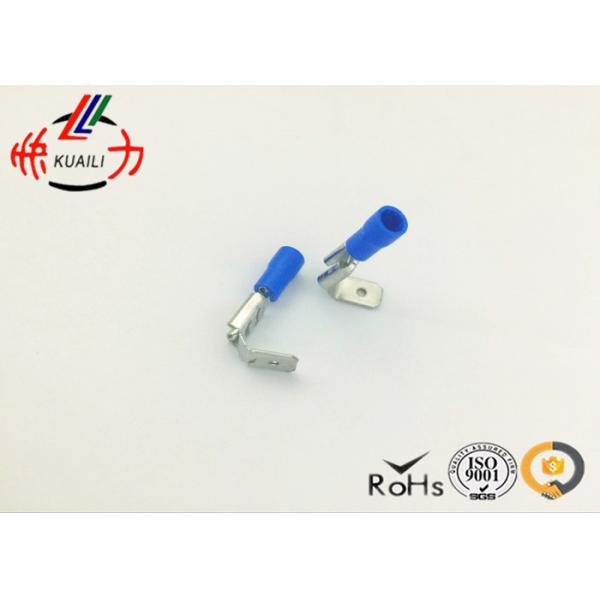

Piggy Back Male and Female Insulated Wire Terminals Red Blue Yellow
Piggy Back Male and Female Insulated Wire Terminals Red Blue Yellow
Specifications
Brand Name :
KUAILI
Model Number :
PBDD SERIES
Certification :
ROSH
Place of Origin :
China
MOQ :
1000pcs
Price :
advisory
Payment Terms :
L/C, D/P, D/A, T/T,
Supply Ability :
100000 per week
Delivery Time :
5~30days According to the order quantity
Packaging Details :
100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.
Special :
Spade Terminal
Color :
Red Blue Yellow
Material :
Brass
Wire size :
0.5-1.5,1.5-2.5,4-6mm2
Insulation :
PVC
Description

Good Quality Pre-insulated Piggy Back Male and Female Connector Terminals

The most economical Insulated female & male terminal available. PBDD terminal connect with electrical wire and strengthen its reliability and safety,PVC insulation sleeve is securely fastened to the butted seam barrel. Insulated female & male terminals are typically the most economical.It is made of purity of 99.9% Copper by die cast and coated tin.The products adopt wonderful explosion-proof friction welding workmanship.

Quick Details

Place of Origin: Zhejiang, China (Mainland)
Brand Name: LHE
Model Number: PBDD1.25-250
Type: Piggy Back Disconnect
Product name: Insulated Piggy Back Disconnect
Insulation: PVC
Terminal Body: Brass
Plating: Tin

PBDD Shoulder shaped Male &Female pre-insulating joints:
1. CE,RoHS,ISO2001
2. PBDD1.25-250,PBDD2-250,PBDD5.5-250 OR 250 Terminal/Lug.
3. 99.9% pure copper
4. insulating material:PVC/Nylon

5. Color:Red,Blue,Yellow

6. MAXIMUM ELECTRIC CURRENT:
22-16 AWG /0.5-1.5mm2 :10 A
16-14 AWG /1.5-2.5mm2 :15A
12-10 AWG /4-6mm2:24 A

Piggy Back Male and Female Insulated Wire Terminals Red Blue Yellow

Size of Cable:0.5 - 1.5 mm² (A.W.G 22 - 16 ) Max.Current:Imax = 10A

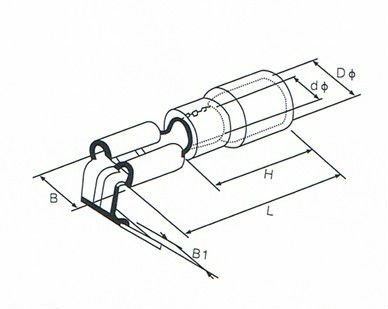

ITEM NO NEMA TAB (mm) Dimension color
B B1 H DΦ dΦ L
PBDD 1.25 - 250 0.8 x 6.35 7.4 6.35 10 3.8 1.7 21.5 red
Size of Cable:1.5 - 2.5 mm² (A.W.G 16 - 14 ) Max.Current:Imax = 15A
ITEM NO NEMA TAB (mm) Dimension color
B B1 H DΦ dΦ L
PBDD 2 - 250 0.8 x 6.35 7.4 6.35 10 4.3 2.3 21.5 blue
Size of Cable:4 - 6 mm² (A.W.G 12 - 10 ) Max.Current:Imax = 24A
ITEM NO NEMA TAB (mm) Dimension color
B B1 H DΦ dΦ L
PBDD 5.5 - 250 0.8 x 6.35 7.4 6.3 14 5.7 3.4 25 yellow

Piggy Back Male and Female Insulated Wire Terminals Red Blue YellowPiggy Back Male and Female Insulated Wire Terminals Red Blue Yellow

1.Free sample
2.DHL,UPS,TNT,Fedex,Aramex and forwarder are accept
3.Produce and purchase all connector to satify your request
4.Accept T/T in advance, , Western Union and Escrow
5.Most product not have MOQ,orders for just one piece are welcome
6.Actual drawing,picture and part No. will assist to get a competitive price soon
7.The stock goods will be delivered within 3days,and the customized goods will be delivered within 7days
