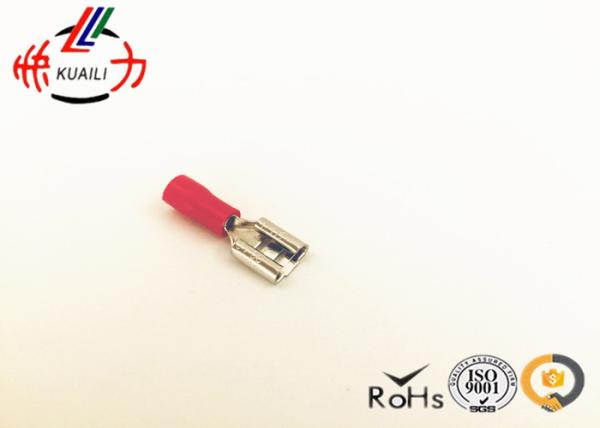

FDD Copper Crimp Female Cable Insulated Wire Terminals Disconnector AWG 22-16 Red
FDD Copper Crimp Female Cable Insulated Wire Terminals Disconnector AWG 22-16 Red
Specifications
Brand Name :
KUAILI
Model Number :
insulated female disconnectors
Certification :
ROSH
Place of Origin :
China
MOQ :
1000pcs
Price :
advisory
Payment Terms :
L/C, D/P, D/A, T/T,
Supply Ability :
100000 per week
Delivery Time :
5~30days According to the order quantity
Packaging Details :
100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.
Name :
Terminals-FDD
Color :
Red
Wire Range :
0.5~1.5mm2
max current :
10A
material :
PVC
Material :
Brass
Description

High Quality FDD Copper Crimp Insulated Female Cable Terminals Disconnector AWG 22-16 Red

why choose us?


1. professional manufacturer for 10 years.
2. The quality worth the price.
3. on time delivery .
4. flexible payment.
5. you can customize various terminal from us .

We continuously improve all aspects of quality,we have been overcome our difficulties encountered in research and development.

Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 10A
ITEMNO NEMATAB Thickness Dimension
B dΦ DΦ L H
mm mm mm mm mm mm mm
FDD 1.25-110(5) 0.5*2.8 0.3 3.8 1.7 3.8 19.0 10.0
FDD 1.25-110(8) 0.8*2.8 0.3 3.8 1.7 3.8 19.0
FDD 1.25-187(5) 0.5*4.75 0.35 5.6 1.7 3.8 19.0
FDD 1.25-187(8) 0.8*4.75 0.35 5.6 1.7 3.8 19.0
FDD 1.25-205 0.5*5.2 0.35 6.5 1.7 3.8 20.0
FDD 1.25-250 0.8*6.35 0.4 7.4 1.7 3.8 21.0

company introduction
Our factory has gained strong level in technology, production experience, sophisticated manufacturing equipment, advanced technology, quality of staff lean, and has constantly developed new product capabilities.
We have designed molding machine production lines and stamping production lines and other equipment, etc, to ensure product quality and stability.

FAQ
1.The sample is free?
Ans:Yes.

2.When will you send the samples?

Ans:1day after you confirm.

3.Can you give me a discount for large orders?

Ans:Yes.

4.How is the quality of your product?

Ans:Quality worth the price.

5.If I order a large quantity,what time do you delivery?

Ans:We as far as possible to speed up production.
