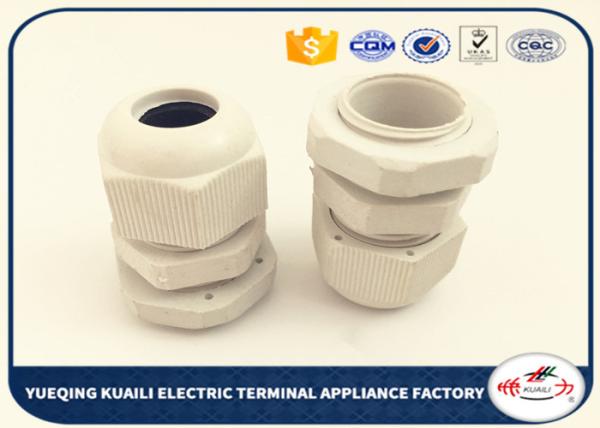

M16 Ip68 Waterproof Nylon Plasticcable Gland For Unarmoured Cable 4-8mm Dia
M16 Ip68 Waterproof Nylon Plasticcable Gland For Unarmoured Cable 4-8mm Dia
Specifications
Brand Name :
KUAILI
Model Number :
Cable Glands Connector
Certification :
ROSH
Place of Origin :
CHINA
MOQ :
100pcs
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000000pcs per week
Delivery Time :
5~30days According to the order quantity
Packaging Details :
100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.
Name :
Hole Cable Gland
Material :
Nylon, Nylon, plastic
Color :
Grey White
Sealing :
Modified Rubber
Temperature Ran :
-40℃ - 100℃
Usage :
Cable Installation
Description

Factory Supply M16 Ip68 Waterproof Nylon Plastic 4-8mm Dia Cable Glands Connectors

Material:
Nylon 66, 94V-2, certificated by UL, tight ring is made of rubber
Feature:
1, Special designation, good strengthsile and none damage to electrical machine
2 , Not need to disengage the fix terminal, cable can be inserted through directly then tighten easy and save time
Application:
widely used for cable wire fixing in the field of machinery control box, distribution plate, machine and electrical, etc.

We is specialied in produce nylon cable tie ,cable marker ,spiral wrapping bands ,expandable plugs,cable tie mount.clips. cable gland etc. our factory established in 2001 ,it has more than 15 years experience to produce the plastic products .we have more than 40 set machines,our factory insists on the quality policy of science and technology is the base ,Superexcellent quality is the most important aim .it would greatly appreciate the chance to convince you of our quality, ability and potential.

Specification:


M16 Ip68 Waterproof Nylon Plasticcable Gland For Unarmoured Cable 4-8mm Dia

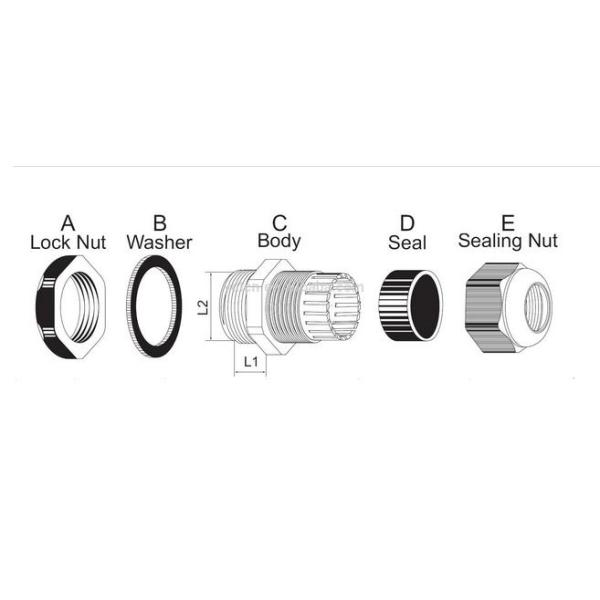

Thread Cable Range (mm) Thread Length (mm) Body Height(mm) Spanner Size (mm) Thread O.D(mm) Panel Mounting Hole (mm) Packing (Pcs/Bag)
M12x1.5 3-6.5 15 22 15/16 12 12-12.3 100
M12x1.5 2-5 15 22 15/16 12 12-12.3 100
M16x1.5 4-8 15 26 19 16 16-16.3 100
M16x1.5 2-6 15 26 19 16 16-16.3 100
M16x1.5 5-10 15 27 22 16 16-16.3 100
M16x1.5 3-7 15 27 22 16 16-16.3 100
M18x1.5 5-10 15 27 22 18 18-18.3 100
M18x1.5 3-7 15 27 22 18 18-18.3 100
M20x1.5 6-12 15 28 24 20 20-20.3 100
M20x1.5 5-9 15 28 24 20 20-20.3 100
M20x1.5 10-14 15 30 27 20 20-20.3 100
M20x1.5 7-12 15 30 27 20 20-20.3 100
M22x1.5 10-14 15 30 27 22 22-22.3 100
M22x1.5 7-12 15 30 27 22 22-22.3 100
M25x1.5 13-18 15 35 33 25 25-25.3 100
M25x1.5 9-16 15 35 33 25 25-25.3 100
M32x1.5 18-25 15 40 41/42 32 32-32.3 50
M32x1.5 13-20 15 40 41/42 32 32-32.3 50
M40x1.5 19-28 18 43 45/46 40 40-40.3 20
M40x1.5 15-23 18 43 45/46 40 40-40.3 20
M40x1.5 22-32 18 48 52/53 40 40-40.3 20
M40x1.5 20-26 18 48 52/53 40 40-40.3 20
M50x1.5 27-35 18 48 55/56 50 50-50.3 20
M50x1.5 22-29 18 48 55/56 50 50-50.3 20
M50x1.5 32-38 18 49 60/61 50 50-50.3 2
M50x1.5 25-31 18 49 60/61 50 50-50.3 20
M63x1.5 37-44 18 50 64 63 63-63.3 20

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below:

Add: No.78 Kaifa Road.Electrial Industial zone,Of North
Baixinag Town Yueqing Zhengjiang China
