Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels
Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels
Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels
Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels
Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels
Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels
Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels
Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
NEWLEAD
Model Number :
FWD
Certification :
CE
Price :
Negotiation
MOQ :
1 Unit/Units
Supply Ability :
50 pcs in 30 days
Delivery Time :
30 days
Packaging Details :
wooden pallet or by wooden box
Condition :
New
Inlet Diameter :
0.8-1.2
Outlet Diameter :
0.1-0.4
Voltage :
380/415/440/220
Power(W) :
11KW+4KW
Dimension(L*W*H) :
2.1*1.6*1.7M
Weight :
2T
Warranty :
1 YEAR
After-sales Service Provided :
Engineers available to service machinery overseas
Description

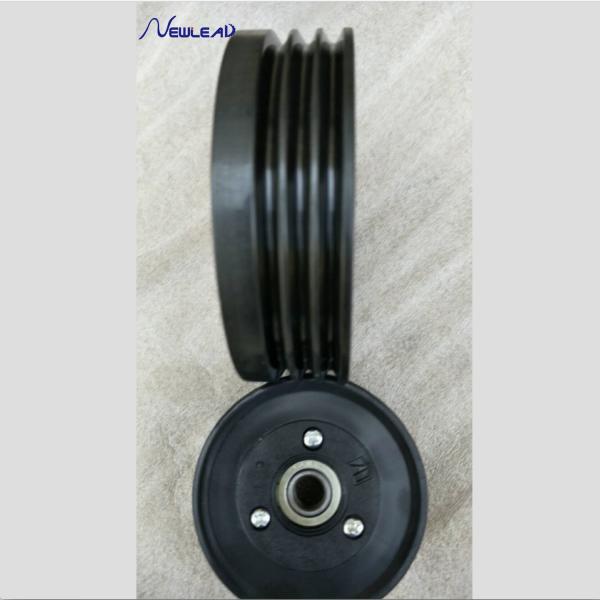

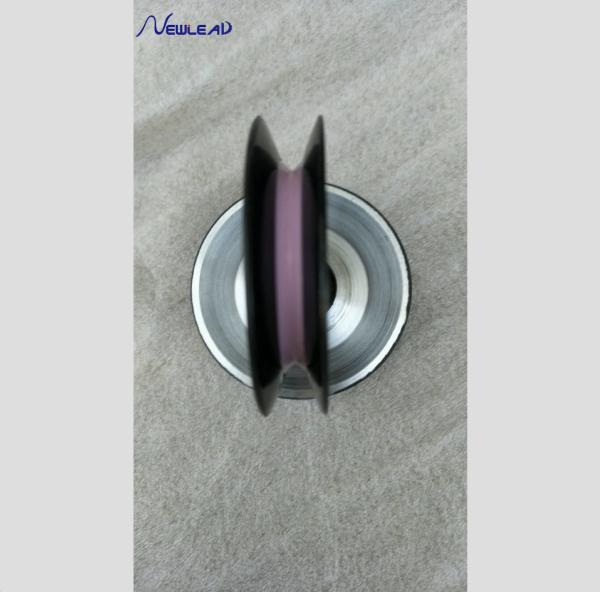

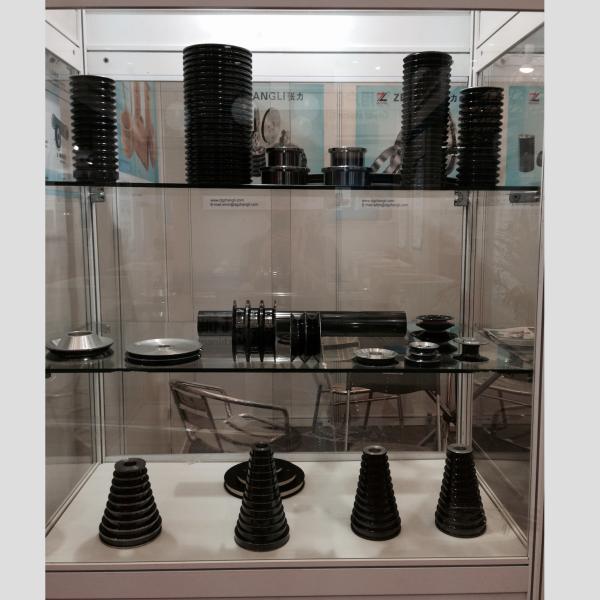

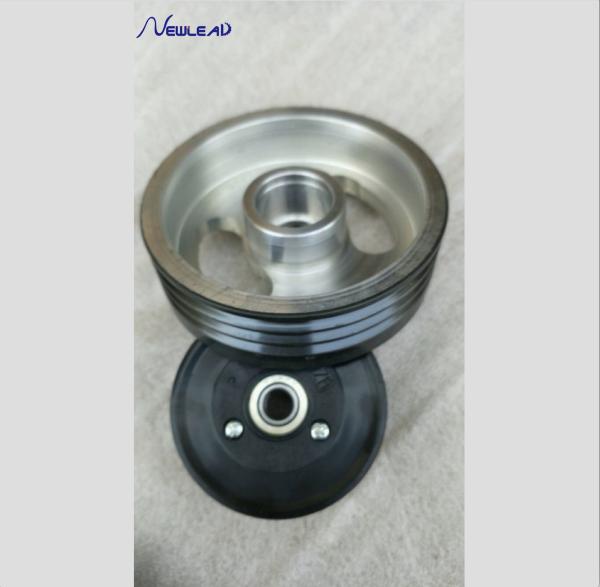

Spare parts for Fine wire drawing machine cones,pulleys,wheels,capstan,shafts,contact annealing band​

We are the biggest manufactuter of spare parts for wire drawing machine,please go browse our producing process Video site:

1.https://youtu.be/aGsCWkt86co

2.https://youtu.be/jrLbq56Yg40

Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels

Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels

Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels

Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels

1:wire drawing in a single, compact

unit

2:ergonomic and user-friendly machine design,

with easy maintenance

3:left and right-hand versions for Non Ferrous

4:metal wires with the highest quality

5:requirements

6:single wire path with no crossover

effective single-wire drying

machine type 22DS 24DS
inlet diameter(mm) 0.8--1.2 0.5-1.0
outlet diameter(mm) 0.1--0.4 0.08-0.25
drawing line speed(MPM) 2500 2500
drawing dies No./Max 22 24
slip ratio of m/c 15% 13%
fix speed capstan slip ratio 8% 8%
capstan ceramic plasma ceramic plasma
capstan dia.(max.)(mm) φ242 φ242
fix speed capstan dia.(mm) φ207 φ207
frame ironed cast ironed cast
main motor 11KW three phase inductor motor 11KW three phase inductor motor
spooler motor 3.7KW three phase inductor motor 3.7KW three phase inductor motor
revise system Dual inverter control
inverter control Dual inverter control
transmission type flat belt
payoff method over head
traversing unit flat belt + timing motor
tension control weightbalance by swing arm
lubrication system of wire drawing spray
suitable diameter of spool (mm) φ300 φ300
capacity for wire receiving(kg) 50-60 50-60
bobbin loading & unloading type shaft type
power source 380V/220/415/480
brake pneumatic brake
machine dimension 2050L×1600W×1900H 2050L×1600W×1900H
machine weight 2000 2000
