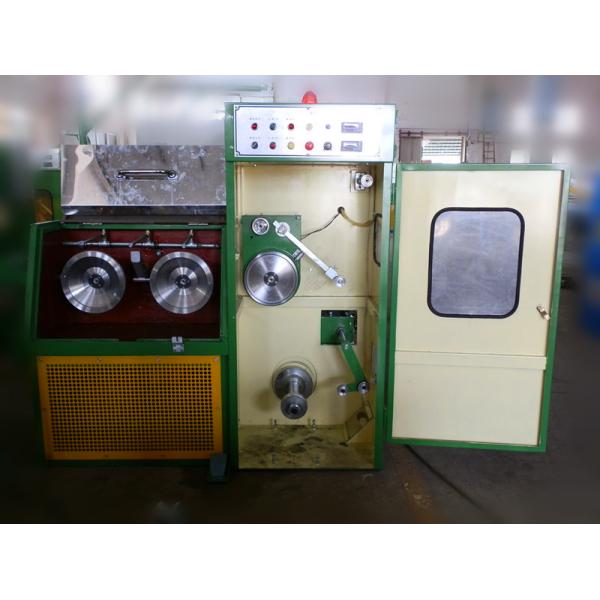

Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS/24DSS For Fine Wire Range
Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS/24DSS For Fine Wire Range
Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS/24DSS For Fine Wire Range
Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS/24DSS For Fine Wire Range
Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS/24DSS For Fine Wire Range
Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS/24DSS For Fine Wire Range
Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS/24DSS For Fine Wire Range
Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS/24DSS For Fine Wire Range
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Newlead
Model Number :
14DSS/24DSS
Certification :
CE
Price :
Negotiation
MOQ :
1 Unit/Units
Supply Ability :
1 set in 50 days
Delivery Time :
50 days
Packaging Details :
wooden pallet or by wooden box
Outlet Diameter :
0.08-0.25mm
Voltage :
380/415/440/220 optionally
Power(W) :
11KW+4KW
Dimension(L*W*H) :
2.1*1.6*1.7M
Weight :
2T
Warranty :
1 YEAR
After-sales Service Provided :
Engineers available to service machinery overseas
Description

14DSS/24DSS Stainless steel SS wire fine wire drawing machine for fine wire range

Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS/24DSS For Fine Wire Range

14DB

machine type 14DB
inlet diameter(mm) ￠0.6-￠1.2
outlet diameter(mm) ￠0.25-0.5
drawing line speed 800
drawing dies No./Max 14
slip ratio of m/c 12％
fix speed capstan slip ratio 8％
capstan tungsten　
capstan dia.(max.)(mm) ￠380
fix speed capstan dia.(mm) ￠330
frame welded by steel plate
main motor 18.5KWthree phase inductor motor
spooler motor 5.5KWthree phase inductor motor
revise system PID synchronous spooler
transmission type gear-shaped belt
send-out method over head
tension control pneumatic balance by swing arm
lubrication system of wire drawing half-immersing
suitable diameter of spool(mm) ￠300
capacity for wire receiving(kg) 35
bobbin loading & unloading type shaft type
power source 380V
brake magnetic brake
machine dimension(mm) 1950L×1100W×1750H
machine weight(kg) 2200

machine type 24DB
inlet diameter(mm) ￠0.5-￠1.0
outlet diameter(mm) ￠0.08-￠0.25
drawing line speed(MPM) 800
drawing dies No./Max 24
Slip ratio of m/c 13％
fix speed capstan slip 8％
capstan capstan
capstan dia.(max.)(mm) ￠194
fix speed capstan dia.(mm) ￠159
frame ironed cast
main motor 15KWironed cast
spooler motor 4KWironed cast
revise system PID synchronous spooler
inverter control Dual inverter control
transmission type flat belt
send-out method over head
traversing unit flat belt + timing motor
tension control weight balance by swing arm
lubrication system of wire drawing spray
suitable diameter of spool (mm) ￠200
capacity for wire receiving(kg) 13
bobbin loading & unloading type shaft type
power source 380V
brake pneumatic brake
machine dimension(mm) 2050L×1600W×1900H
machine weight(kg) 2500
