11DST Cable Straight Wire Drawing Machine Inlet 3.0-3.5 Outlet 0.8-2.78mm
11DST Cable Straight Wire Drawing Machine Inlet 3.0-3.5 Outlet 0.8-2.78mm
11DST Cable Straight Wire Drawing Machine Inlet 3.0-3.5 Outlet 0.8-2.78mm
11DST Cable Straight Wire Drawing Machine Inlet 3.0-3.5 Outlet 0.8-2.78mm
11DST Cable Straight Wire Drawing Machine Inlet 3.0-3.5 Outlet 0.8-2.78mm
11DST Cable Straight Wire Drawing Machine Inlet 3.0-3.5 Outlet 0.8-2.78mm
11DST Cable Straight Wire Drawing Machine Inlet 3.0-3.5 Outlet 0.8-2.78mm
11DST Cable Straight Wire Drawing Machine Inlet 3.0-3.5 Outlet 0.8-2.78mm
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
RBO
Model Number :
11DST
Certification :
CE
Price :
Negotiation | 1 Unit/Units practical wire drawing machine (Min. Ord
MOQ :
1 Unit/Units
Supply Ability :
5 sets in 2 months
Delivery Time :
60 days
Packaging Details :
wooden pallet
Condition :
New
Inlet Diameter :
3.5-3.0
Outlet Diameter :
0.8-2.76
Voltage :
380V
Power(W) :
-
Dimension(L*W*H) :
-
Weight :
2T
Warranty :
1 YEAR
After-sales Service Provided :
Engineers available to service machinery overseas
material :
3.5 barrel soft or hard copper wire
usage :
Drawing annealing
Description

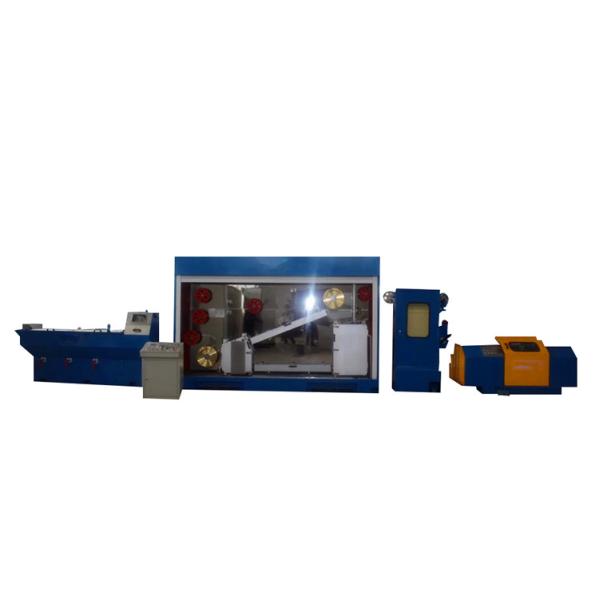

11DST Cable factory designed Intermediate wire drawing machine with continuous annealer Inlet 3.0-3.5,outlet 0.8-2.78mm

Design:

  • optimum wire cooling/lubrication by fully submerged drawing basin

  • extremely smooth operation and uniform load transmission by helical precision gear

  • highly reliable separation of drawing emulsion and gear oil via mechanical seal (long service intervals)

  • user-friendly design

    Increase in quality:

    • straight wire path caused by staggered cone pairs (very high wire surface quality)

    Increase in productivity:

• NMI ( Machine Interface) color touchscreen for data entry, display of production parameters and maintenance instructions

Energy and cost efficiencys:

• reduced consumption of electrical energy per ton of produced wire

• long service intervals and extended drawing die service life minimize costs and spare die stock levels

• reduced consumption of oil and drawing lubricant

machine

11DST

inlet diameter(mm)

Φ3.5-3.0

outlet diameter(mm)

Φ0.8-φ2.76

drawing line speed(MPM)

900

drawing dies No./Max.

11

slip ratio of m/c

19.5%

fix speed capstan slip ratio

16.5%

capstan

tungsten

capstan dia.(max.)(mm)

Φ280

fix speed capstan dia.(mm)

φ 260

frame

weld,two conjunctions

main motor

55KW,ACmotor

spooler motor

15KW AC motor

revise system

PID synchronous spooler

power control

AC motor inverter control

transmission type

gear

send-out method

over head

traversing unit

decelerate motor

tension control

pneumatic balance by swing arm

lubrication system of wire drawing

all immerse type

suitable diameter of apool (mm)

PND630

capacity for wire receiving (kg)

200-500

power source

380V

brake

pneumatic
