Vertical Super Enamel Coating Machine For Copper Wire Stripping 24 Lines 0.80-2.5mm
Vertical Super Enamel Coating Machine For Copper Wire Stripping 24 Lines 0.80-2.5mm
Vertical Super Enamel Coating Machine For Copper Wire Stripping 24 Lines 0.80-2.5mm
Vertical Super Enamel Coating Machine For Copper Wire Stripping 24 Lines 0.80-2.5mm
Vertical Super Enamel Coating Machine For Copper Wire Stripping 24 Lines 0.80-2.5mm
Vertical Super Enamel Coating Machine For Copper Wire Stripping 24 Lines 0.80-2.5mm
Vertical Super Enamel Coating Machine For Copper Wire Stripping 24 Lines 0.80-2.5mm
Vertical Super Enamel Coating Machine For Copper Wire Stripping 24 Lines 0.80-2.5mm
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Newlead
Model Number :
RX-QHL 7400-12+12/7
Price :
US $80,000-150,000 / Sets | 1 Set/Sets (Min. Order)
MOQ :
1 Set/Sets
Certification :
ISO CE
Usage :
Enameling, wire enameling machine
Name :
copper wire enameling machine
Warranty :
1 Year
Supply voltage :
3*380V50HZ
Daily power consumption :
About 700kw.h
Total power :
270kw
limits of wire gauge :
0.80 - 2.50mm
number of wire :
24(12+12)
Description

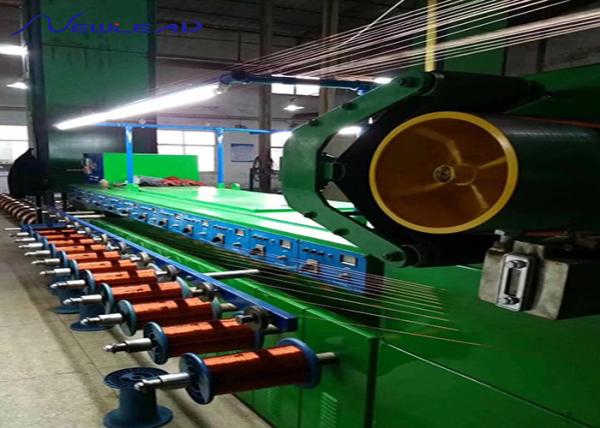

RX - QHL 7400 - 12 + 12 / 7 Double furance Vertical Enameling Machine

with Hearted Air Circulation

Super saving power enameling machine


Vertical enameling machine 700KW.H in 24 hours
1:Developments of catalyst combustion and heat exchange efficiency.Heat dissipation by radiation has been decreased by modifications of heat insulations.
2:Exhausted heat has been effectively transferred to heating oven,dryer,steam generator and so on by stainless steel pipe.
3:Exhaust gas treating catalyst is standard configuration.Effective 320 degree,do not need any auxiliary heating,reducing carbon and hydrogen content in the exhaust gas.
4:Three times fully catalyst burning.No smell.Zero Pollution.

5:Save about 250000USD power consumption charges in 10 years.

Product Description

Limits of wire gauge

0.80 - 2.50mm

Pay-off method

Roll

Number of wire

24(12+12)

Take-up method

Single shaft horizontal take-up

Number of coating tracks

7

Coating method

Felt/Mould

Distance between wires

12.5mm

Supply voltage

3x380V50HZ

Range of wire speed

0 - 40 m/min

Total power

270kw

Take- up spool

PT15-PT25

Daily power consumption

About 700kw.h

Pay-off spool

400 - 500mm

Our Services

Pre-sale training:

In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes:
1)Correct operating mode
2)Correct maintenance way
3)Remove simple problem of our product

After-sale maintenance service is:

1,Both mechanical and electrical parts are provided 2 years limited warranty.
2,Manufacturing experience with more than 20years
We shall work with you as a team and to win as a team.
We provide not only quality products but also best service to you.
