12DB Stainless Steel Fine Wire Drawing Machine For Fine And Medium Range
12DB Stainless Steel Fine Wire Drawing Machine For Fine And Medium Range
12DB Stainless Steel Fine Wire Drawing Machine For Fine And Medium Range
12DB Stainless Steel Fine Wire Drawing Machine For Fine And Medium Range
12DB Stainless Steel Fine Wire Drawing Machine For Fine And Medium Range
12DB Stainless Steel Fine Wire Drawing Machine For Fine And Medium Range
12DB Stainless Steel Fine Wire Drawing Machine For Fine And Medium Range
12DB Stainless Steel Fine Wire Drawing Machine For Fine And Medium Range
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
RBO
Model Number :
12DB
Price :
Negotiation
MOQ :
1 Unit/Units
Certification :
ISO CE
Supply Ability :
10 sets in 60 days
Delivery Time :
60 days
Packaging Details :
wooden pallet or by wooden box
Usage :
Drawing
material :
Stainless steel
inlet :
0.8-1.6mm
oulet :
0.4-1.0mm
Material :
SS wire
Drawing way :
Wet
Drawing dies :
Max 12pcs
Take up :
PND300-500
Motor drawing :
22KW
Motor take up :
11KW
Description

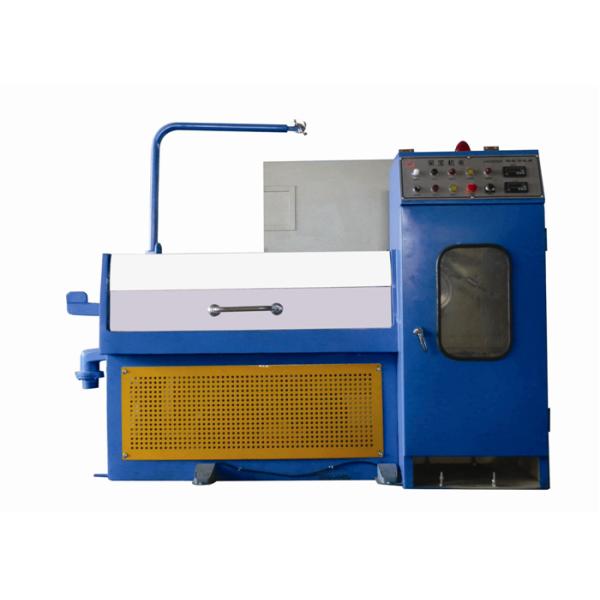

12DB fine wire drawing machine for stainless steel wet wire drawing machine fine and medium range

machine type 12DB

inlet diameter(mm) φ0.8-φ1.6
outlet diameter (mm) φ0.4-φ1.0
drawing line speed(MPM) 300

main motor

 22KW
take-up motor 11KW
annealing power DC. three-section annealing
suitable diameter of spool φ300
revise system PID synchronous spooler
capacity for wire receiving 35-200KG
power source 380V. OEM
brake magnetic brake
machine dimension 1900L×1600W×1500H
machine weight 2200

12DB Stainless Steel Fine Wire Drawing Machine For Fine And Medium Range
