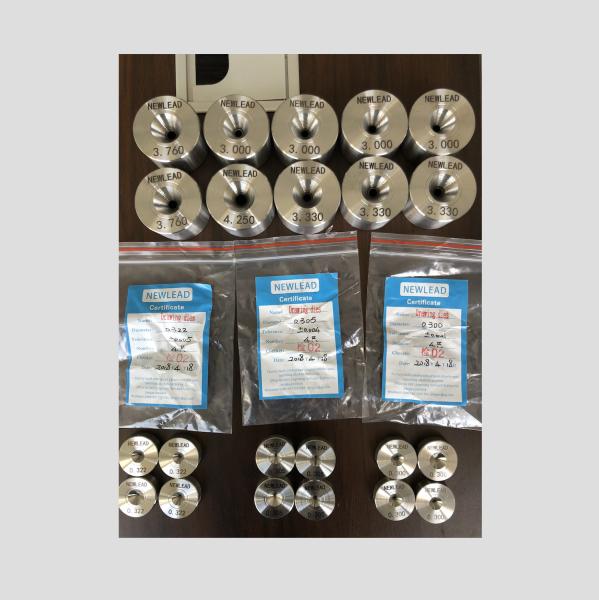

Natural Diamond Dies For Super Fine Wire Drawing Machine 0.00999 To 0.08 Optionally
Natural Diamond Dies For Super Fine Wire Drawing Machine 0.00999 To 0.08 Optionally
Natural Diamond Dies For Super Fine Wire Drawing Machine 0.00999 To 0.08 Optionally
Natural Diamond Dies For Super Fine Wire Drawing Machine 0.00999 To 0.08 Optionally
Natural Diamond Dies For Super Fine Wire Drawing Machine 0.00999 To 0.08 Optionally
Natural Diamond Dies For Super Fine Wire Drawing Machine 0.00999 To 0.08 Optionally
Natural Diamond Dies For Super Fine Wire Drawing Machine 0.00999 To 0.08 Optionally
Natural Diamond Dies For Super Fine Wire Drawing Machine 0.00999 To 0.08 Optionally
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Newlead
Model Number :
NA
Certification :
ISO9001:2008
Price :
Negotiation
MOQ :
1 pcs
Supply Ability :
500 pcs in 25 days
Delivery Time :
20 days
Packaging Details :
carton
Condition :
New
Material :
Natural diamond
Wire diameter :
0.00999-0.08mm
Size :
OD15*6(Design by requirements)
Standard :
GE
Warranty :
1 Years
After-sales Service Provided :
Engineers available to service machinery overseas
Description

Wire drawing natural diamond dies for Super fine wire drawing machine 0.00999 to 0.08 optionally

Natural Diamond Dies For Super Fine Wire Drawing Machine 0.00999 To 0.08 Optionally

150 / 24B small wire drawing machine is my factory has successfully developed a new advanced level of small wire drawing machine, it has a full computer control, break uses a non-contact automatic parking plateful automatic parking, full automatic linear Take-up tension control, four technical parameters displayed directly, especially with color touch screen control display, slide parameters, line speed, closing speed, current weight and the number of meters, the production of class 4 class 3 operation and intuitive single disc output parameters display, and has a memory function, this machine uses drawing, closing line, double conversion without tension rod PLC control, cable synchronous (servo) motor, and from the cable guide wheel, this machine wire-speed high capacity, stepless frequency characteristics.

Number Name Data
1

Inlet wire diameter

 φ0.12mm--φ0.55mm
2 Finished wire diameter φ0.03mm--φ0.12mm
3 Max speed 2200m/min (30--60kg capacity take-up)
4 No of wire drawing dies 24(1+11+11+1)
5

Reduction method

 13% final:12%
6 Drawing mode up and down two Group 4 round tower, dual-mode frame, sliding spray
7 Cone φ150 × 11 section 4 group, capstan φ150,1 group, spray tower pottery wheel
8 Main motor7.5KW 〈Y2-132S2-2 〉three-phase AC
9 Take-up motor4KW 〈Y112M-2〉 three-phase AC
10

Motor (synchronous servo)

80W 200W

〈90TDY115〉 three-phase AC

〈20B30CB〉single-phase AC
11 Drawing light 220V 40W
12 Take-up Light 220V 7W-11W energy-saving lamps
13

Electromagnetic

brake

 24V 30W
14 Speed control small electric control cabinet panel multi-turn position, speed potentiometer

15

 Traversing

ball screw drive, reversing synchronous motor (servo motor), a maximum width

of 260mm
16 Lubrication fan-shaped spray (with line planes)
17 Dimension length × width × height 1180 × 1368 × 1815mm (2000)
18

Gross weight

 1.31T

19

spool

φ300×270×φ215 ×250×φ125

(steel keyboard, balancing requirements)

φ200×216×φ160×180×φ80

(steel keyboard, balancing requirements)
