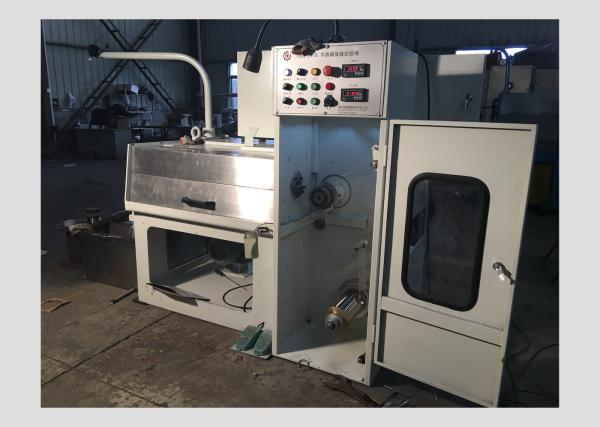

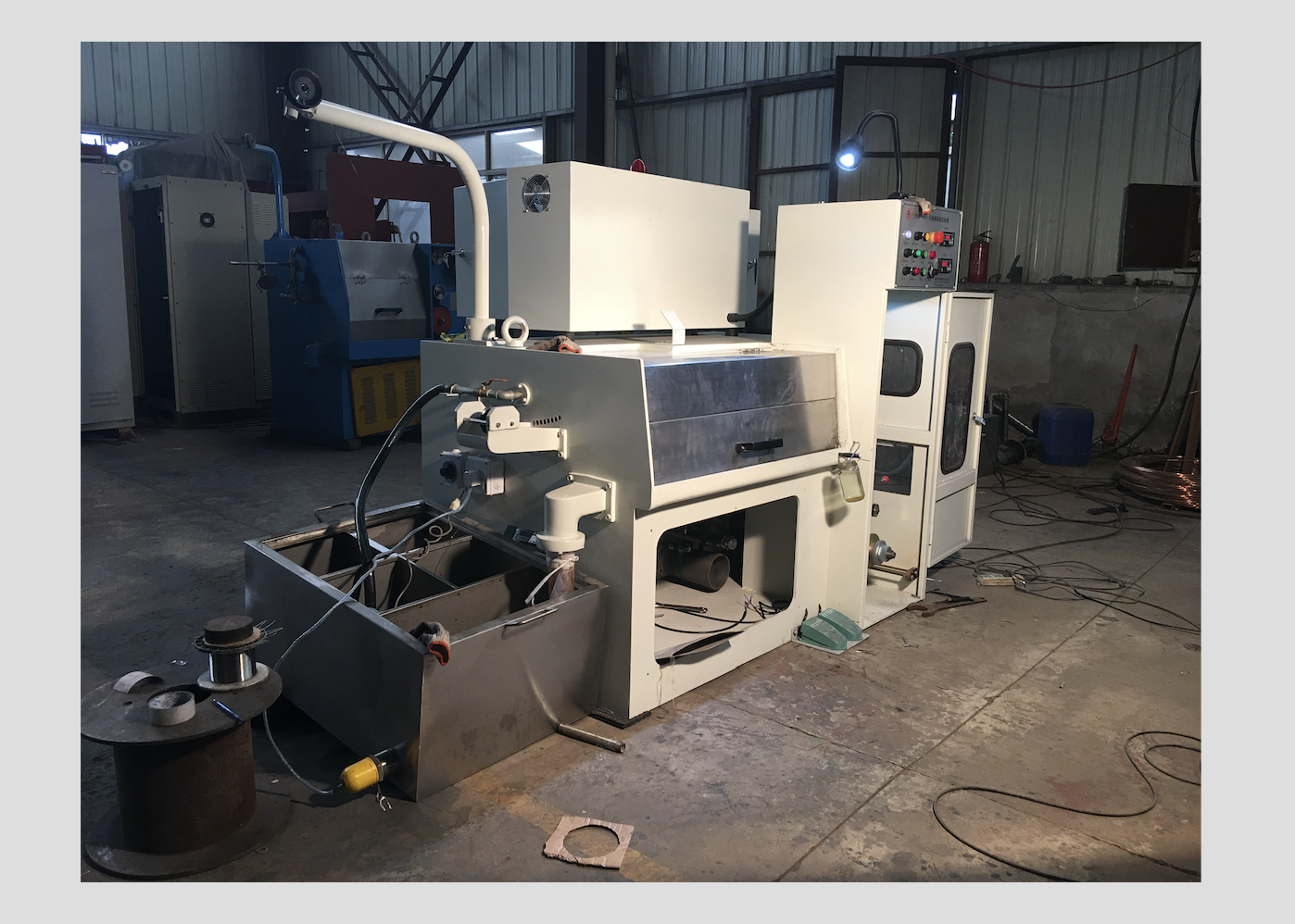

24VBX Wire Drawing Equipment , Stainless Steel High Speed Wire Drawing Machine
24VBX Wire Drawing Equipment , Stainless Steel High Speed Wire Drawing Machine
24VBX Wire Drawing Equipment , Stainless Steel High Speed Wire Drawing Machine
24VBX Wire Drawing Equipment , Stainless Steel High Speed Wire Drawing Machine
24VBX Wire Drawing Equipment , Stainless Steel High Speed Wire Drawing Machine
24VBX Wire Drawing Equipment , Stainless Steel High Speed Wire Drawing Machine
24VBX Wire Drawing Equipment , Stainless Steel High Speed Wire Drawing Machine
24VBX Wire Drawing Equipment , Stainless Steel High Speed Wire Drawing Machine
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
newlead
Model Number :
24VBX
Certification :
CE
Price :
Negotiation
MOQ :
1 Unit/Units
Supply Ability :
1 set in 60 days
Delivery Time :
60 days
Packaging Details :
wooden pallet or by wooden box
Inlet Diameter :
0.09-0.3mm
Outlet Diameter :
0.02-0.07mm
Voltage :
380/415/440/220 optionally
Power(W) :
4KW+2.2KW
Dimension(L*W*H) :
2.0*1.6*1.7M
Weight :
0.8T
Warranty :
1 YEAR
After-sales Service Provided :
Engineers available to service machinery overseas
Description

24VBX Stainless steel SS wire Super fine wire drawing machine for 0.02-0.07mm range

24VBX Wire Drawing Equipment , Stainless Steel High Speed Wire Drawing Machine

machine type 24VB-X
inlet diameter(mm) ￠0.09-￠0.3
outlet diameter(mm) ￠0.02-￠0.07
drawing line speed(MPM) 800
drawing dies No./Max 24
capstan tungsten　
fix speed capstan dia.((mm) ￠130
frame welded by steel plate
transmission type double awls
send-out method hairbrush wire placing
tension control tension tape wheel device
lubrication system of wire drawing spray
suitable diameter of spool (mm) double awls
capacity for wire receiving(kg) 3.5
bobbin loading & unloading type shaft type
power source 380V
brake magneitic brake
machine dimension(mm) 2000L×1300W×1700H
machine weight(kg) 1000
