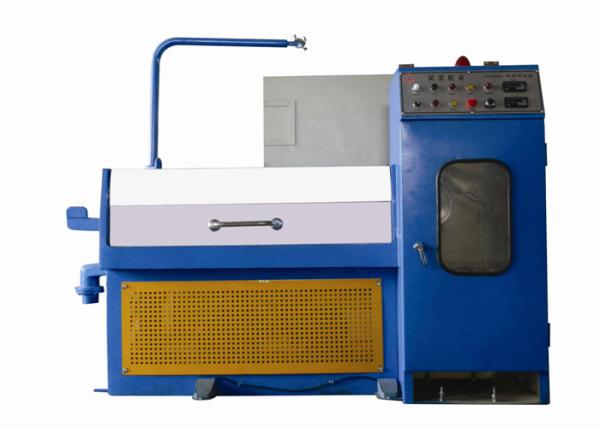

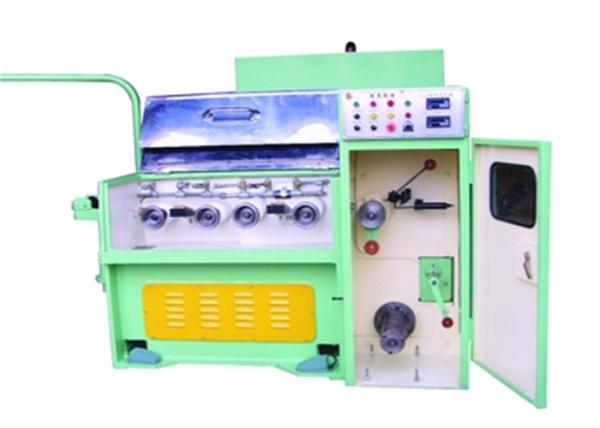

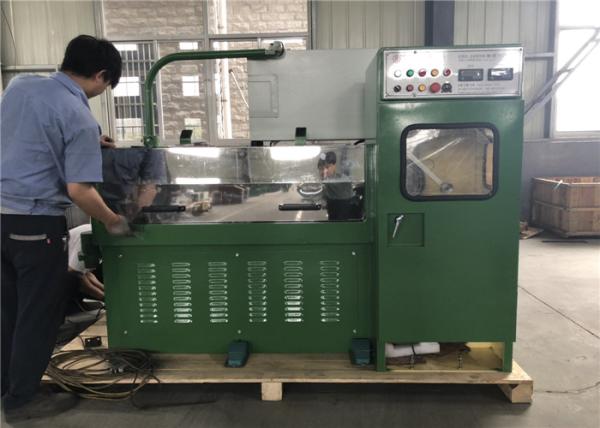

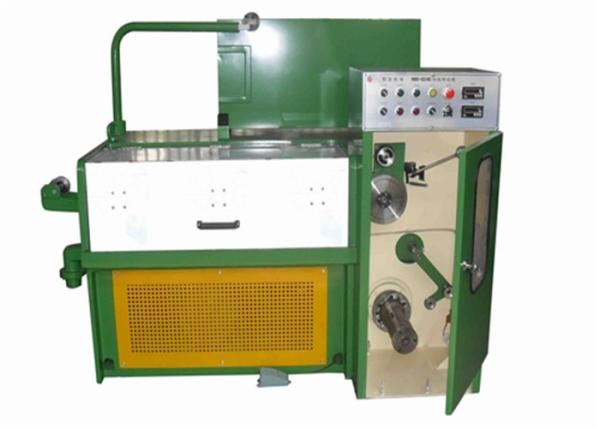

Horiztional Type 24WDS Copper Wire Drawing Machine To Produce Hard Wire 0.1-0.4
Horiztional Type 24WDS Copper Wire Drawing Machine To Produce Hard Wire 0.1-0.4
Horiztional Type 24WDS Copper Wire Drawing Machine To Produce Hard Wire 0.1-0.4
Horiztional Type 24WDS Copper Wire Drawing Machine To Produce Hard Wire 0.1-0.4
Horiztional Type 24WDS Copper Wire Drawing Machine To Produce Hard Wire 0.1-0.4
Horiztional Type 24WDS Copper Wire Drawing Machine To Produce Hard Wire 0.1-0.4
Horiztional Type 24WDS Copper Wire Drawing Machine To Produce Hard Wire 0.1-0.4
Horiztional Type 24WDS Copper Wire Drawing Machine To Produce Hard Wire 0.1-0.4
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Newlead
Model Number :
24WDS
Certification :
CE
Price :
Negotiation | 1 Unit/Units copper wire drawing machine (Min. Order)
MOQ :
1 Unit/Units
Supply Ability :
60 sets in 90 days
Delivery Time :
60 days
Packaging Details :
wooden pallet or by wooden box
Condition :
New
Inlet Diameter :
0.8-1.4
Outlet Diameter :
0.1-0.4
Voltage :
380/415/440/220 Options
Power(W) :
15KW+4KW
Dimension(L*W*H) :
2.2*1.6*1.7M
Weight :
2.2T
Warranty :
2 YEAR
After-sales Service Provided :
Engineers available to service machinery overseas
Description

Horiztional type 24WDS High speed copper wire drawing machine to produce Hard wire 0.1-0.4

Model

B-24WDS

Inlet diameter

φ1.0-φ1.4

Outlet diameter

φ0.1-φ0.4

Drawing line speed

2500

No.of dies

24

Slip ratio of m/c

13%

Fix speed capstan slip ratio

8%

Capstan

Capstan dia.(max.)

φ190.6

Fix speed capstan dia.

φ160

Frame

Main motor

15KW-6P Three phase inductor motor

Inverter control

Dual inverter control

Transmission type

Flat belt

Horiztional Type 24WDS Copper Wire Drawing Machine To Produce Hard Wire 0.1-0.4
