Specifications
Brand Name :
NEWLEAD
Model Number :
DIN200/1250
Price :
Nnegotiation
MOQ :
1 Unit/Units
Certification :
ISO
Place of Origin :
China
Supply Ability :
100PCS IN 45 DAYS
Delivery Time :
45 DAYS
Packaging Details :
Wooden pallet
Usage :
Twist
Material :
Steel
Standard :
GB4004-83,JB/T8997.4-1999,DIN46395 /DIN46397
Dynamically balanced :
Speed from 25m/s to 50m/s
Coating :
Zinc coating
Painting :
Color Yellow
Description

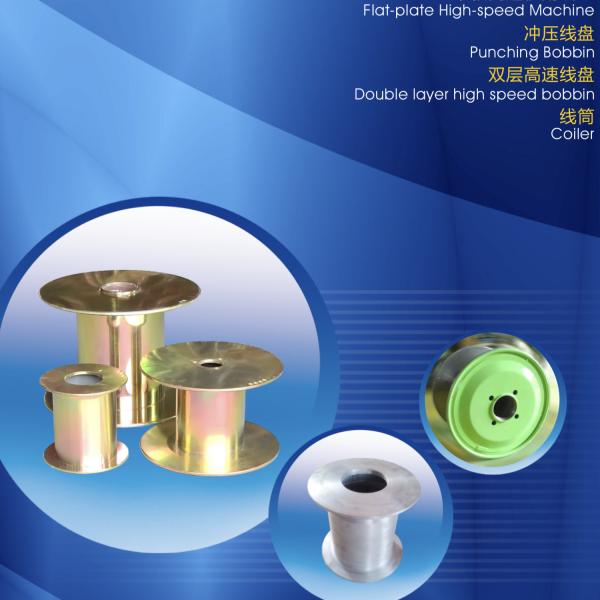

DIN200 to DIN1250 MS Metal bobbin for Wire Bunching machine GB4004-83,JB/T8997.4-1999,DIN46395 /DIN46397 standard



Steel bobbin with massive flanges,
barrel.bore and hub.Dimension
either according to customer's specifications or
GB4004-83,JB/T8997.4-1999,DIN46395 /DIN46397 standard.
Dynamically balanced for speed from 25m/s to 50m/s.
For cable,ferrous and non-ferrous wire.
For drawing,stranding and bunching machines.

DIN200 DIN1250 MS Metal Bobbin Wire Bunching Machine GB4004-83 JB/T8997.4-1999 DIN46395/DIN46397 Standard
DIN200 DIN1250 MS Metal Bobbin Wire Bunching Machine GB4004-83 JB/T8997.4-1999 DIN46395/DIN46397 Standard

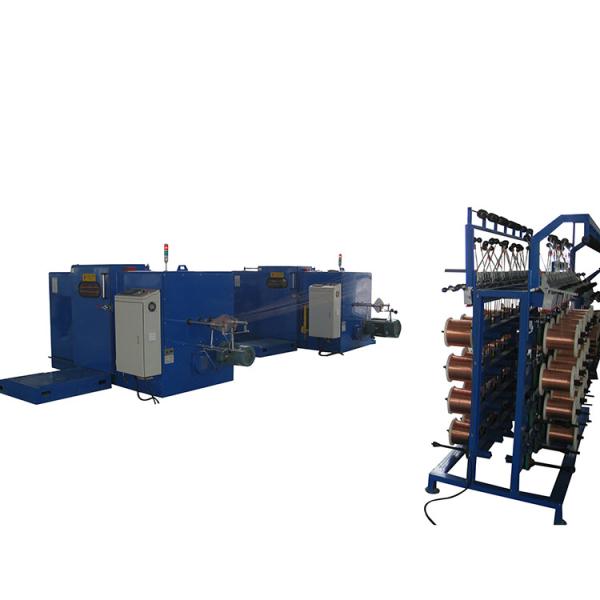

Item 200 300 400 500 650 800 1250
Voltage 380V (or according to customer’s requirement)
Power 5HP motor + 5HP inverter 7.5HP motor+7.5HP inverters 15HP motor+15HP inverter
Twisting distance(mm) 0.51-6.56

1.52-16.73
customized

3.99-30.76
customized

4.96-39.94
customized

11.00-60.38
customized

21.52-145.66
customized

19.45-180.24
customized
Twisting direction Freedom of choice to left or right
Take-up bobbin Ф70-Ф200 Ф200-Ф300 Ф300-Ф400 Ф400-Ф500 Ф400-Ф650 Ф630-Ф800 Ф630-Ф1000
Max speed(RPM) 6000(or 5000) 4000(or3000) 3500(or3000) 3000(or2200) 2500(or1800) 1500(or1200) 1200(or1000)
Stranding Suitable for above 7 extremely fine copper wire stranding Suitable for above 7 wire stranding: copper/silver/alloy/enameled/copper-clad aluminum/copper-clad steel/wick wire
Stranding sec. Area(mm2) 0.00178-0.086 0.0137-0.418 0.035-2.388 0.035-3.022 0.08-5.5 0.5-12.4 0.5-17.8
Tension control Magnetic particle automatic tracking Manual adjustment or magnetic particle auto tracking
Traversing unit Feed rod, traversing/distance adjustable
Brake Electromagnetic brake
Cut wire control In or out cut wire auto brake
Stranding OD(mm) 0.018-0.035 0.05-0.12 0.08-0.4 0.08-0.45 0.12-1.0 0.3-1.5 0.5-2.14
Up and down axis Manual take-up Manual, electric oil-pressure or mechanical auto up and down
Noise level(db) About 78db About 78db About 75db About 78db About 78db About 78db About 78db
Paint Apple green (or according to customer’s requirement)
Dimension 2100Lx800Wx900xH 2300Lx900Wx1050xH 2500Lx1200Wx1250xH 2600Lx1300Wx1300xH 3200Lx1300Wx1500xH 3700Lx17000Wx1800xH 4100Lx2000Wx2100xH
Oiling Import auto oiling system, auto enforce oiling Manual or import auto oiling system, auto enforce oiling
