Wire Buncher Machine With Fine Wire Payoff , Cable Bunching Machine PC250 To PND300 Bobbin
Wire Buncher Machine With Fine Wire Payoff , Cable Bunching Machine PC250 To PND300 Bobbin
Wire Buncher Machine With Fine Wire Payoff , Cable Bunching Machine PC250 To PND300 Bobbin
Wire Buncher Machine With Fine Wire Payoff , Cable Bunching Machine PC250 To PND300 Bobbin
Wire Buncher Machine With Fine Wire Payoff , Cable Bunching Machine PC250 To PND300 Bobbin
Wire Buncher Machine With Fine Wire Payoff , Cable Bunching Machine PC250 To PND300 Bobbin
Wire Buncher Machine With Fine Wire Payoff , Cable Bunching Machine PC250 To PND300 Bobbin
Wire Buncher Machine With Fine Wire Payoff , Cable Bunching Machine PC250 To PND300 Bobbin
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Newlead
Model Number :
250-300
Price :
Negotiation
MOQ :
1 Unit/Units
Certification :
ISO CE
Supply Ability :
300 lines in 60 days
Delivery Time :
45 days
Packaging Details :
wooden pallet or by wooden box
Usage :
Wire payoff
Spool :
PC250
Bobbin :
PND300
Bunching 1 :
500DTB
Bunching :
630DTB
Wire Dia :
0.8-0.6mm
Description

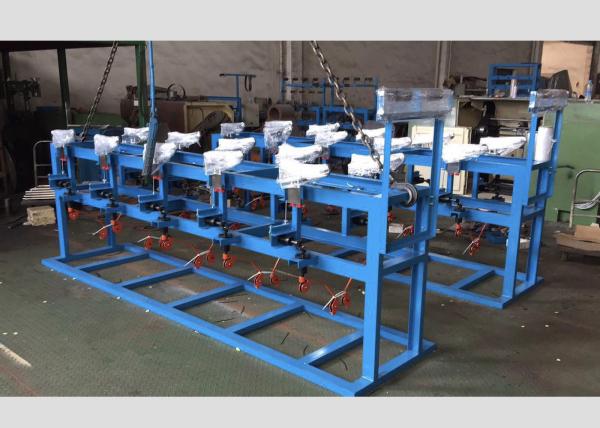

Fine wire payoff for wire Bunching machine PC250 to PND300 Bobbin

1.PC200-250

Wire Buncher Machine With Fine Wire Payoff , Cable Bunching Machine PC250 To PND300 Bobbin

2.PND300-PND400 Metal bobbin

Wire Buncher Machine With Fine Wire Payoff , Cable Bunching Machine PC250 To PND300 Bobbin

Wire Buncher Machine With Fine Wire Payoff , Cable Bunching Machine PC250 To PND300 Bobbin

Item 500 650
Voltage 380V (or according to customer’s requirement)
Power 7.5HP motor+7.5HP inverters 15HP motor+15HP inverter
Twisting distance(mm)

4.96-39.94

customized

11.00-60.38

customized

Twisting direction Freedom of choice to left or right
Take-up bobbin Ф400-Ф500 Ф400-Ф650
Max speed(RPM) 3000(or2200) 2500(or1800)
Stranding Suitable for above 7 wire stranding: copper/silver/alloy/enameled/copper-clad aluminum/copper-clad steel/wick wire
Stranding sec. Area(mm2) 0.035-3.022 0.08-5.5
Tension control Manual adjustment or magnetic particle auto tracking
Traversing unit Feed rod, traversing/distance adjustable
Brake Electromagnetic brake
Cut wire control In or out cut wire auto brake
Stranding OD(mm) 0.08-0.45 0.12-1.0
Up and down axis Manual, electric oil-pressure or mechanical auto up and down
Noise level(db) About 78db About 78db
Paint Apple green (or according to customer’s requirement)
Dimension 2600Lx1300Wx1300xH 3200Lx1300Wx1500xH
Oiling Manual or import auto oiling system, auto enforce oiling
