Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending
Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending
Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending
Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending
Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending
Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending
Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending
Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
NEWLEAD
Model Number :
13DT
Price :
Negotiation | 1 Unit/Units drawing machine (Min. Order)
MOQ :
1 Unit/Units
Certification :
ISO CE
Supply Ability :
1 set 180 days
Delivery Time :
180 days
Packaging Details :
wooden pallet or by wooden box
Usage :
Drawing continuous resistance annealer
material 1 :
8mm*2
Max drafts :
13
Max speed :
1800MPM
Capstan :
450
Motor :
320KW
Description

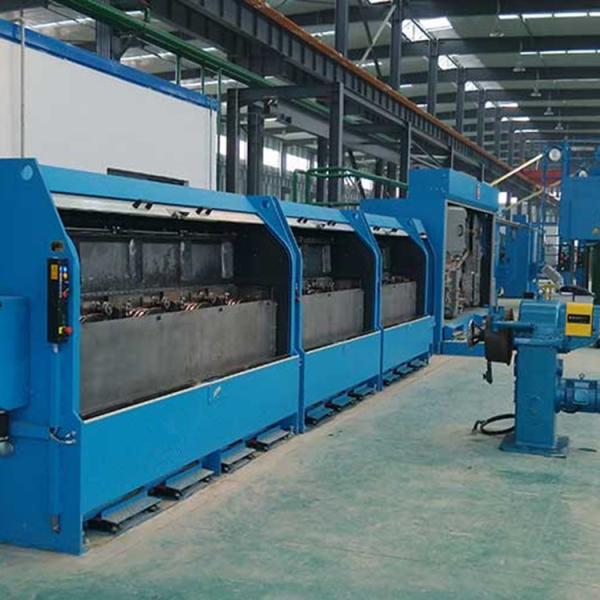

Double wires copper rod breakdown machine copper wire drawing machine 2 lines

Design:

  • unidirectional wire path with no alternating bending (even with the drawing dies omitted)

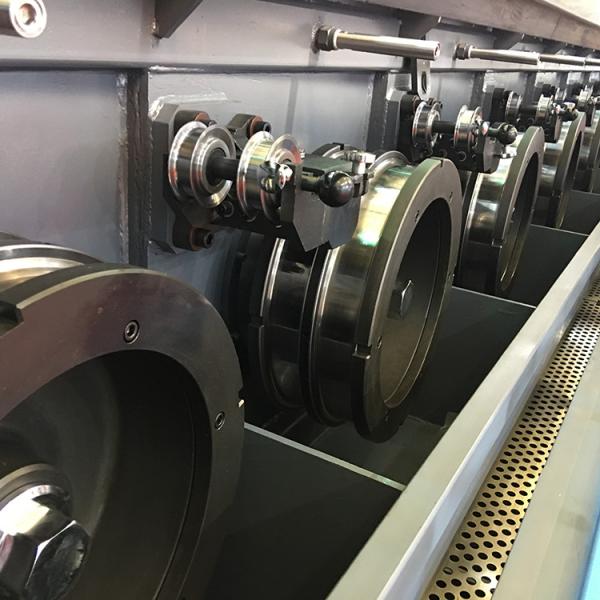

  • drawing capstan diameter matched to the wire diameter

  • motor-driven drawing section cover for easy operation

  • extremely smooth operation and uniform load transmission by helical precision gear

    Increase in quality:

    • high wire surface quality due to an ideal wire path (2° inclination of gears/drawing capstans)

    Increase in productivity:

  • high output

  • reduced downtime via multi-motor drive technology when changing the wire diameter

Name

450-13D13*2 450-11D11*2 450-9D9*2
Inlet(mm) 2×ø8.00 1×ø10.00
Outlet(mm) 2×(ø1.20~ø3.50)
1×(ø1.20~ø4.50)		 2×(ø1.60~ø3.50)
1×(ø1.60~ø4.50)		 2×(ø2.00~ø3.50)
1×(ø2.00~ø4.50)
(m/min) 1500 1500 1200
Dies Number 13 11 9
Dies Dia(mm) 50 50 50
Reduction(mm) 8%~46% 8%~46% 8%~46%
Capstan(mm) ø450 ø450 ø450
Last capstan(kW) ø450 ø450 ø450
Motor(kW) DC510 DC510 DC400
Last capstan motor(kW) DC90 DC90 DC90

Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating BendingDouble Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending

Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending

Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating BendingDouble Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending

Double Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating BendingDouble Wires Copper Wire Drawing Machine Sliding Heavy Duty With No Alternating Bending
