55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line
55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line
55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line
55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line
55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line
55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line
Specifications
Brand Name :
yuyang
Model Number :
90
Certification :
CE, CCC, CE, ISO
Place of Origin :
dongguan, china
MOQ :
1 set
Price :
60,000$-85,000$
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
40 days
Packaging Details :
one set 20 feet container
motor :
siemens
power :
55kw
converter :
yaskawa
inverter :
yaskawa
pay off :
1800mm
speed :
150m/min(LSZH)
cable :
Outdoor optic fiber
take up :
1800mm
Temperature :
RKC
Caterpillar :
1250kg
Extruding capacity (max) :
280kg/h
PLC :
siemens
Barrel :
90mm
Description

Main features of machine

1. The machine is for outdoor optic fiber cable, material is PE, LSZH.

2. Screw Diameter: the screw diameter is 90 mm.

3. Extrusion Capacity (when the head is turned on): Φ90 Machine=max280 kg/h

4. Production Speed: 150 m/min

5. Length of Production Line: 30 m

Application

1.1 Optic-cable inner sheathing

1.2 Optic-Cable outer sheathing

Extruding materials: LDPE, MDPE, HDPE and so on

2. Basic Line Configuration

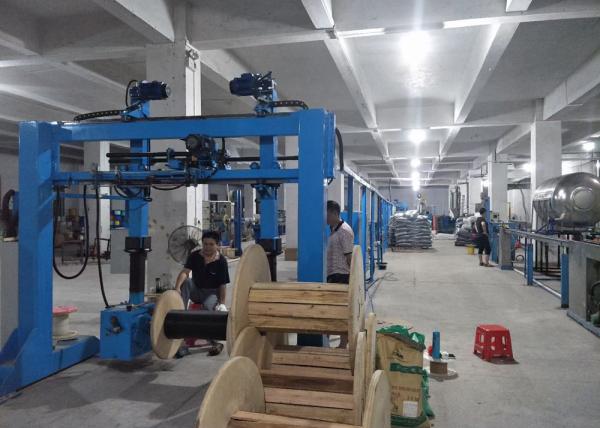

2.1 Ф1800 reel suspended driven pay-off 1

2.2 Down dancing wheel applicator tension dancer 1

2.3 Steel wire payoff and guiding device

(including steel wire straightening device) 2

2.4 Steel-Aluminum tape pay-off 2

2.5 On-line seam welder 1

2.6 Steel-Aluminum tape accumulator 1

2.7 Steel-Aluminum tape corrugators 1

2.8 Cable filling device 1

2.9 Steel-Aluminum longitudinal tape applicator

and forming device 1

2.10 Adhesive-bonded fabric tape pay-off 1

2.11 Extruder SJ90 and cross head 35/45 1

2.12 Vacuum pump 1

2.13 200kg drawing conveyer and 400kg hopper compound dryer 1

2.14 Hot-water tank and 4m adjustable hot-water trough 1

2.15 24m stainless steel cooling-water trough 1

2.16 Blow dryer device 1

2.17 Diameter control device 1

2.18 Length number printer 1

2.19 Caterpillar 1250kg 1

2.20 Take-up tension synchronizer 1

2.21 Suspended take-up device Ф1800 1

2.22 Electrical control system 1

55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line

55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line

55kw 280kg/h Optical Fiber Cable Secondary Coating PE Extruder Machine Production Line
