120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Yihan
Model Number :
YH-545
Usage :
WINDING
Name :
Winding Machine
Power :
AC220V 50HZ /60HZ
Power Rating :
200W
Strapping Diameter :
18-45mm
Binding length :
120-200mm
Around the circle diameter :
50-200mm
Winding pitch :
50-200mm
Weight :
42kg
Size :
485*435*340
Warranty :
One Year
Packaging Details :
Wooden Package
Price :
$1,260.00/sets 1-2 sets
MOQ :
1 set
Description

120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding

Automatic coiling tying wire winding machine binding machinene

FEATURE:

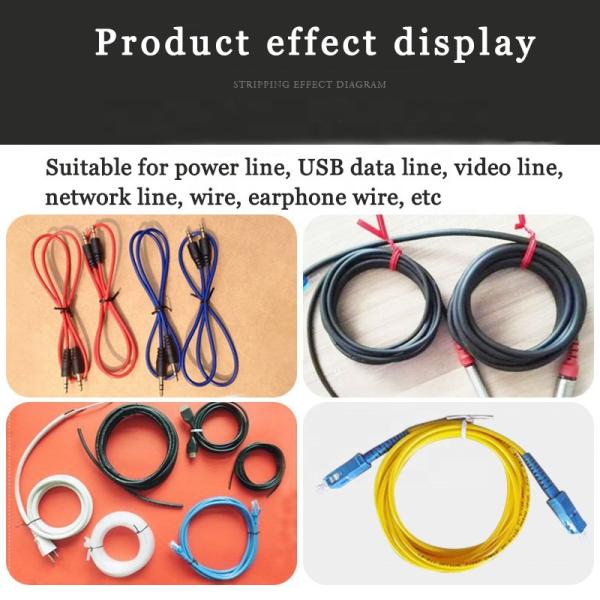

1.This machine is suitable for AC power cord, DC power cord,USB cable, sheathed cable andHDMI high-definition cable and other types of transmission lines using encapsulated core twist tied into bundle, can also be used to tape and other sealing plastic bag cores.

2.This machine can reduce employee fatigue strength, improve working efficiency, save cable ties and so on.

3.Employees simply put the wires on the port it will automatically winding,then putting these wires around the Norse mouth,the machine will automatically norse.The machine can set binding wire length and number of laps,count the yield .

4.The machine adopts PLC control program , text display for parameter setting, easy to operate.Adjusting space, replacement of fixtures is very convenient, ("8" -shaped tying, tying round universal,large range of bundled,widely used.)

Model YH-545 Dimension 485*435*340mm
Suitable for cable tie length 120-200mm Around the circle diameter 50-200mm
Strapping Diameter 18-45mm Winding speed 1-13/second
Power supply AC220V50/60HZ Binding speed 0.6seconds/t
Power 200W Weight 42KG

120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding

Product Show

120-200mm Binding Length Wire Tying Machine YH-545 for Automatic Coiling and Binding
