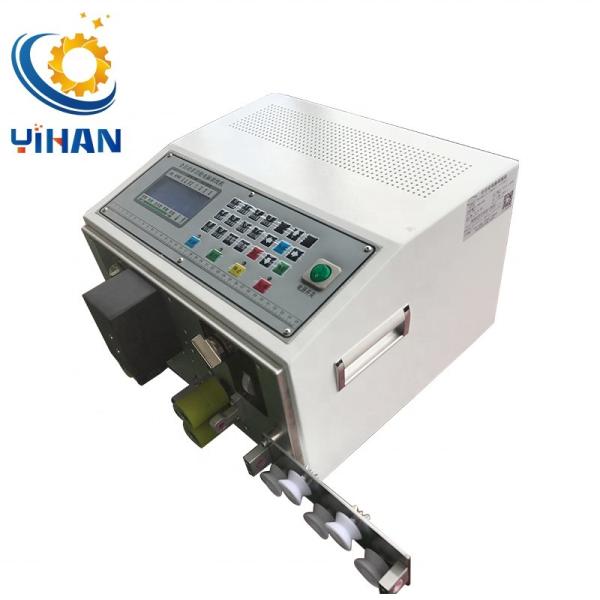

High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Yihan
Model Number :
YH-825
Usage :
Multifunctional, Stripping and cutting
Product name :
wires cutting and stripping machine
Application :
cutting and stripping
Stripping length :
Head 0 - 25mm Tail 0-60mm
Cutting Length :
1mm-99999.99mm
Stripping range :
0.1-2.5 mm2 BVR Multi Softlines
Wire outer diameter :
1.5-3.5MM
Size :
400*300*330
Weight :
29KG
After-sales Service Provided :
Online Support
Packaging Details :
Wooden package
Price :
$600.00/sets 1-2 sets
MOQ :
1 set
Description

High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires

YH-825 (new style) automatic high quality high speed wire cutting and stripping machine

Features:

  • 1.The machine uses the latest 32 intelligent control system, Chinese and English switching liquid crystal display,can store hundreds of pieces of information, called at any time, fast efficiency.

  • 2.Compatible with the general features of 330# wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.

  • 3.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping, twisting function once completed,can instantly transform wire specifications and dimensions,it’s very economic.

  • 4.The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.

High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires

Product Description
Product Name Automatic wires cutting stripping machine
Model YH-825
Dimension 400*300*330mm
Weight 29KG
Display method Chinese or English interface display
Power supply AC220/250V/50/60HZ
Capacity 120-220W
Cutting length 1mm-99999mm
Cutting Tolerance Adjustable
Peeling length 1.0mm-999.9mm(According to the wire)
Applicable wire core area 0.1-2.5mm2(AWG14#-AWG32#)
Productivity 3000-6000pcs/h(according to the cutting length)
Tool Material Tungsten steel / white steel
Drive mode Four simultaneously drive
Stripping Mode Long wire/ short wire /Multi-stripping / multi stripping

High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires

Product Show

High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires

Company profile

High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires High Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM WiresHigh Precision YH-825 Automatic Wire Cutting and Stripping Machine for 1.5-3.5MM Wires
