Anti Aging 4SP 4SH 3/4 Inch Braided Hydraulic Hose , Hydraulic Hose For Power Steering
Anti Aging 4SP 4SH 3/4 Inch Braided Hydraulic Hose , Hydraulic Hose For Power Steering
Specifications
Brand Name :
Yeli
Place of Origin :
China
MOQ :
360Meter
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
80,000 meter per month
Delivery Time :
20-30 days
Packaging Details :
wrapped with yellow/white woven belt or plastic firm
Reinforcement :
Four layers of alternating direction steel wire spiral
Material :
Synthetic Rubber
Color :
Black
Size :
all size
Cover :
One layer of oil and weather resistant synthetic rubber
Oem service :
Accept
Item :
4 Steel Wire Reinforcement Hydraulic Hose 4sh factory price
Description

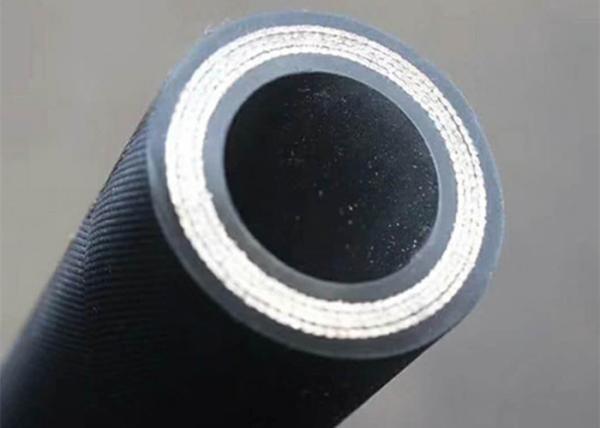

Anti Aging Heavy Construction Machinery Industrial Synthetic Hydraulic Rubber Hose 4SP 4SH 3/4 Inch


Tube : Oil resistant synthetic rubber
Reinforcement : four high tensile steel wire spiral layers
Cover : abrasion and weather resistant synthetic rubber
Temperature range : -40 ℃ to +100 ℃

DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm mm MPa psi MPa psi mm kg/m metres
19 3/4 19.0 28.4 32.0 42.0 6000 168.0 24000 280 1.61 20 to 40
25 1 25.4 35.2 38.6 38.0 5500 152.0 22000 340 2.00 20 to 40
32 1 1/4 31.8 41.9 45.8 32.5 4700 130.0 18800 460 2.64 20 to 40
38 1 1/2 38.1 48.8 53.3 29.0 4200 116.0 16800 560 3.36 20 to 40
51 2 50.8 63.2 68.1 25.0 3600 100.0 14400 700 4.98 20 to 40

Anti Aging 4SP 4SH 3/4 Inch Braided Hydraulic Hose , Hydraulic Hose For Power Steering

Application of hydraulic rubber hose pipe:


The hose is used for synthetic mining of hydraulic hold and transport pressure for hydraulic system,transport high pressure liquid and hydraulic conveying for engineering project,over-loading transportion,metallurgy forging and pressing,minigng equipment,ships ,plastic-filling machines,farm machines ,all kinds of machines and the mechaniztion of industrial sectors, automtion system .the medium which it transports is hydraulic oil,lubricat and air...

Why us ?

1. We consistent good quality with reasonable price.
2. Stable production capacity(Our output each month can be 800,000 meters for hoses.)
3. Delivery in time.
4. Good quality control.
