OEM Service SAE J517 R4 1 Inch Fuel Delivery Hose
OEM Service SAE J517 R4 1 Inch Fuel Delivery Hose
Specifications
Brand Name :
Yeli
Model Number :
HOGR4
Place of Origin :
China
MOQ :
360Meter
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
80,000 meter per month
Delivery Time :
15-20 working days
Packaging Details :
wrapped with yellow/white woven belt or plastic firm
Business type :
manufacturer
Sample :
available
Service :
OEM
Type :
Soft Hose
Description

SAE J517 R4 Oil Rubber Hose Water Hydraulic Hose 1 Inch Rubber Hose

performance: Resistance to vacuum.New compact SAE100 R4 architecture

Main applications: Suction lines,return lines

Continuous service temperature range: -40°F/+212°F (-40℃/+100℃)

Recommended fluids: Mineral oils,vegetable and rape seed oils,glycol and polyglycol based oils,synthetic ester based oila,oil in aqueous emulsion,water

Tube: Oil resistant synthetic rubber

Reinforcement: Two textile reinforcements with steel helical body wire

Cover: Environment resistant synthetic rubber

Applicable specs: SAE 100 R4

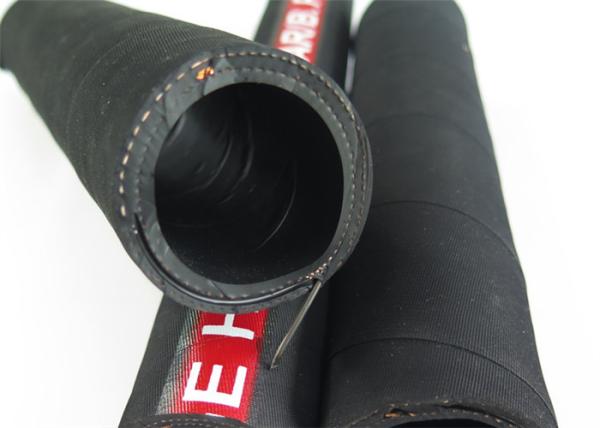

OEM Service SAE J517 R4 1 Inch Fuel Delivery Hose

Construction of Rubber Oil Hose

-Tube: NBR synthetic rubber, black color.

-Reinforcement:High tensile synthetic yarn, single/double synthetic yarn braided or spiraled.

-Cover compound :NR/SBR synthetic rubber, black, red and green in colors etc.

2.Constant operation:-30℃ - +80℃

3. Color available: black, grey, blue, yellow, red, etc

I.D. O.D. W.P. B.P. Min.Bend Radius Weight Length
inch mm mm Bar psi Bar psi mm kg/m m
3/4 19 29.4 21 300 84 1220 125 0.68 60
1 25 35.5 17 250 68 1000 150 0.85 60
1 1/4 32 43.4 14 200 56 800 200 1.14 60
1 1/2 38 49.5 10.5 150 42 600 255 1.33 60
2 51 63 7 100 28 410 300 1.82 60
2 1/2 63 76.6 4 62 16 250 355 2.42 60
3 76 92 4 56 16 230 460 3.35 60
3 1/2 89 106 3 45 12 180 530 3.92 60
4 102 118.2 2.5 40 10 140 610 4.60 60
