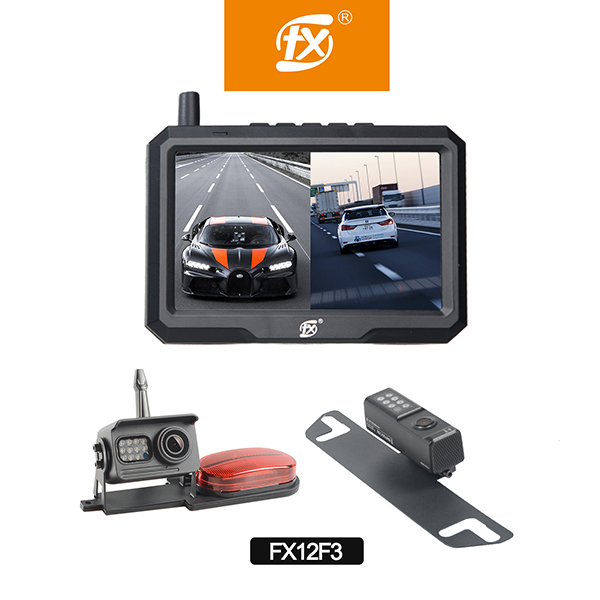

Metal Material Wireless HD Reverse Camera 5 Inch IPS Color Screen
Metal Material Wireless HD Reverse Camera 5 Inch IPS Color Screen
Metal Material Wireless HD Reverse Camera 5 Inch IPS Color Screen
Metal Material Wireless HD Reverse Camera 5 Inch IPS Color Screen
Metal Material Wireless HD Reverse Camera 5 Inch IPS Color Screen
Metal Material Wireless HD Reverse Camera 5 Inch IPS Color Screen
Specifications
Brand Name :
TX
Model Number :
FX12F3
Certification :
FCC CE ROHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
1000pcs/week
Delivery Time :
5-8 days
Packaging Details :
color box
Screen Size :
5 Inch color Screen
Material :
Metal
Resolution :
800*480
Brightness :
1000cd/M2
Image pixel :
720P
Operating Temperature :
-20℃--70℃，RH85% MAX
Storage Temperature :
-30℃--80℃,RH85% MAX
Minimum Illumination :
0Lux
Description

Metal Material Wireless HD Reverse Camera 5 Inch IPS Color Screen

Specification:

Monitor

LCD Size: 5 Inch Color Monitor
Resolution: 800 x 3(RGB)x 480
Brightness: 1000 cd/m
TV System: PAL/NTSC
Transmitted Power: 24±1dBm@Max
Operating Frequency: 2.4GHz~2.4835GHz
RX Sensitivity -85dBm@10%PER
Spread Spectrum FHSS
Video Compression H.264
Latency 160ms
Transmitting Distance 984ft line of sight
TF Card Min.8G Max.128G
Power Supply: DC+12V~+24V
Operating temperature: -20℃~+70℃
Storage temperature: -30℃~+80℃
Size 132.5x89.5x22.5mm


Camera (FX303T)

Viewing Angle 120°
Image Device 1/2.7" COMS (HD)
IR Control SMART IR-CUT 650nm Day/850nm Night Auto
Transmission Distance(barrier free) 1650ft
Night Vision Distance 33ft
Latency less than 200ms
Power Supply DC+12V
Power Consumption 150mA/12V
Transmission Power 26dB
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Weight 430g
Spread Spectrum FHSS
Minimum Illumination 0Lux


Camera(FX922T)

Image Sensor 1/2.7’’COMS HD
Viewing Angle 160°
AGC Auto
BLC Auto
White Balance Auto
Operation Frequency 2.4GHz--2.4835GHz
Transmission Distance(barrier free) 300m(984ft)
Transmission Power 23dB
Latency Less 200ms
Spread Spectrum FHSS
RF Bit Rate 12Mbps
Minimum Illumination 0Lux
Night vision distance 4-5m
Power supply DC 10-18V
Waterproof rating IP69K
Size 85x28x27.5mm
Weight 90g


Features:

1. First item 5 Inch 720P Dual-channel digital high-definition wireless DVR set
2. High definition of the monitor,it can capture the ultra-clear image behind the vehicle,espacially in rainy day.Resolution is 800*480 and the brightness is 1000cd/M.
3. Camera With 6 highlight LED Warning Light and With silicone mold, can replace the original RV Warning light directly.
4. Support front and rear DVR recording on the same screen simultaneously.
5. Highly recommend to install on front and back side of vehicle or side door of RV.
6. Adjustable reversing line.help backing up properly.
7. Product mix kit:FX509R+FX922T+FX303T,mainly design for RV,Trailer RV.

Compatibility with All Cars:

Works with all cars with an DC 12V power input. Perfect for vehicles length over 33 feet under 65ft, such as RV, Fifth Wheel, Travel Trailer, Motor home and Camper, etc.
