Specifications
Brand Name :
TX
Model Number :
FX11L
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
1000pcs/week
Delivery Time :
5-8 days
Packaging Details :
color box
Model :
FX303T+FX909R
Screen Size :
7 Inch
Video Format :
MP4
Lens Angle :
120°
Whatproof Level :
IP69K
Night Vision Distance :
8-10m
Channel :
4 channels Max
Power Supply :
DC 12-24V
Built-in DVR :
SD cards 128G Max
Brightness :
900 cd/m²
Description

OEM ODM 7 Inch 1080P HD Reverse Camera With DVR Monitor System

7 Inch 1080P With DVR Wireles Backup Camera Monitor System For RV/Van/Motorhome

Features:
1. This Rear View Mirror Monitor show high definition image,help to provide you good view of back/side of your car when driving, reversing, parking.
2. When you reverse your car, scenes will be automatically cut off at the backup camera. It built-in digital wireless receiver.
3. Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle
4. Easy installation and operation.

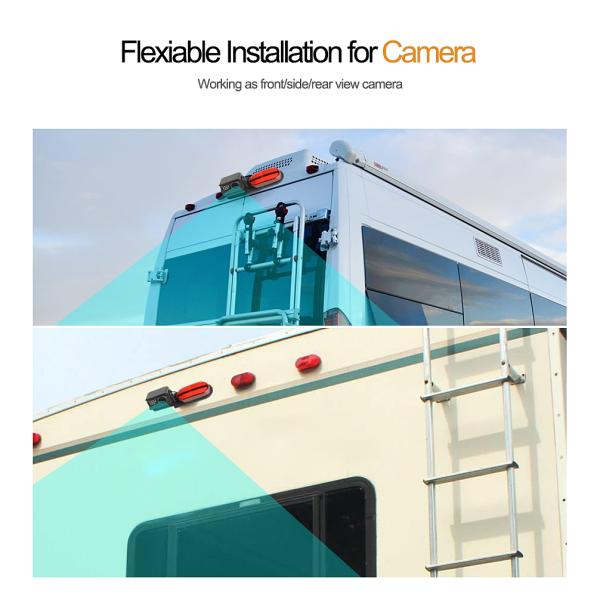

5. Applicable the variety of vehicles: truck, RV, mini van etc.

6. Camera is with IP69K waterproof ,dustproof and shockproof design.
7. Camera is with 1080p shooting. can capture a wide 120 degree of backside from RV.

8. Camera is Using a 120-degree full glass wide-angle lens,200W(1080P) Pixel Photosensitive element,make image quality more high definition.
9. Monitor Image quality, no light, no flash.

10. Camera with 6 Red LEDs, easy to install, can simply replace the existing rear marker light for power connecting.

Specification:

Monitor

Screen Size 7 inch
Video Recording Yes
Resolution 1024 x 3(RGB) x 600
SD Card Max.128G
Video Format MP4
Adjustable Parking Line Yes
Brightness 900 cd/m²
Channel 4 channels Max
Split Mode Yes
Power Supply DC 12-24V
Outer Dimension 184mm(W)X129mm(H)X26mm(D)


Camera

Viewing Angle 120°
Image Device 1/2.7" COMS (HD)
IR Control SMART IR-CUT 650nm Day/850nm Night Auto
Waterproof level IP69k
Transmission Distance(barrier free) 1650ft
Night Vision Distance 33ft
Latency less than 200ms
Power Supply DC+12V
Power Consumption 150mA/12V
Transmission Power 26dB
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Weight 430g
Spread Spectrum FHSS
Minimum Illumination 0Lux


Service:

1. Efficient after-sales service,provide solutions for your problems within 24 hours;
2. OEM&ODM:we can help you produce all customized products;
3. Protection of your design and all your private information;
4. Quality stability,we can provide certificates of products such as CE,FCC,ROHS;
5. Convenient payment methods: Paypal,T/T;
OEM ODM 7 Inch 1080P HD Reverse Camera With DVR Monitor SystemOEM ODM 7 Inch 1080P HD Reverse Camera With DVR Monitor System
OEM ODM 7 Inch 1080P HD Reverse Camera With DVR Monitor System
What's in the box:

1. Center mount bracket x1
2. Rear view mirror back clip bracket x1
3. U-shape Center bracket x1
4. Fan-shaped bracket x1
5. Car charger x1
6. Shading cover x1
7. Fan-shaped center bracket base x1
8. Fan-shaped center bracket base sticker x1
9. Crimping cap x1
10. Angle adjustment screws x4
11. Bracket screws x15

12. User Manual x1
