1080P 5 Inch IPS Screen Wireless Backup Cameras 2.4G Transmitter
Wireless 2.4G Rearview Black Color Camera 5 Inch IPS Screen 1080P Transmitter

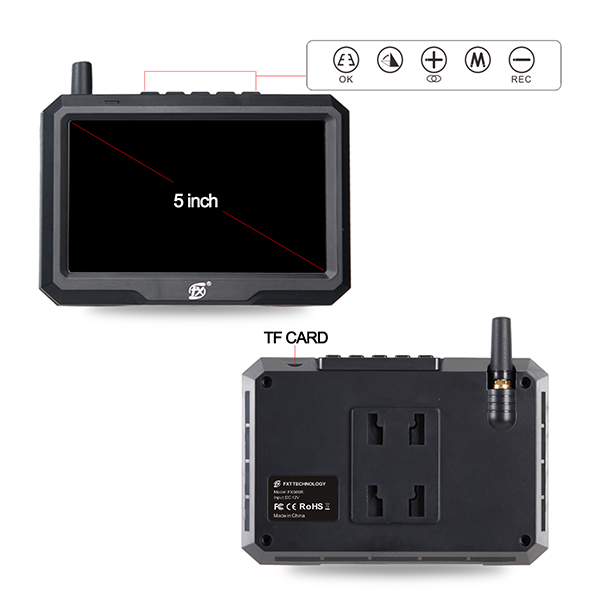

Monitor
LCD Size: | 5 Inch Color Monitor |
Resolution: | 800 x 3(RGB)x 480 |
Brightness: | 1000 cd/m |
TV System: | PAL/NTSC |
Transmitted Power: | 24±1dBm@Max |
Operating Frequency: | 2.4GHz~2.4835GHz |
RX Sensitivity | -85dBm@10%PER |
Spread Spectrum | FHSS |
Video Compression | H.264 |
Latency | 160ms |
Transmitting Distance | 984ft line of sight |
TF Card | Min.8G Max.128G |
Power Supply: | DC+12V~+24V |
Operating temperature: | -20℃~+70℃ |
Storage temperature: | -30℃~+80℃ |
Size | 132.5x89.5x22.5mm |

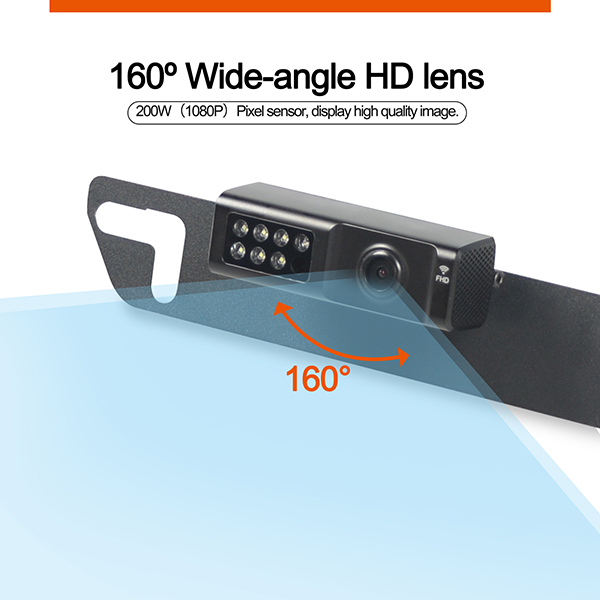

FX922T Camera
Image Sensor | 1/2.7’’COMS HD |
Viewing Angle | 160° |
AGC | Auto |
BLC | Auto |
White Balance | Auto |
Operation Frequency | 2.4GHz--2.4835GHz |
Transmission Distance(barrier free) | 300m(984ft) |
Transmission Power | 23dB |
Latency | Less 200ms |
Spread Spectrum | FHSS |
RF Bit Rate | 12Mbps |
Minimum Illumination | 0Lux |
Night vision distance | 4-5m |
Power supply | DC 10-18V |
Waterproof rating | IP69K |
Size | 85x28x27.5mm |
Weight | 90g |
FX909T Camera
Viewing Angle | 120° |
Image Device | 1/2.7" COMS (HD) |
IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
Waterproof level | IP69k |
Transmission Distance(barrier free) | 1650ft |
Night Vision Distance | 33ft |
Latency | less than 200ms |
Power Supply | DC 12-32V |
Power Consumption | 150mA/12V |
Transmission Power | 26dB |
Operating Temperature | -20℃--70℃,RH85% MAX |
Storage Temperature | -30℃--80℃,RH85% MAX |
Spread Spectrum | FHSS |
Minimum Illumination | 0Lux |
Features:
1. First item 5 Inch 720P Dual-channel digital high-definition wireless DVR set
2. Resolution: 800*480 Brightness: 1000cd/M.
3. 720P H.264 HD DVR Recording,Suport video recording card up to 128G SD Card max.support playback online.
4. Support split two-way display and video on the same screen.can display two channel at the same.
5. Recommend to install on front and back side of vehicle or side door of RV, adjustable reversing line.better to observe the situation of front and back side from vehicles.make driving more safety.
6. FX922T :Smart auto photosensitive and light complement ,6pcs highlight LED light help driving at night.
7. Combine content:One monitor with 2 cameras(FX922T+FX909T+FX509R)
8. Apply to vehicles:mini car, pickup, SUV,RV, Trailer RV
Company Service:
As one of the biggest supplier for car electronic products in Shenzhen China, Our products are sold all over the world, our company pay attention to produce goods for RV design, highly use for reversing, driving and parking of RV/Trailer RV. and also providing OEM&ODM service for OEM&ODM customer.
1. Reply your enquiry within 24 working hours. Best service of after-sales after shipment.
2. Experienced staffs answer all your questions professional, have rich experiences in backup camera and monitor.
3. Customized design is available. OEM&ODM are welcome, the best vehicle rear view camera.
4. Exclusive, considerate and unique solution can be provided to our customers by our well-trained and professional engineers and
staffs.
5. Quality control: all certificates are available, Such as CE,FCC,ROHS.
