Specifications
Brand Name :
TX
Model Number :
FX11A
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
1000pcs/week
Delivery Time :
5-8 days
Packaging Details :
color box
Color :
Orange
Screen Size :
7 inch
Brightness :
900 cd/m²
Viewing Angle :
120°
Whatproof Level :
IP69K
Night Vision Distance :
33ft
Channel :
4 channels Max
Material :
Metal
Description

720P H.264 HD RV Wireless Backup Camera Kit With 7 Inch Monitor

7 Inch Monitor Truck HD Wireless Rearview Backup Camera Kit IP69K Waterproof

Product Features:

1. 7 inch RV 720P digital high-definition wireless DVR set

2. Support multi-channel camera display, can support up to 4 channel split screen

3. 7 inch IPS screen 1024*600 resolution 900cd/ m²,HD highlight to make night vision more easy observation and display.

4. 720P H.264 HD DVR Video recording ,support playback online

5. Self-defining reversing line setting,make the sense of distance approach reality.

6. Wireless signal open distance can reach up to 1650ft(500m), Transmit power is 26DBM

7. Camera use Structural waterproofing process, waterproof IP69K, waterproof droplets, anti-fog, dust-proof, scratch-proof.

8. 120 degree full-glass wide angle lens, 200W(1080P) Pixel Photosensitive element(Sensor), Super strong 11pcs high power infrared light. IR-CUT smart switch night vision, night vision distances can reach up to 10m.

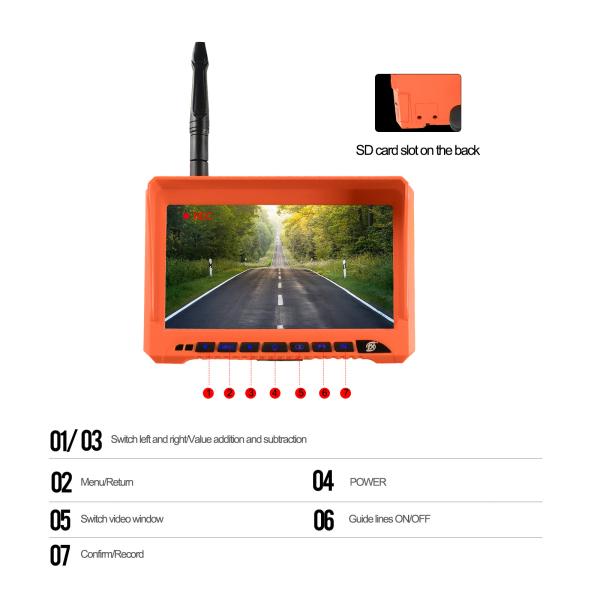

9. Monitor's Outer appearance use Innovative and unique model, and the key board use a light-transmitting design to make the touch more accurate at night.

10. Orange color, unique appearance color, which improves brand recognition.

Specification:

Monitor

Screen Size 7 inch Color Monitor
Operating Frequency 2.4GHz~2.4835GHz
Resolution 1024 x 3(RGB) x 600
Video Format MP4
Built-in DVR recording Holding up to 16G/32G/64G/128G SD Cards
Brightness 900 cd/m²
Channel 4 channels Max
Transmission Distance 1650ft
Power consumption Max:6W
Power Supply DC 12-24V
Operating temperature -20℃--70℃
Storage temperature -30℃--80℃
Outer Dimension 184mm(W)X129mm(H)X26mm(D)

Camera

Viewing Angle 120°
Image Device 1/2.7" COMS (HD)
IR Control SMART IR-CUT 650nm Day/850nm Night Auto
Waterproof level IP69k
Transmission Distance(barrier free) 1650ft
Night Vision Distance 33ft
Latency less than 200ms
Power Supply DC 12-32V
Power Consumption 150mA/12V
Transmission Power 26dB
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Weight 220g
Spread Spectrum FHSS
Minimum Illumination 0Lux

Service:
1. Efficient after-sales service,provide solutions for your problems within 24 hours;
2. OEM&ODM:we can help you produce all customized products;
3. Protection of your design and all your private information;
4. Quality stability,we can provide certificates of products such as CE,FCC,ROHS;
5. Convenient payment methods: Paypal,T/T;

Applications:

Backup Camera System Widely used in RVs,Trucks,Trailers,5th Wheels IR Night Vision and so on.

720P H.264 HD RV Wireless Backup Camera Kit With 7 Inch Monitor720P H.264 HD RV Wireless Backup Camera Kit With 7 Inch Monitor

FAQ

Commercial CE FCC ROHS Certificate Outdoor IP69K Waterproof

Q1.What is the MOQ?
A: 1~100 pieces according to the model.

Q2. What is the payment terms?
A: T/T,L/C at sight

Q3. What is the warranty time?
A:Usually 12 months from the date of purchase, it also depends on the type of the products.


Q4. What is the lead time?
A: Usually 3~7 days for sample order, for bulk orders, it depends on the order quantity.
