10 Touch Screen Wireless RV Backup Camera System Black Color
10 Touch Screen Wireless RV Backup Camera System Black Color
10 Touch Screen Wireless RV Backup Camera System Black Color
10 Touch Screen Wireless RV Backup Camera System Black Color
10 Touch Screen Wireless RV Backup Camera System Black Color
10 Touch Screen Wireless RV Backup Camera System Black Color
Specifications
Brand Name :
TX
Model Number :
FX11G3H
Certification :
FCC CE ROHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
1000pcs/week
Delivery Time :
5-8 days
Packaging Details :
color box
Image Sensor :
1/2.7" COMS (HD)
Viewing Angle :
120°
White Balance :
Auto
Operation Frequency :
2.4GHz--2.4835GHz
Transmission Distance(barrier free) :
300m(984ft)
Latency :
Less 200ms
Power Supply :
DC 10-18V
Waterproof rating :
IP69K
RX Sensitivity :
-85db
Operating Temperature :
-20℃--70℃，RH85% MAX
Storage Temperature :
-30℃--80℃，RH85% MAX
Rear view Mirror :
10 Inch
Description

10" Touch Screen Wireless RV Backup Camera System Black Color

RV Backup Wireless Camera 10" Touch Screen Car-Charger Receiver Black Color

Specification:

Camera

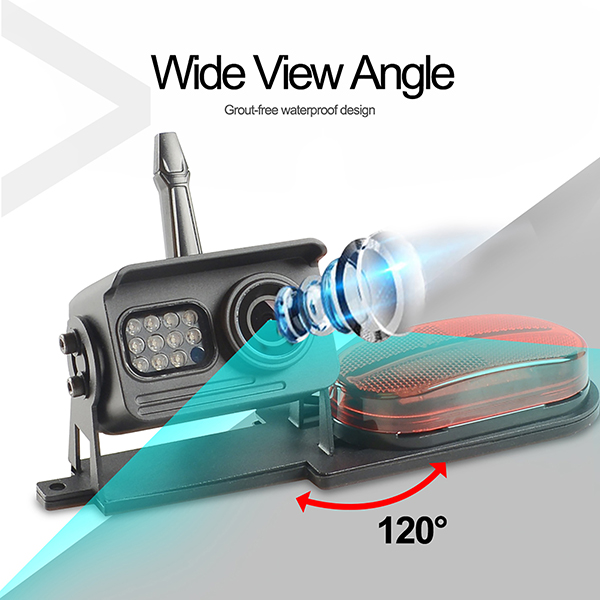

Viewing Angle 120°
Image Device 1/2.7" COMS (HD)
IR Control SMART IR-CUT 650nm Day/850nm Night Auto
Waterproof level IP69k
Transmission Distance(barrier free) 1650ft
Night Vision Distance 33ft
Latency less than 200ms
Power Supply DC+12V
Power Consumption 150mA/12V
Transmission Power 26dB
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Weight 430g
Spread Spectrum FHSS
Minimum Illumination 0Lux


Receiver

Operation Frequency 2.4GHz--2.4835GHz
Transmission Power 23dB
RX Sensitivity -85dB
RF Bit Rate 12Mbps
Spread Spectrum FHSS
Video output format 1080p
Coding Decompression method H.264
Power Supply DC 10-30V
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Size 92x68x43mm
Weight 185g

H10 Rear View Mirror

Built-in image sensor 2 Mega pixel
Viewing angle 130°
Video resolution 1920*1080,S/30 frame
Storage compression method MJPEG
Video format MOV
Touch TP Support, single touch
Storage Temperature -20℃-70℃
Operating Temperature 0℃-50℃
Operating humidity 15-65%RH
SD Card Micro TF Card 128G
Standard Voltage DC5V

Features:

1. First item 10 Inch AHD digital wireless streaming rear view mirror DVR

2. 10 Inch big touch screen and Anti-glare screen,built in image sensor 2 mega.built-in front camera.

3. Camera With 6 highlight LED Warning Light and With silicone mold,can replace the original RV Warning light directly.

4. Camera:11pcs high power infrared light, IR-CUT smart switch, night vision distances can reach up to 33ft.make angle of night vision reach up to 10m and no gathering light.

5. Rear view mirror can replace the existing rear view mirror.support 2 channel at the same time.

6. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting

7. Product context : FX303T+FX901R+H10

8. Apply to vehicles: RV, Trailer RV

Why choose you?

1. We always reply customer’s email within 24-hours.

2. Have Professional QC to test parts before shipment. guarantee 100% good quality of parts before making shipment.

3. All parts with 1 year warranty, All quality certificate are available, such as FCC CE ROHS, fast lead time, competitive price, and after-sales service.

4. All parts are with wireless signal system and waterproof for all cameras.
