12 Inch Big Mirror DVR Reverse Backup Camera AHD Car Charger Receiver
12 Inch Big Mirror DVR Reverse Backup Camera AHD Car Charger Receiver
12 Inch Big Mirror DVR Reverse Backup Camera AHD Car Charger Receiver
12 Inch Big Mirror DVR Reverse Backup Camera AHD Car Charger Receiver
12 Inch Big Mirror DVR Reverse Backup Camera AHD Car Charger Receiver
12 Inch Big Mirror DVR Reverse Backup Camera AHD Car Charger Receiver
Specifications
Brand Name :
TX
Model Number :
FX11G3L
Certification :
FCC CE ROHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
1000pcs/week
Delivery Time :
5-8 days
Packaging Details :
color box
Viewing Angle :
120°
Image Device :
1/2.7" COMS (HD)
Waterproof level :
IP69K
Night Vision Distance :
33ft
Operating Temperature :
-20℃--70℃，RH85% MAX
Storage Temperature :
-30℃--80℃,RH85% MAX
Operation Frequency :
2.4GHz--2.4835GHz
Spread Spectrum :
FHSS
Coding Decompression method :
H.264
Screen Size :
12 Inch big Touch screen
Description

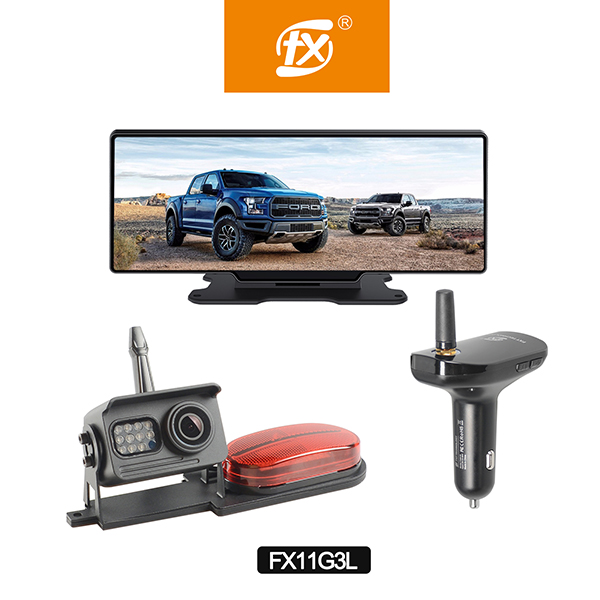

12 Inch Big Mirror DVR Reverse Backup Camera AHD Car Charger Receiver

Wireless DVR Reverse Backup Camera 12 Inch Big Mirror AHD Car-Charger Receiver

Features:

1. First item 12 Inch AHD digital wireless streaming rear view mirror DVR

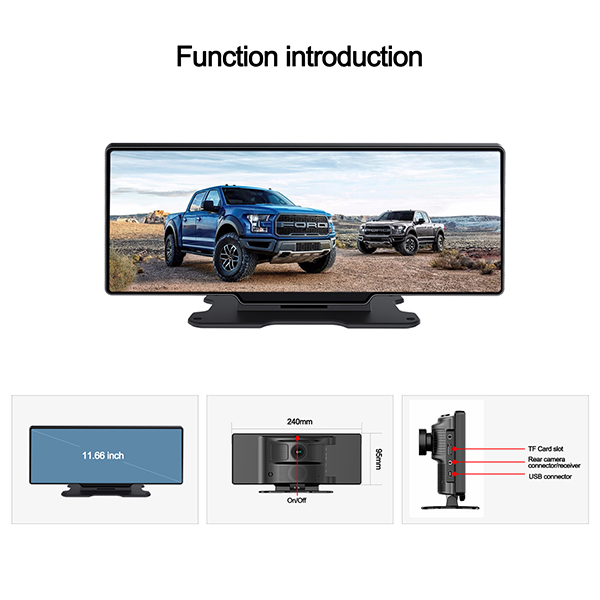

2. 12 Inch IPS big touch screen,high resolution is 1600*600,can support front 2K and back 1080P dual recording.built-in 1080P front camera.

3. Camera With 6 highlight LED Warning Light and With silicone mold, Can replace the original RV Warning light,pay attention to RV use.

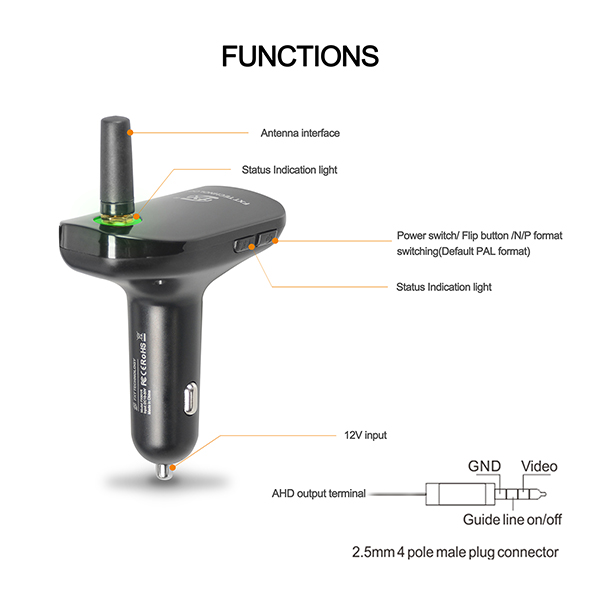

4. AHD Receiver use Car charger integrated design, power supply From Car cigarette lighter port,easy to install and more convenient.

5. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting.

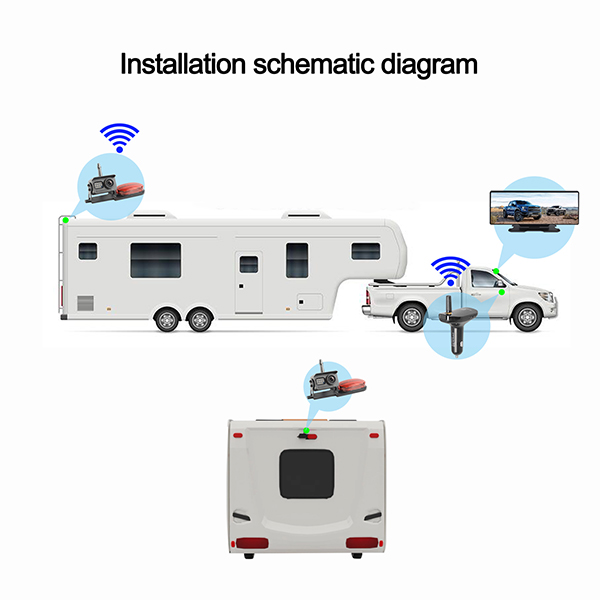

6. Apply to vehicles: RV, Trailer RV.

Specification:

Camera

Viewing Angle 120°
Image Device 1/2.7" COMS (HD)
IR Control SMART IR-CUT 650nm Day/850nm Night Auto
Waterproof level IP69k
Transmission Distance(barrier free) 1650ft
Night Vision Distance 33ft
Latency less than 200ms
Power Supply DC+12V
Power Consumption 150mA/12V
Transmission Power 26dB
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Weight 430g
Spread Spectrum FHSS
Minimum Illumination 0Lux

Receiver

Operation Frequency 2.4GHz--2.4835GHz
Transmission Power 23dB
RX Sensitivity -85dB
RF Bit Rate 12Mbps
Spread Spectrum FHSS
Video output format 1080p
Coding Decompression method H.264
Power Supply DC 10-30V
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Size 92x68x43mm
Weight 185g

Competitive Advantage:

  1. Best Quality: All products will be well tested before shipping.
  2. Competitive price: We are factory directly selling, we are the source.
  3. Rich experience in Car rearview system.
  4. Good Guarantee/Warranty:1 years warranty.
  5. Customer demand is our demand, we always stand in the perspective of customer problems.

FAQ:

Commercial CE FCC ROHS Certificate Outdoor IP69K Waterproof

Q1. What is the MOQ?

A: 1~100 pieces according to the model.

Q2. What is the payment terms?

A: T/T,L/C at sight

Q3. What is the warranty time?

A: Usually 12 months from the date of purchase, it also depends on the type of the products.

All parts will be ensured the quality for 12 months.

Q4. What is the type of shipping?

A: By express, by air and by sea(FEDEX,DHL,TNT,UPS)

Q5: What is the trade terms?

A: FOB Shenzhen, C&F,EXW.

12 Inch Big Mirror DVR Reverse Backup Camera AHD Car Charger Receiver12 Inch Big Mirror DVR Reverse Backup Camera AHD Car Charger Receiver12 Inch Big Mirror DVR Reverse Backup Camera AHD Car Charger Receiver12 Inch Big Mirror DVR Reverse Backup Camera AHD Car Charger Receiver
