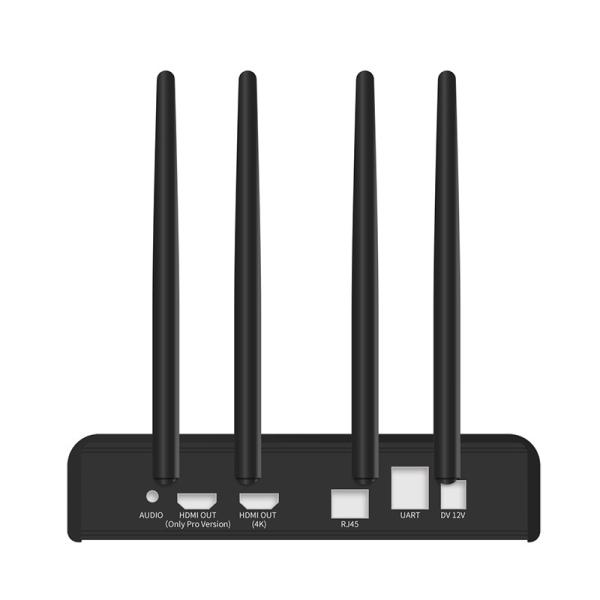

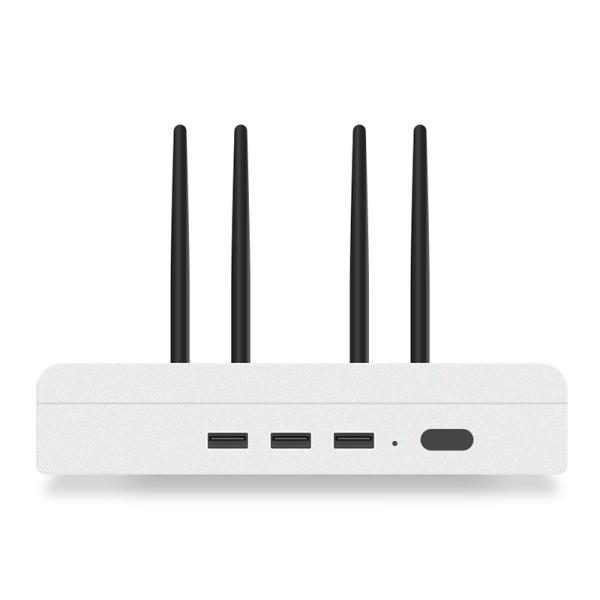

4K 60Hz Audio Video Wireless Transmitter BYOM Wireless Collaboration Device For Meeting
4K 60Hz Audio Video Wireless Transmitter BYOM Wireless Collaboration Device For Meeting
4K 60Hz Audio Video Wireless Transmitter BYOM Wireless Collaboration Device For Meeting
4K 60Hz Audio Video Wireless Transmitter BYOM Wireless Collaboration Device For Meeting
Specifications
Brand Name :
Quickshare
Model Number :
Quickshare 68E
Certification :
CE RoHS CCC SRRC ISO9001
Place of Origin :
Shenzhen China
MOQ :
MOQ : 1 set/OEM/ODM/SDK Service
Price :
Negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
10K/Month
Delivery Time :
3-8 working days
Packaging Details :
Gift box -320*240*100mm 1.5Kg,including Adaptor, Antenna*4pcs,Transmitter*1pcs,Receiver box
System :
Android 11
Support system :
WIndows/Mac/Linux/Android/iOS
DDR+Flash :
2+8G/4+32G
Screen :
4/9 Screens
Wi-Fi :
5.8G Hotspot+5.8G SAT
Model Name :
BYOM Wireless Collaboration System
Description

4K 60Hz Audio video wireless transmitter BYOM wireless collaboration device for meeting

Quickshare is BYOD wireless presentation system that enables any employee or visitor to share a conference room or huddle room projector or panel in just seconds simply by plugging in their notebook and pressing a button.

[4K Ultra HDMI Resolution]

Quickshare wireless HDMI transmitter and receiver supports video resolution up to 4K(3840 X 2160) and more resolutions(1080P full HD/720P),Built-in chip can prevent delay and lag caused by signal interference, you can enjoy clear and vivid images in a large screen. This Mirroring wireless is perfect for learning, business meeting, family party and playing games and gives you a great screen experience.

Features of wireless collaboration system:

1. Multiple Devices to Display . Compatible with windows /Mac/ Android / iOS platforms . It Supports mobile phone m notebooks , desktop computers , laptops , tablets and many other devices for mirroring .

2. HDMi in

3. Display Mode . Support for extended desktops (win7/win10 )

4. Capabilities for touch

5, Wi-Fi 6 5.8G Hotspot+5.8G SAT

6, BYOM Support Shared camera and micro-phone

7, Support Single screen: 4K pixel to pixel, 4 screens: 1080P pixel to pixel

8, Support USB-wired mirroring

4K 60Hz Audio Video Wireless Transmitter BYOM Wireless Collaboration Device For Meeting

Windows Mirroring via software
Installation Keep PC and box at the same internet,No need installation
Support System Windows 7/8/10
Resolution

1920*1080,1366*768,1360*768,1280*800,1280*720

1024*768
Frame Rate Audio&Video 18~30Frame
Delay time 100~200ms
Display mode Support extend screen
TouchBackControl Support Mouse mode return
Connection paths number 128
The most qty display screen 4/9 Screens
Meeting Mode Host mode The host can touch the list of screens to select the designated PC screen
Participant mode During the meeting,when non-host transmits the screen, whoever press the button and who can transmit.
Connecting Internet

1. When box connect to RJ45,PC Wi-Fi or wired connection of Network

2. When box connect to Wi-Fi,PC Wi-Fi or wired connection of Network

  • PC Wi-Fi Connecting to box 5G hotpot
Wireless USB Dongle
Installation No installation, no configuration
Connection USB Device
Support system Windows 7/8/10,Apple Mac
Resolution 720P~1080P 4K
Frame Rate Audio&Video 18~30Frame
Delay time 100~180ms
Transmit distance No obstacle 50m
Display mode Support extend screen(Windows 7/8/10)
TouchBackControl Support 10 fingers touch returns(Windows 7/8/10)
Support mouse mode return (Mac)
Connection number 1~8(If above8pcs, need additional routers)
The most qty display screen 4/9 screens
Wireless Speed TX 300Mbps
Wireless Protocol IEEE 802.11 a/g/n/ac
Channel 5.8G, Multi channel Selection
Authentication Protocols WPA2-PSK
Upgrading method PC USB Upgrading the dongle
Meeting Mode Host Mode The host can touch the list of screens to select the designated PC screen
Phones Wiress Mirroring
Dual Wi-Fi 5GHotspot &2.4G Wi-Fi working at same time,While mirroring, the phone can go surfing.
Scanning Screen Android devices scan QR Codes and casting
Cross Segments Under the same Network, the screen transmission can between different network segments
iPhone iOS8 above,AirPlay mirroring,support multi-screens mirroring
Android phone Android 5.0 and above, and download USBdisplay.cn APP can mirroring videos which can pass-through sound
MiraPlay Mode No need APP for mirroring, support Miracast,AirPlay,USB wireless mirroring
Other Functions
Rotating Support 90° 180°270° photos Rotating
Dynamic Password Support APP mirroring, AirPlay,Windows software mirroring
Take notes Single-point Writing(Accelerating Low Delay)Multi-points Scaling,Gesture Erasure, support scan QR code and share
Audio output HDMI output
RTC Built-in super capacitor to maintain normal operation 1week if power down
Restart Timely Support timely restart and keep the whole year work normally without power down.
Other APPs Customization Welcome, files explores and screen saver
Router Mode Support 5.8G&5.8G AP at the same time for mirroring(optional)
Video/Audio
Video decoding Support H.264,H.265,VP8,RV,WMV,AVS,H.263,MPEG4
Decoding solution 4K
Touch System
Connector USB HID Mouse mode Support
IR touch control Support Capacitive touch panel Support
Operation System
System version Android 11 USB 3
CPU ARM Cortex A55 x 4 HDMI output 1
DDR 2G /4G HDMi in 1
Flash Memory 8G/32G RS232 1
Lan RJ45 IR Receiver Support
Soft AP 802.11AC 5.8G Wi-Fi 5.8G

FAQ

Q: Are you a manufacturer or a trading company ?

A: We're professional manufacturer of Wireless Presentation System, providing one-stop OEM & ODM service to all partners all over the world.

Q: Are your products conforming to our standards ?

A: Yes, our products can pass the testings as you require, e.g.: CE, RoHS, ISO9001.

Q: How do you control the quality ?

A: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.

Q: What’s the product warranty?

A: We offer 12 months guarantee.
