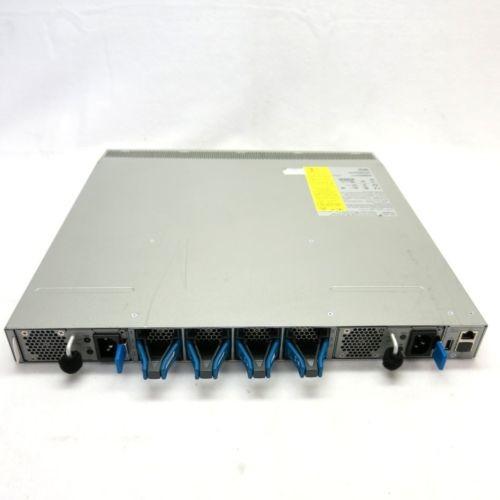

Original new N3K-C3172TQ-32T Nexus 3172-T, 32 x 10GBase-T and 6 QSFP+ ports
Original new N3K-C3172TQ-32T Nexus 3172-T, 32 x 10GBase-T and 6 QSFP+ ports
Original new N3K-C3172TQ-32T Nexus 3172-T, 32 x 10GBase-T and 6 QSFP+ ports
Original new N3K-C3172TQ-32T Nexus 3172-T, 32 x 10GBase-T and 6 QSFP+ ports
Original new N3K-C3172TQ-32T Nexus 3172-T, 32 x 10GBase-T and 6 QSFP+ ports
Original new N3K-C3172TQ-32T Nexus 3172-T, 32 x 10GBase-T and 6 QSFP+ ports
Specifications
Brand Name :
CISCO
Model Number :
N3K-C3172TQ-32T
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000
Delivery Time :
1-2work days
Model Number: :
N3K-C3172TQ-32T
name :
N2K Switches
Certification: :
FCC
Switch Capacity: :
N3K-C3172TQ-32T
Enclosure Type :
Rack-mountable - 1U
Ports: :
(32x1/10GE+8x10GE), airflow/power option
Warranty: :
1 Year
Dimensions :
44.5 cm x 36.8 cm x 4.5 cm
Description :
N3K-C3172TQ-32T
Description
Overview
Quick Details
Products Status:
Stock
Condition:
Brand New (Original)
Device Type:
switch module
Product name:
Nexus 3172TQ Switch
Part NO:
N3K-C3172TQ-32T
Shipment:
Within 1-2 Days
Warranty:
1 Year
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
official packaging
Port
Beijing port
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 1 2 To be negotiated
Product Description

The details of Nexus Expansion module N3K-C3172TQ-32T

NEXUS C3172TQ 10GE EXTENDER - EXPANSION MODULE


Product Code: N3K-C3172TQ-32T

Manufacturer:

Device Type: Expansion module

Form Factor: Rack-mountable

Ports:32 x 10GBase-T and 6 QSFP+ ports

DESCRIPTION

Product Description

Product Overview

N2K-C2348UPQ is a Cisco Nexus 2300 Platform Chassis, offering 2 power supply, 3 Fan Modules, 48x1/10GE (req SFP/SFP+) + 6x40G QSFP+(req QSFP+), and choice of airflow. Cisco Nexus 2300 platform fabric extenders are the successors to the industry’s widely adopted Cisco Nexus 2000 Series Fabric Extenders. The Nexus 2300 platform with its Cisco fabric extender architecture provides a highly scalable unified server-access platform across a range of connectivity options such as 100 Megabit Ethernet; 1, 10, and 40 Gigabit Ethernet; unified fabric; copper and fiber connectivity; and rack and blade server environments.

Product Specification

N2K-C2348UPQ Specification
Type Cisco Nexus 2348UPQ
Fabric extender host interfaces 48
Fabric extender host interface type

For 48 x 1/10 Gigabit Ethernet host interface ports

  • 1/10 Gigabit Ethernet ports SFP/SFP+ (supported transceiver and cables include Twinax SFP-H10GB-CU1M, SFP-H10GB-CU1-5M, SFP-H10GB-CU2M, SFP-H10GB-CU2-5M SFP-H10GB-CU3M, SFP-H10GB-CU5M, SFP-H10GBACU7M, and SFP-H10GB-ACU10M; SFP+ SFP-10G-SR, SFP-10G-SR-S, SFP-10G-LR, and SFP-10G-LR-S; and SFP GLC-T, GLC-SX-MM, GLC-LH-SM, SFP-GE-T, SFP-GE-S, and SFP-GE-L)
  • AOC cables: SFP-10G-AOC1M, SFP-10G-AOC2M, SFP-10G-AOC3M, SFP-10G-AOC5M, SFP-10G-AOC7M, and SFP-10G-AOC10M
  • DS-SFP-FC16G-SW (16, 8 and 4G modes),DS-SFP-FC16G-LW (16, 8 and 4G modes),DS-SFP-FC8G-SW,DS-SFP-FC8G-LW,DS-SFP-FC4G-SW, DS-SFP-FC4G-LW
Fabric extender fabric interfaces 6 x 40 Gigabit Ethernet QSFP (24 x 10 Gigabit Ethernet)
Fabric extender fabric interface type
  • Fiber: QSFP-40G-SR-BD, QSFP-40G-SR4,QSFP-40G-SR4-S, QSFP-40G-LR4, QSFP-40G-LR4-S, and QSFP-40G-CSR4-S
  • Copper: 40 Gigabit Ethernet QSFP+ active Twinax cables (QSFP-H40G-ACU7M and QSFP-H40G-ACU10M (no passive cables)
  • AOC cables: QSFP-H40G-AOC1M, QSFP-H40G-AOC2M, QSFP-H40G-AOC3M, QSFP-H40G-AOC5M, QSFP-H40G-AOC7M, QSFP-H40G-AOC10M, and QSFP-H40G-AOC15M
  • AOC breakout cables: QSFP-4X10G-AOC1M, QSFP-4X10G-AOC2M, QSFP-4X10G-AOC3M, QSFP-4X10G-AOC5M, QSFP-4X10G-AOC7M, and QSFP-4X10G-AOC10M
  • Copper breakout cables: QSFP-4x10G-AC7M and QSFP-4x10G-AC10M (no passive cables)
  • Distance between Cisco Nexus 2300 fabric extender and Cisco Nexus 5500 switch is up to 10 km (up to 3 km for FCoE traffic), and for the Cisco Nexus 5600 switch or 6000 Series Switch the distance is up to 3 km (300m for FCoE traffic)
  • All equivalent S-class optics are supported
  • Cisco 40GBASE QSFP to SFP+/SFP adapter (CVR-QSFP-SFP10G)
Fabric speed Up to 240 Gbps in each direction
(480-Gbps full duplex)
Oversubscription Up to 2:1
Performance Hardware forwarding at 1440 Gbps or 2160 million packets per second (mpps)
FCoE FCoE supported (Cisco Nexus 5500 and 5600 platforms and 6000 Series) (select N7k platforms since 7.3 release)
Cisco parent switch
  • Cisco Nexus 5500 and 5600 platforms
  • Cisco Nexus 6000 Series
  • Cisco Nexus 7000 Series and 7700 platform
  • Cisco Nexus 9300 and 9500 Series
Minimum software
  • Cisco NX-OS Release 7.0(3)N1(1)
    (Cisco Nexus 5500 and 5600 platforms and 6000 Series)
  • Cisco NX-OS Release 7.2.0D1(1)
  • (Cisco Nexus 7000 Series and 7700 platform)
  • Cisco NX-OS Release 7.0(3)I2(1)
  • (Cisco Nexus 9300 Series and 9500 platform)
  • Native FC support: Cisco NX-OS Release 7.3(0)N1(1)
    (Cisco Nexus 5600 platforms Only)
Dimensions (H x W x D)
  • 1.72 x 17.3 x 14.05 in.
    (4.37 x 43.94 x 35.69 cm)
Weight
  • 15.50 lbs. (7.0 kg)
Environment
  • Operating temperature:
