CINTERION Wireless GPS GSM GPRS Module BGS2-W For M2M Production

bandBGS2 with 2 version:

BGS2-E : Dual-band

BGS2-W : Quad-band

Module Introduction:

BGS2 comes in two flavors as Quad-Band with GPRS class 10 (BGS2-W) and Dual-Band with GPRS class 10 (BGS2-E). As is true with all Cinterion modules, the BGS2 includes full type approval (FTA) for global roaming and certification for use with the largest carriers worldwide.

General Feature:

>> Control via AT commands (Hayes, 3GPP TS 27.007 and 27.005)

>> Internet Services TCP server/client, UDP, HTTP, FTP, SMTP, POP3, Ping

>> Secure Connection with TLS

>> DTMF detector

>> Supply voltage range 3.3 to 4.5 V

>> LGA66 soldering mount, MSL4

>> Dimensions: 27.6 × 18.8 × 2.7 mm

>> Operating temperature: -40 °C to +90 °C

>> RoHS and EuP compliant

APPROVALS

> CE, R&TTE, GCF

> FCC, PTRCB, UL, IC (BGS2-W)

> GCF Listing

> Other local approvals and network operator

certifications

Specification:

· Quad-Band 2G (BGS2-W)

· GPRS class 10
DL: max. 85.6 kbps,
UL: max. 42.8 kbps (BGS2-W)
UL: max. 21.4 kbps (BGS2-E)

· Full Voice Support

· TCP/IP stack access via AT commands

· Mounting by solder able pins - no screws, no spacer

· Highly compact size

Application:

Ideal for small M2M devices. such as metering, remote maintenance, traffic systems, transportation and logistics, and security.

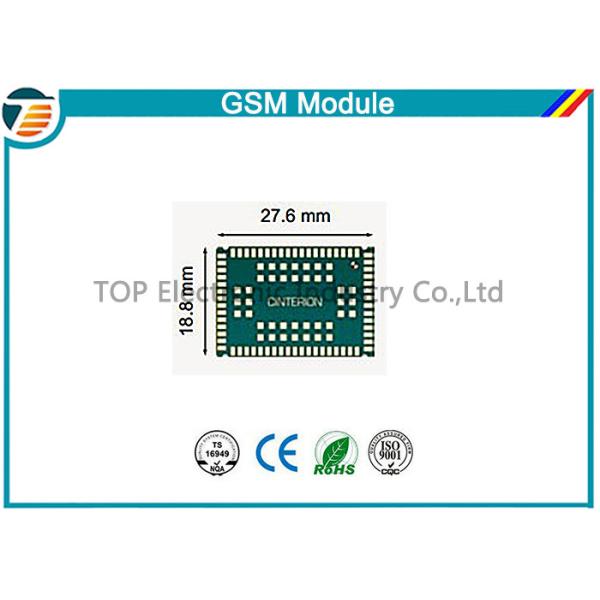

Module show:

OUR Offer:

communication antennas & modules with wonderful solution, Perfect after-sales service, strict quality testing and competitive price.module brands includes Sierra Wiressless, Simcom, Cinterion, U-blox, Hua wei , ZTE, Holux, Globalsat, GlobaTop, Skylab, Telit, etc.
We're also one of the biggest stocking distributors of active and passive electronic components located in Shen Zhen
