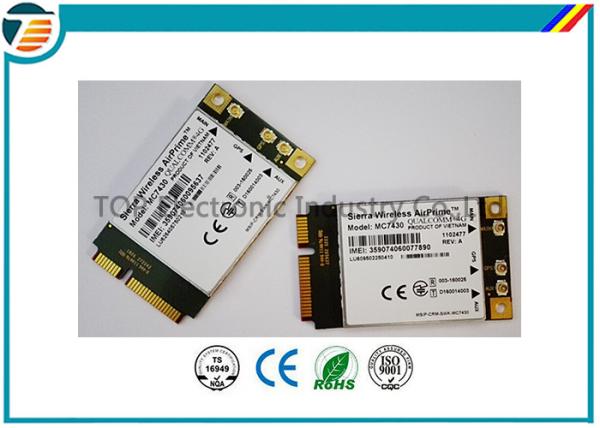

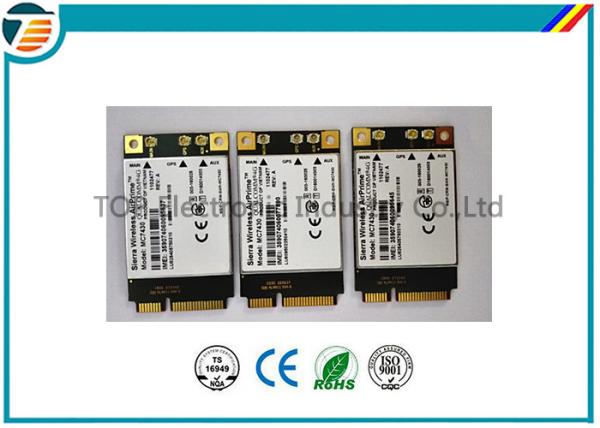

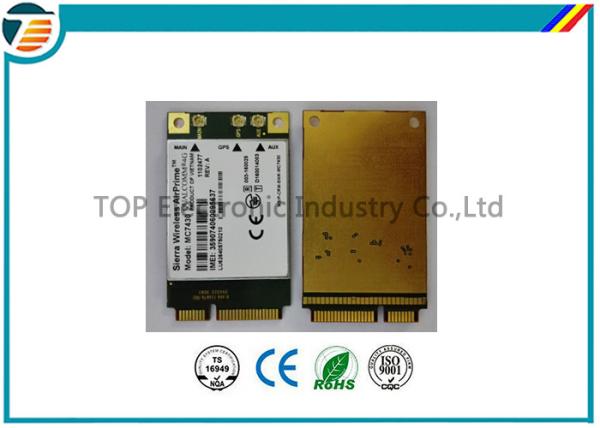

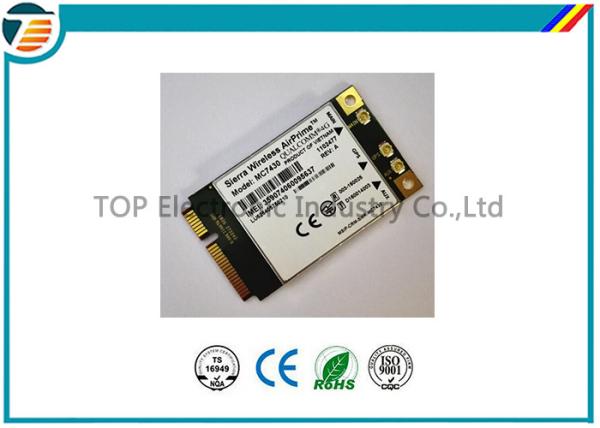

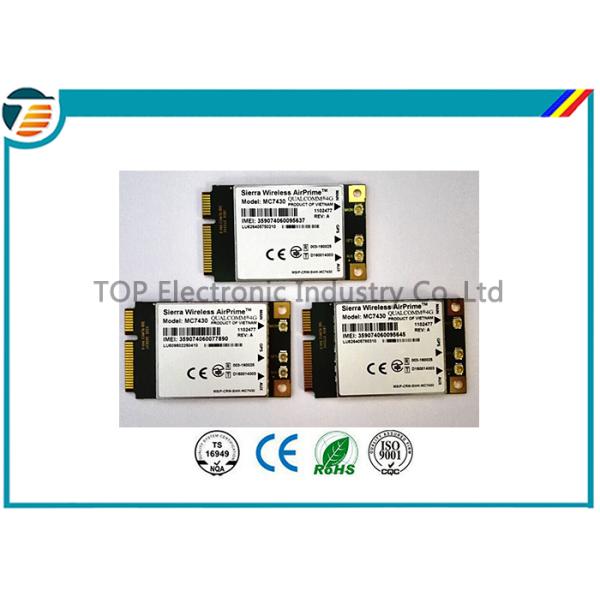

MC7430 MDM9230 4G LTE Module

4G FDD CAT 6 LTE Module MC7430 Mini Card with whole network MDM9230 chipset used for remote control from Sierra.

AirPrime® MC7430 Specifications

Cellular

• FDD/TDD LTE (Cat 6)

1,3,5,7,8,11,18,19,21,28,38,39,40,41

• Carrier Aggregation

1+8, 1+1, 1+5, 1+18, 1+19, 3+8, 3+3, 3+28, 3+5,

3+19, 7+5, 7+3, 7+7, 7+28, 11+18, 21+19, 38+38,

40+40, 41+41

• DC-HSPA+ (42/5.76 Mbps)

1,2,5,6,8,9,11,19

• TD-SCDMA 38,39

Physical Characteristics

Temperature ranges:

Key Features

Global coverage, 2 module variants

GNSS

On-board network switching

Cloud connected

Automatic fallback to 3G

• Single SKU for APAC

• GNSS

• Dedicated GPS connector with GPS bias or

shared on diversity (TBD)

• GPS, Glonass, Galileo ,BeiDou

• SUPL 1.0, 2.0, XTRA2.0

• Optional support for VoLTE and CSFB voice through

future FW update

• Low power consumption

• Envelope tracking

• Software

• Gobi API, Image switching, MBIM interface

• Basic and Extended AT Commands

• Skylight for Windows 7, 8/8.1

• Linux and Android

Application:

MC7430 is a new 4G LTE module with whole network in 2015. And will Mass production at the January 2016. Designed for mobile computing, networking, and industrial machine-to-machine applications.

the Asia Pacific variants EM7430 and MC7430 are suitable for Australian and New Zealand networks.

Approval & Certification:

•JRF/JPA,NCC

•docomo, Telstra, Others TBD

Advantage:

It is the latest generation of 4G LTE network standards, aimed at improving network capacity, throughput, data speed, and operational cost-efficiency.
This wide compatibility is uniquely enabled through on-board network switching – multiple firmware versions are included in each module, making it easy to provision and re-provision for different network operators as required. Coupled with support for a wide range of currently used LTE frequency bands, on-board network switching allows OEMs to streamline their inventory and operations processes, as each module supports more networks, and modules can be pre-installed and provisioned for their chosen networks when they are deployed.
