4g Embedded Module WP7501 4G-LTE Cat 3 , Programmable CF3 SMD Module

Region: Primarily North America

Introduction:

WP7501 is a 4G-LTE cat 3 programmable module primarily for North America. Supported frequency bands: 4G B2, B4, B13 The WP series modules have an embedded Linux Operating System with the Legato application framework running on a Cortex A5, 550 MHz, application core. Flash and RAM is integrated. FREE unlimited FOTA. Full support for connecting to the AirVantage Cloud or any other cloud. CF3 SMD LGA package. Sierra Wireless® AirPrime® WP series Offers an application processor running the open source Legato™ platform, GNSS receiver, and 3G or 4G cellular modem with an ultra-low power domain,

Features

Interfaces

1. 2x SIM interface: 1.8/3V

2. 1x UART, 8 wire

3. 1x UART, 4 wire

4. 1x USB OTG 2.0 High Speed

5. 1x HSIC

6. 1x SPI

7. 1x I2C

8. 1x SDIO

9. 12x GPIO

10. 1x VGPIO

11. 5x Interrupt

12. 1x Wireless Disable

13. 1x Tx ON

14. 1x LED driver

15. 1x Wake on WWAN

16. 1x Digital Audio, PCM/I2S

17. 1x RF, Main

18. 1x RF, GNSS

19. 4x Antenna control

20. Test points

Control, Software and Features

1. Embedded Linux/Legato application framework

2. Control option: AT Commands

3. Internet services: TCP, UDP, FTP, HTTP, SMTP, POP3, SSL

4. Drivers: Android, Linux, Windows

5. FOTA: Free and unlimited through AirVantage

6. Cloud service: AirVantage Cloud for management, diagnostics and business data

Embedded application performance

1. CPU: Cortex A5, 550 MHz

2. User MIPS available: 860 MIPS

3. Memory: 256 MB Flash, 128 MB RAM

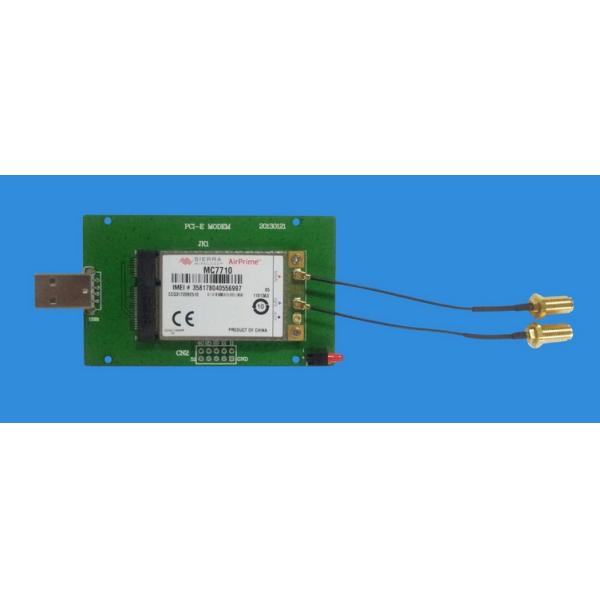

Module show:
