IPEX Or UFL Connector Internal PCB 2.4 Ghz Wifi Antenna High Efficiency

Antenna introduction:

This is PCB type antenna,

TOP-WIFI08: WIFI(2.4GHz) ANTENNA, with 66*16*1MM size

TOP-WIFI08-1: it is a Bluetooth antenna, both 2.4G and 5.8 G 60*15*0.6MM with Size

Information:

This high performance Dual Band WIFI Antenna for IEEE 802.11 Wlan System with Extension Cable provides broad coverage and 2 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for 2400~2500MHz and 4900 - 5900 MHz ISM band applications as well as cellular applications. Measuring 231mm long, this flexible antenna features a tilt-and-swivel Reverse Polarity SMA-Plug (RP-SMA) connector, allowing them to be used vertically, at a right angle, or any angle in-between.

PCB antennas are designed to be fitted in portable equipment or where space is a premium. Sequoia offer embedded PCB antennas to suit most frequencies and technologies including GSM/3G/GPRS/Bluetooth/WiFi and ISM bands.

Features

RoHS Compliant

Low V.S.W.R. / Low Loss Design / High Gain

High Efficiency and Sensitivity

Low Loss RF Coaxial Connector Cable Feed

Matching Free Design

Specification:

Application:

Applied in the wireless router and 2.4G system of communication terminal system.

Click here to find the data sheet:

TOP-WIFI08-1.pdf

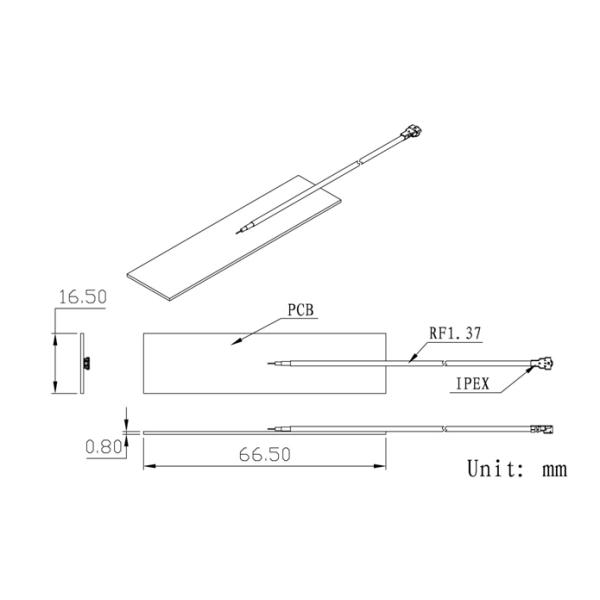

TOP-WIFI08 drawing:

TOP-WIFI08-1 drawing:

Antenna show:

Our Antenna :

---Powerful R&D team

---Wonderful design solution

---Perfect after-sales service

---Strict quality testing

---Rich cooperation experiences with Communication product manufactures

---Competitive price

FAQ

1. What's the Warranty of the Products?

Answer: In general, all goods with 12 month-warranty after the shipments .

2. How about the defective rate ?

Answer: Less than 1%.

3. Where can customers get the Product Specification and other datasheets?

Answer: we will send them via email once get the request from the customers.

Our high quality products , competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
