1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System
1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System
1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System
1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System
1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System
1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System
1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System
1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System
Specifications
Brand Name :
TOP
Model Number :
TOP-GPS02
Certification :
CE,ROHS
Place of Origin :
Shen Zhen,Guang Dong,China
MOQ :
10pcs
Price :
2.3$~3$/pcs
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
20k pcs/ month
Delivery Time :
3-5 working days after receiving the payment
Packaging Details :
1pcs/box (1pcs/PE bag), 100pcs/carton
Product name :
GPS active antenna
size :
46*14mm
gain :
28 Dbi
Mounting Method :
screw
Operating Temperature :
-40℃~+85℃
Ingress Protection :
IP67
Description

1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System

Description:

  • Mount option: screw mount
  • Connector type options: straight or right angle BNC,TNC,MCX,MMCX,SMA,SMB-F,SMB-M,SMC,FAKRA,HRS GT5 etc. (Default: straight SMA type)
  • Cable length options: maximal 1M,3M, 5M etc

SPECIFICATION

Size: D46x15mm

Dieletric Antenna

Center Frequency 1575.42 MHz3 MHz

V.S.W.R 1.5 : 1

Band Width 5 MHz

Impendence 50 ohm

Polarization Type RHCP

LNA / Filter

LNA Gain(Without cable) 282 dB Typical

Noise Figure 1.5 dB

DC Voltage 2.2~5 V

DC current 5~15 mA

Cable RG174 5m / 3m / or others

Connector SMA / SMB / MCX / or others

Housing Black or others

Working Temp -40~+85

Humidity 55%~75%RH

Waterproof IP67

Specifications:

Item

Specifications

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

2dBic(Zenith)

V.S.W.R

＜1.5

Impendance

50Ω

Axial Ratio

3dB(max)

Dimension

25*25*4mm

LNA

Gain

28±2dB

Noise Figure

＜1.5

Filter Insertion Loss

＜3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

V.S.W.R

＜2.0

Mechanical

Cable

RG174--3M

Connector

SMA

Radome Material

ABS

Mounting Method

Magnet

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP65~IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

Application:

  • Compatible with all GPS devices/systems that apply active antennas
  • Garmin / Marine positioning system
  • Global positioning system

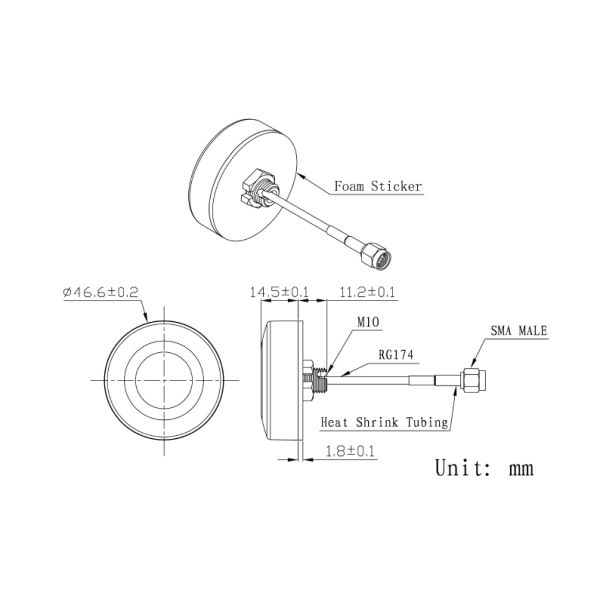

Drawing:

1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System

Radiation Pattern :

1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System

Click here to find the data sheet

TOP-GPS02.pdf

Our Antenna :

---Powerful R&D team

---Wonderful design solution

---Perfect after-sales service

---Strict quality testing

---Rich cooperation experiences with Communication product manufactures

---Competitive price

FAQ

1. What's the Warranty of the Products?

Answer: In general, all goods with 12 month-warranty after the shipments .

2. How about the defective rate ?

Answer: Less than 1%.

3. Where can customers get the Product Specification and other datasheets?

Answer: we will send them via email once get the request from the customers.

Our high quality products , competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
