ME909s-821 Embedded Wifi 4G LTE Module With Linux , Android , Windows System

There are LGA and mini PCIE 2 TYPE

Application :

Huawei ME909s-821 is a new LTE cat4 module based on Huawei Hisilicon chipset. With high quality designed small size and huawei standard LGA & Mini PCIe form factor,

Huawei ME909s-821 is especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.

Technical Specification

Huawei ME909s-821 Technical Specifications:

Special Features
- CDC-ECM
- FOTA
- Firmware Update via USB
- Embedded UDP/TCP/FTP(s)/HTTP(s) stack
- High-speed UART
- CMUX
- Sleep mode

* Operating System: Linux, Android, WinCE, Windows 8/10

* Approvals: CCC, NAL, SRRC, RoHS & WEEE Compliant

* Dimensions:

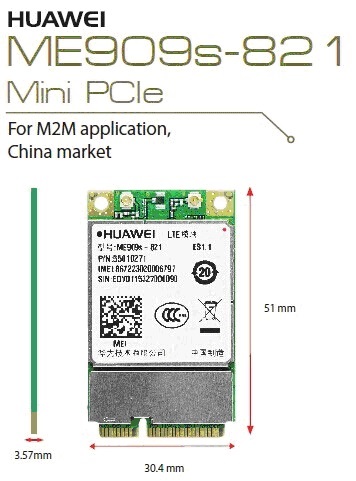

- Mini PCIe: 30.4 x 51 x 3.57 mm

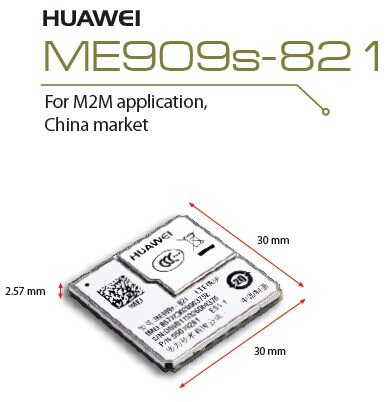

- LGA: 30 x 30 x 2.57 mm

Introduction:

UART Interface: The module supports 3 UART interfaces. Two are 4-wire
UARTs, and the last one is 2-wire UART, which is only for
debugging.
USB Interface: The USB interface supports USB 2.0 high speed standard.
USIM Interface: The USIM interface provides the interface for a USIM card.
External Power
Supply:
DC 3.8 V is recommended.
Audio Interface: The module supports one PCM interface. This function is
under development.
RF Pad: RF antenna interface.
Tunable ANT
CTRL:
Since LTE bands cover wide frequency, tunable ANT CTRL
helps customer for tunable antenna design. This function is
under development.
ADC: Reserved for intelligent module in future.
SPI Interface: Reserved for intelligent module in future.
SDIO Interface: Reserved for intelligent module in future.
HSIC Interface: Reserved for intelligent module in future.
I2C Interface: Reserved for intelligent module in future.

Advantage
ME909s-821 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands.

ME909s-821 supports China region LTE Bands including both FDD-LTE & TDD-LTE, and has two different form factor: LGA and Mini PCIe form factor.

With Huawei pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-821.

Module display:
