Specifications
Brand Name :
Lensen
Model Number :
LS-RDIO0202-868
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
6000pcs
Delivery Time :
2-6 days
Packaging Details :
standard carton
Power Output :
1W
Frequency :
868MHz
Distance :
5km
Input :
digital input
Output :
relay output
Technology :
lora
Description

Digital Input Wireless Modbus RTU 2km Wireless Pump Control 868MHz Wireless Lora Module

1. LS-RDIO series module general introduction

LS-RDIO Modbus RTU is an industrial controller designed by Lensen Technology. It supports point to point, point to multi-points wireless DI, DO collection and control. The transceiver inside adopts Lora technology which has the advantage of low power, long range. Lensen wireless I/O modules are easy to install, no program required, no communication fee. It is reliable and cost-effective substitution for rail signal cable, slip ring signal wire. LS-RDIO0202 has 2 inputs 2 relay outputs and 1 RS485 (wireless RS485 is customized).

2. Application Field

LS-RDIO series I/O module is widely used in industry automation like factory central data process, pump control, tank level monitoring, Conveyor Control, oil monitoring, mining machinery, environment monitoring equipment, lifting devices, robots control, filling machine, mixing equipment, logistic line, AGV etc.

3. LS-RDIO0202 Parameter

Parameter
Power output: 600mW
Wireless technology: Lora
Power supply: 9V-30V (usually choose 24V DC or 12V DC)
Control distance: 5km LOS
Baud rate: 2400bps
Receiving sensibility: -123dBm@1200bps, -118dbm(9600bps)
Networking
Networking: Point to point and point to multipoint
Protocol: Modbus RTU protocol
Port Description
Input: 2 active inputs (passive customize), isolated
Output:

2 passive relay outputs, isolated

contact max load AC250V/5A,DC30V/5A

(active outputs 0-5V customize)
Communication port RS485 (wireless RS485 customize)
Current
Transmit current: <350mA
Receiving current: <20mA
General
Frequency: 915MHz
Channel No: 16 channels, can change via DIP switch
Physical Properties
Dimension: 115×90×40(mm)
Antenna Connector: SMA,vehicle antenna with 1.5m cable
Temperature: -35℃~+75℃( industrial)
Mounting method: Standard 3.5 inch industrial guild rail

Features:

Switches ON the pump when the water in the overhead tank goes low level.

Switches OFF the pump when the water in the overhead tank reaches high level.

DI, DO, Power and Communication LED Lights.

Wireless connection, no need to switch ON/OFF the pump manually.

No more overflow thus saving water electricity & manpower.

Easy installation. Can do it by yourself.

No communication fee.

Hardware needed:

1. 24V DC Power supply (12V customize)

2. Float switch (with high and low level)

3. LS-RDIO0202 (with antenna)

4. Pump

5. Solid state relay

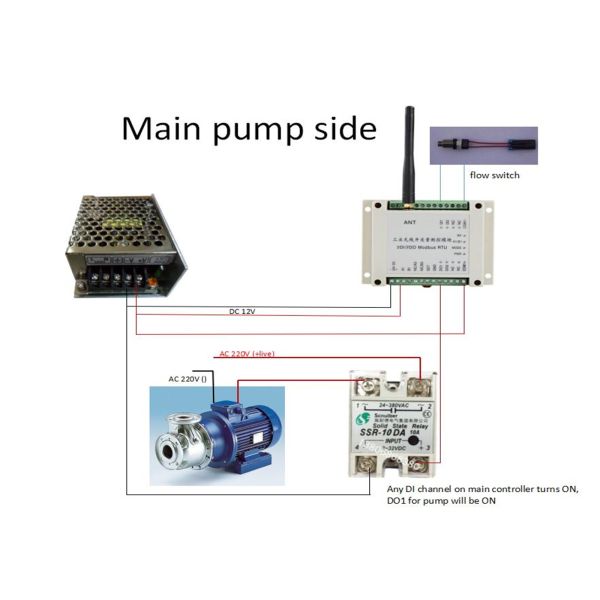

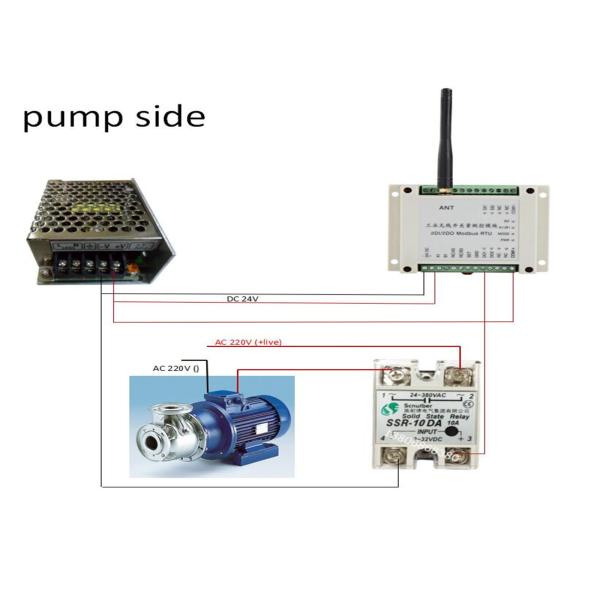

System diagram

When water level low, pump ON. When water level high, pump OFF
