Specifications
Brand Name :
Lensen
Model Number :
LS-RDIO0202+LS-R324
Place of Origin :
China
MOQ :
9pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
6000pcs/month
Delivery Time :
2-7 days
Packaging Details :
standard carton
Power output :
1W
Control distance :
2km LOS
Master :
1 wireless DTU
Slave :
8 wireless RTU
Protocol :
Modbus RTU
Frequency :
433MHz
Description

2km Wireless Modbus RTU I O Module Wireless ON OFF Control One Master To 8 Slaves

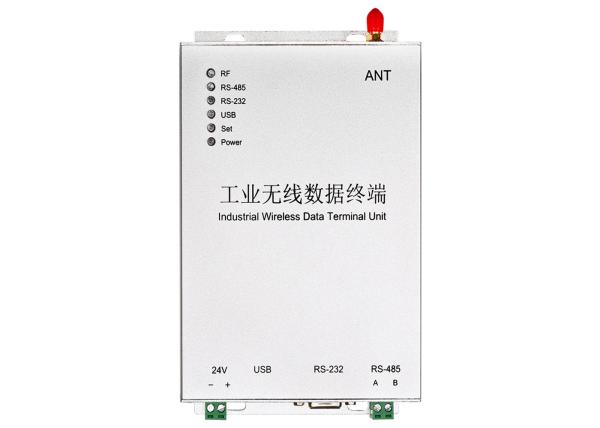

1. LS-R324 General Introduction

LS-R324 wireless DTU whose transmission distance reaches 3km LOS, supports wireless communication between Siemens S7-200, S7-300 series PLC, Schneider PLC, Mitsubishi PLC, ABB PLC etc. LS-R324 supports Modbus protocol, including Modbus ASCII and Modbus RTU protocol, PPI protocol.

LS-R324 DTU can also connect with VFD, HMI, PC for wireless communication. It supports point to point, point to multi-points wireless data transmission. Wireless solution has the advantage of keep users from wiring cables in dangerous field, easy to set up, no need program knowledge. It is a reliable and competitive solution.

2. Application Field

  • Pressure, flow rate, temperature etc data collections, wireless transmission and control in water/waste water treatment field
  • Wind speed, rainfall, humidity etc data collection, wireless transmission and control at whether monitoring station
  • Temperature, humidity, concentrations of CO2 etc data collection, wireless transmission and control in agriculture greenhouse
  • AGV wireless monitoring and control
  • Other kinds of OEM equipment wireless data collection and transmission
  • Wireless communication between PLC and sensors on Chemical machinery and equipment, oil field.

3. Technical specification

Frequency 433MHz or 450MHz, 470MHz
Power Output 1W(3000m LOS)
Protocol support Standard Modbus RTU protocol or user-defined protocol
Power supply 9-36V DC usually use 24V DC or 12V DC
Interface RS-485(default)or RS232 or USB
Channel No. 15 channel, use DIP to change
Antenna Free sucker antenna with 1.5m cable(buy 5.5dBi sucker antenna)
Temperature -35℃~+75℃ (industrial)
Dimension 175×115×32(mm) exclude antenna
Fix method Screw

4.LS-RDIO0202 Parameter

Parameter
Power output: 1W (or 100mW version)
Power supply: 9V-30V (usually choose 24V DC or 12V DC)
Control distance: 3km (or 1km version)
Baud rate: 1200bps
Receiving sensibility: -123dBm@1200bps, -118dbm(9600bps)
Networking
Networking: Point to point and point to multipoint
Protocol: Modbus RTU protocol
Port Description
Input: 2 active inputs (passive customize), isolated
Output:

2 passive relay outputs, isolated

contact max load AC250V/5A,DC30V/5A

(active outputs 0-5V customize)
Communication port RS485 (wireless RS485 customize)
Current
Transmit current: <600mA (or 100mA version)
Receiving current: <50mA (or 20mA version)
General
Frequency: 433MHz, 400, 450, 470 or other band
Channel No: 16 channels, can change via DIP switch
Physical Properties
Dimension: 115×90×40(mm)
Antenna Connector: SMA,vehicle antenna with 1.5m cable
Temperature: -35℃~+75℃( industrial)
Mounting method: Standard 3.5 inch industrial guild rail
