Low Power Wireless Radio Modem , UHF Data Radio 2km Wireless Control RS232 / RS485
Low Power Wireless Radio Modem , UHF Data Radio 2km Wireless Control RS232 / RS485
Low Power Wireless Radio Modem , UHF Data Radio 2km Wireless Control RS232 / RS485
Low Power Wireless Radio Modem , UHF Data Radio 2km Wireless Control RS232 / RS485
Low Power Wireless Radio Modem , UHF Data Radio 2km Wireless Control RS232 / RS485
Low Power Wireless Radio Modem , UHF Data Radio 2km Wireless Control RS232 / RS485
Specifications
Brand Name :
Lensen
Model Number :
LS-U1000P
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
6000pcs/month
Delivery Time :
2-7days
Packaging Details :
standard carton
Chip :
CC1020
Frequency :
UHF
Distance :
2km
Interface :
RS232/RS485/TTL
Power output :
1W
Enclosure :
Aluminium
Description

Low Power Wireless Radio Modem , UHF Data Radio 2km Wireless Control RS232 / RS485

Introduction:

LS-U1000P is a UHF band 1000mW data module. With elegant and easy-to-fix aluminum casing, 9-pin port, it is convenient for you to connect with devices with RS232, RS485, TTL interface. Easy to install, no program needed, no communication fee.

Parameter:

Power output: 5V DC default or 12V customized

RF power: 1W default or 500mW

Air baud rate: 1,200/2,400/4,800/9,600/19,200bps choose one

Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps programmable

Frequency band: 433, 450, 470 or others

Interface: RS-232/RS-485/TTL/USB

Communication mode: half-duplex

Channel: 8(default), 16/32(customized)

Receive current: <45mA(TTL connect)

Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)

Transmitting current: <500mA

RF line-of-sight range: 2km (BER=10-5@9600bps); 3km (BER=10-5 @ 1,200bps)

Size: 80*45*20mm(without antenna port)

PERFORMANCE
Power Output: 1W
RF Line-of-sight Range: 3km@1200bps; 2km@9600bps
RF Effective Rate: 1200/2400/4800/9600/19200bps
Space Channel: 1MHz(Default), (12.5/25KHz customization )
Bandwidth: <25KHz
Receiver Sensitivity: -123dBm@1200bps, -118dbm(9600bps)
Data format: 8N1, 8E1, 8O1 (customize)
COMPATIBILITY
LS-UN10, LS-UN100, LS-U1000, LS-U2000, LS-UN5000 series
POWER
Supply Voltage: 5V DC or 12V customize
Transmit Current: <500mA
Receive Current: <45mA
Sleep current: <20uA
GENERAL
Communication Mode: Half-duplex
Frequency Band: 433MHz or 400MHz, or 450MHz, 470MHz
Frequency modulation FSK/GFSK
Channel: 8(default),16/32/64(optional)
Interface: TTL, RS232, RS485 or USB(choose one)
PHYSICAL PROPERTIES
Size: 80mm×45mm×20mm
(excluding antenna base and data pin)
Weight: 200g
Antenna Base: 50Ω, SMA
Operating Temperature: Industrial:-40℃~+85℃(TCXO)
Frequency Stability: ±2.5ppm Industrial

Application:

Queuing machine wireless control

Automatic meter reading

LED display/ LED sign

PTZ wireless Monitoring

Factory automation

Irrigation system

Data telemetry

Robotics control

Home automation

Pin Definition (9 pin)

Pin No.

Signal

Name

 Function Level Connection with terminal Remarks
1 GND Grounding of power supply Ground
2 VCC Power supply DC 5V
3 RxD/TTL Data receiving TTL TxD
4 TxD/TTL Data transmitting TTL RxD
5 SGND Signal
6 A (TXD) A of RS-485 (TxD of RS-232) A(RxD)
7 B (RXD) B of RS-485 (RxD of RS-232) B(TxD)
8 SLEEP Sleep control TTL Sleep signal Low level valid
9 TEST Factory testing

Install Dimension

Low Power Wireless Radio Modem , UHF Data Radio 2km Wireless Control RS232 / RS485

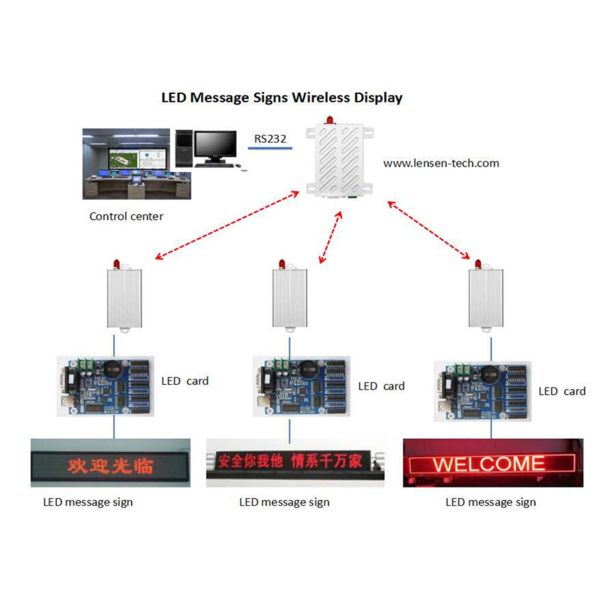

Application Diagram example

Low Power Wireless Radio Modem , UHF Data Radio 2km Wireless Control RS232 / RS485
