450MHz Wireless Radio Modem
450MHz Wireless Radio Modem
450MHz Wireless Radio Modem
450MHz Wireless Radio Modem
Specifications
Brand Name :
Lensen
Model Number :
LS-U5000
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
6000pcs/month
Delivery Time :
3-6 days
Packaging Details :
carton
Power output :
5W
Distance :
10km
Frequency :
UHF
Enclosure :
aluminium
Description

450MHz Wireless Radio Modem

5W UHF Radio Modem 433MHz / 450MHz / 470MHz Wireless Data Transceiver Aluminium Enclosure

Introduction:

LS-U5000 is a UHF band 5W radio modem, can transmit around 10km LOS. With good performance heat dissipation aluminum shell, DB9 port, it is convenient for you to connect with other devices that have RS232, RS485 or TTL interface. This device is widely used for SCADA, DTU, and Long distance wireless control. Easy to install, no program needed, long transmission distance, no communication fee.

Parameter:

  • Power output: 12V customized
  • RF power: 5W
  • Air baud rate: 1,200/2,400/4,800/9,600/19,200bps choose one
  • Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps programmable
  • Frequency band: 433, 450, 470 or others
  • Interface: RS-232/RS-485/TTL
  • Communication mode: Half-duplex
  • Channel: 8(default), 16/32(customized)
  • Receive current: <60mA (TTL connect)
  • Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)
  • Transmitting current: <1.5A
  • RF line-of-sight range: 2km (BER=10-5@9600bps); 3km (BER=10-5 @ 1,200bps)
  • Size: 95*60*25mm (without antenna port)
PERFORMANCE
Power Output: 5W
RF Line-of-sight Range: 10Km@1200bps; 8Km@9600bps
RF Effective Rate: 1200/2400/4800/9600/19200bps
Space Channel: 1MHz(Default),
Bandwidth: <25KHz
Receiver Sensitivity: -123dBm@1200bps (1% BER)
NETWORKING
Networking Topology: Point-to-point, point-to-multipoint
COMPATIBILITY
LS-U series, LS-RDIO series, LS-RAIO series, LS-R series
POWER
Supply Voltage: 12V DC
Transmit Current: <1.5A
Receive Current: <60mA
Sleep current: <1mA
GENERAL
Communication Mode: Half-duplex
Frequency Band: 470MHz (400/433/450MHz optional)
Channel: 8(default),16/32/64(optional)
Interface: RS485 (TTL/ RS232/USB optional)
PHYSICAL PROPERTIES
Size: 95mm*60mm*25mm
(excluding antenna base and data pin)
Weight: 400g
Antenna Base: 50Ω, SMA
Operating Temperature: Industrial:-40℃~+80℃(TCXO)

Application:

  • Water Plant wireless control
  • PLC communication
  • SCADA
  • LED display/ LED sign
  • PTZ wireless Monitoring
  • Factory automation
  • Handhold device
  • Irrigation control
  • Data telemetry
  • Process control

Pin Definition:

Pin No. Signal Name Function Level Connection with terminal Remarks
1 GND Grounding of power supply Ground
2 B(TxD) RS-485 B or TxD of RS-232
3 A(RXD) RS-485 A or RXD of RS-232
4 NC
5 SGND Signal
6 RXD/TTL Data receiving TTL Level
7 TXD/TTL Data transmitting TTL Level
8 SLEEP Sleep control TTL Sleep signal Low level valid
9 TEST Factory testing TTL

Advantage

- No wires to bury or maintain, no need to drill holes on wall

- Reliable communication in all direction,any terrain, regardless of hills, walls, trees

- Cost saving in installation and maintenance

- Radio based, no need internet and monthly fee, full ownership of the system

- 4G based, high speed, no distance limit

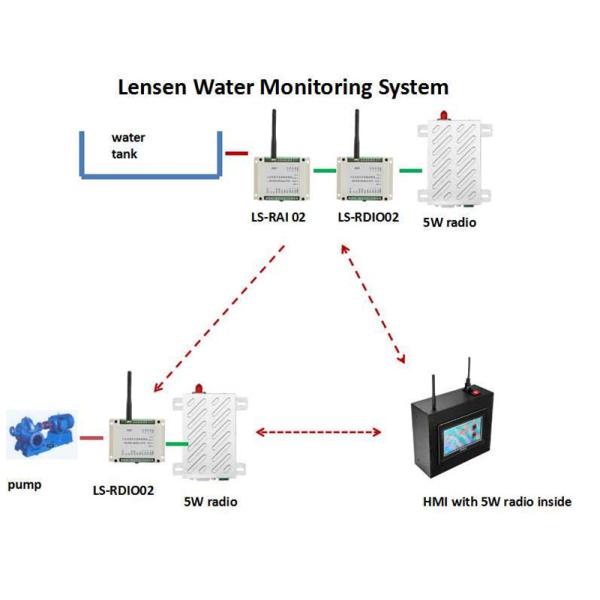

Application example:

450MHz Wireless Radio Modem

450MHz Wireless Radio Modem
