Specifications
Brand Name :
Lensen
Model Number :
LS-U100S
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
6000pcs/month
Delivery Time :
2-7 days
Packaging Details :
standard carton
Frequency :
433MHz
Power output :
100mW
Distance :
1km
Enclosure :
plastic
Description

100mW Wireless Data Module RS232 Interface 500m Wireless Data Transmission 433MHz

Introduction:

LS-U100S-RS232 is a UHF band 100mW data module. With elegant plastic casing, RS232 cable, it is convenient for you to connect Computer and other RS232 port devices. Easy to install, no program needed, no communication fee.

Parameter:

  • Power output: USB power supply (5V)
  • RF power: 100mW
  • Air baud rate: 1,200/2,400/4,800/9,600/19,200bps choose one
  • Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps programmable
  • Frequency band: 433, 450, 470, 868, 915 or ISM others
  • Interface: RS-232
  • Communication mode: half-duplex
  • Channel: 8(default), 16/32(customized)
  • Receive current: <35mA
  • Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)
  • Transmitting current: <100mA
  • RF line-of-sight range: 600m (BER=10-5@9600bps); 1,000m (BER=10-5 @ 1,200bps)
  • Size: 68x 45 x 18mm (without antenna port)
PERFORMANCE
Power Output: 100mW
RF Line-of-sight Range: 600m@9600bps
RF Effective Rate: 1200/2400/4800/9600/19200bps
Space Channel: 1MHz(Default), (12.5/25KHz customization )
Bandwidth: <25KHz
Receiver Sensitivity: -120dBm@1200bps, -115dbm(9600bps)
Data format: 8N1, 8E1, 8O1 (customize)
COMPATIBILITY
LS-U100, LS-U1000, LS-UN5000 series
POWER
Supply Voltage: 5V DC
Transmit Current: <40mA
Receive Current: <20mA
Sleep current: <20uA
GENERAL
Communication Mode: Half-duplex
Frequency Band: 400MHz, or 450MHz, 470MHz
Frequency modulation FSK/GFSK
Channel: 8(default),16/32/64(optional)
Interface: RS232
PHYSICAL PROPERTIES
Size: 47mm×26mm×10mm
(excluding antenna base and data pin)
Weight: 20g

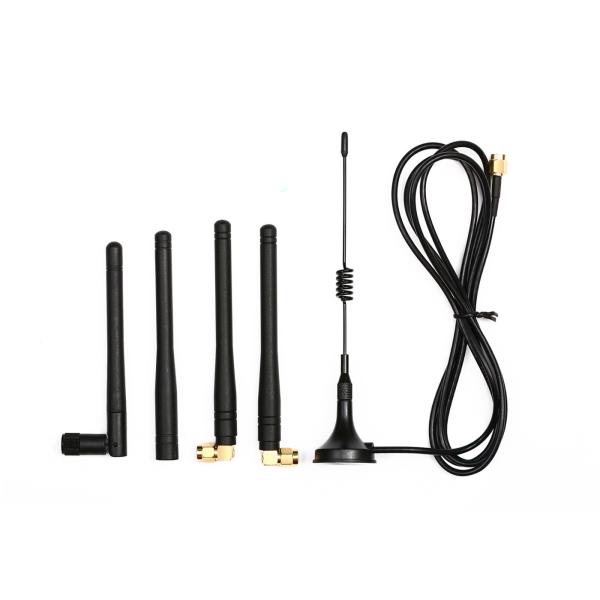

Antenna Base: 50Ω, SMA
Operating Temperature: Industrial:-40℃~+85℃(TCXO)
Frequency Stability: ±2.5ppm Industrial

Application:

Queuing machine wireless control

LED display/ LED sign

Factory automation

Handhold device

Irrigation system

RS232 to wireless

Robotics control

Home automation

PIN Definition:

DB9 to connect with your device’s RS232 port

USB to supply power

Parameter setting by our software

You can use our software to read or set the parameter on computer.

Channel No. Frequency Channel No. Frequency
1 429.0325MHZ 5 433.0325MHZ
2 430.0325MHZ 6 434.0325MHZ
3 431.0325MHZ 7 435.0325MHZ
4 432.0325MHZ 8 436.0325MHZ
Note: the frequency points corresponding to each channel can be adjusted based on the user’s needs.
