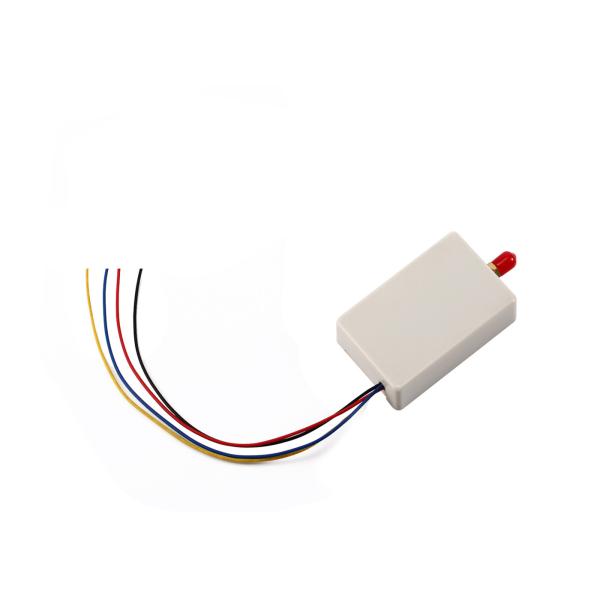

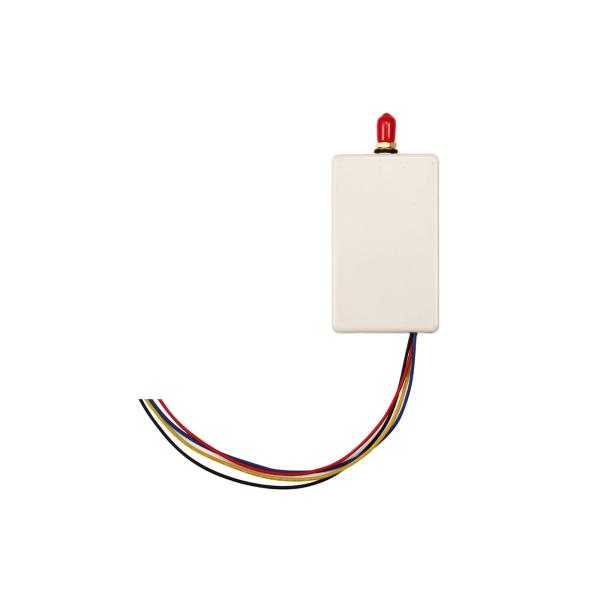

RS485 Data Module 100mW Wireless Data Trasnmitter 433MHz data Transfer
RS485 Data Module 100mW Wireless Data Trasnmitter 433MHz data Transfer
RS485 Data Module 100mW Wireless Data Trasnmitter 433MHz data Transfer
RS485 Data Module 100mW Wireless Data Trasnmitter 433MHz data Transfer
RS485 Data Module 100mW Wireless Data Trasnmitter 433MHz data Transfer
RS485 Data Module 100mW Wireless Data Trasnmitter 433MHz data Transfer
RS485 Data Module 100mW Wireless Data Trasnmitter 433MHz data Transfer
RS485 Data Module 100mW Wireless Data Trasnmitter 433MHz data Transfer
Specifications
Brand Name :
Lensen
Model Number :
LS-U100S-B
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
6000pcs/month
Delivery Time :
2-7 days
Packaging Details :
standard carton
Power output :
100mW
Distance :
500m
Frequency :
433MHz
Enclosure :
plastic
Description

100mW RF Data Module RS485 Wireless Data Module 433MHz Wireless Transfer RS485

Introduction:

LS-U100S-RS485 is a UHF band 100mW data module. With elegant plastic casing, it is convenient for you to connect with RS485 devices. Easy to install, no program needed, no communication fee.

Parameter:

  • Power output: 5V DC
  • RF power: 100mW
  • Air baud rate: 1,200/2,400/4,800/9,600/19,200bps choose one
  • Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps programmable
  • Frequency band: 433, 450, 470, 868, 915 or ISM others
  • Interface: RS485
  • Communication mode: half-duplex
  • Channel: 8(default), 16/32(customized)
  • Receive current: <40mA(TTL connect)
  • Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)
  • Transmitting current: <100mA
  • RF line-of-sight range: 600m (BER=10-5@9600bps); 1,000m (BER=10-5 @ 1,200bps)
  • Size: 68x 45 x 18mm (without antenna port)

PERFORMANCE
Power Output: 100mW
RF Line-of-sight Range: 1000m@1200bps; 600m@9600bps
RF Effective Rate: 1200/2400/4800/9600/19200bps
Space Channel: 1MHz(Default), (12.5/25KHz customization )
Bandwidth: <25KHz
Receiver Sensitivity: -120dBm@1200bps, -115dbm(9600bps)
Data format: 8N1, 8E1, 8O1 (customize)
COMPATIBILITY
LS-UN10, LS-U100, LS-U1000, LS-UN5000 series
POWER
Supply Voltage: 5V DC
Transmit Current: <40mA
Receive Current: <20mA
Sleep current: <20uA
GENERAL
Communication Mode: Half-duplex
Frequency Band: 400MHz, or 450MHz, 470MHz
Frequency modulation FSK/GFSK
Channel: 8(default),16/32/64(optional)
Interface: TTL, RS232, RS485 (choose one)
PHYSICAL PROPERTIES
Size: 47mm×26mm×10mm
(excluding antenna base and data pin)
Weight: 20g
Antenna Base: 50Ω, SMA
Operating Temperature: Industrial:-40℃~+85℃(TCXO)
Frequency Stability: ±2.5ppm Industrial

Application:

Queuing machine wireless control

LED display/ LED sign

Factory automation

Handhold device

Irrigation system

RS485 to wireless

Robotics control

Home automation

PIN Definition:

Red cable---VCC 5V (Power supply DC)

Black cable----GND (Grounding of power supply)

Blue cable----485 A

Yellow cable---485 B
