1W RS485 Wireless Data Module AMR 2km Wireless Control RS485 To PTZ Wireless Controller

Introduction:

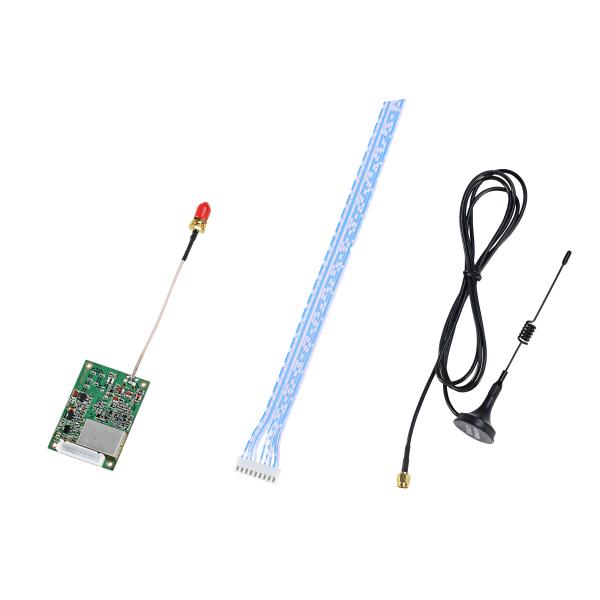

LS-U1000S-RS485 is a UHF band 1000mW data module. With elegant plastic casing, it is convenient for you to connect with RS485 devices for outdoor applications. Easy to install, no program needed, no communication fee.

Parameter:

Power output: 5V DC or other customized

RF power: 1W

Air baud rate: 1,200/2,400/4,800/9,600/19,200bps choose one

Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps programmable

Frequency band: 433, or 400, 450, 470 or ISM others

Interface: RS485

Communication mode: Half-duplex

Channel: 8(default), 16/32(customized)

Receive current: <50mA (TTL connect)

Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)

Transmitting current: <500mA

RF line-of-sight range: 2km (BER=10-5@9600bps); 3km (BER=10-5 @ 1,200bps)

Size: 68x 45 x 18mm (without antenna port)

Application:

• SCADA
• AMR (Automatic Meter Reading)
• Camera control (PTZ)
• Sports scoreboard control
• Electronic signs and message boards
• GPS fleet tracking
• Security systems
• Vending machine monitoring
• Remote weather systems
• Remote parking and gate access systems
• Remote weigh scales
• HVAC control
• Remote pump station control
• Homeland defense
• Robotics and control
• Wireless inventory control applications
• Pivot irrigation
• Airborne telemetry
• Remote instrumentation
• Wireless pressure and temperature sensors

PIN Definition:

Red cable---VCC 5V (Power supply DC)

Black cable----GND (Grounding of power supply)

Blue cable----485 A

Yellow cable---485 B

Channel Configuration:

Each channel has its fixed frequency point which is pre-written to MCU in factory. The following is the configuration table for our common module. If you need other frequency points, please tell our sales when you place order.
