10.1inch TFT LCD Touch Screen Panel Ethernet Port With HMI Software
10.1inch TFT LCD Touch Screen Panel Ethernet Port With HMI Software
Specifications
Brand Name :
Lensen
Model Number :
LS-MR1001
Certification :
CE
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
6000pcs/month
Delivery Time :
2-8 days
Packaging Details :
standard carton
Type :
10.1inch TFT HMI
Resolution :
1024*600
Brightness :
350
Port :
RS232, RS485, USB
Material :
Engineering Plastic
CPU :
ARM Cortex-A7 Dual core 1GHz
Description

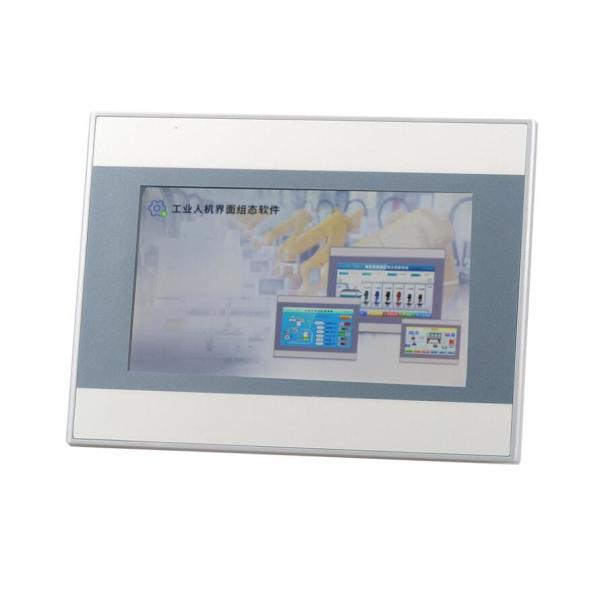

10.1inch TFT LCD Touch Screen Panel Ethernet Port with HMI software

10'' HMI COM Port Touch Screen Panel Ethernet Port HMI for Industry Automation

Use this touch-screen display to easily and precisely control your applications. It comes with HMI software that covers all essential logic functions, letting you easily optimise the performance of your automated processes. The device has 64MB of onboard memory so it can quickly handle your inputs for efficient project monitoring. Its large 7-inch screen uses touch-based TFT technology for an intuitive user experience. With a resolution of 800 by 480px, it gives a clear picture even when handling complex information. Thanks to Ethernet connectivity, the unit offers you a secure link to your controller.

Suitable for Delta PLC Haiwell PLC,South Korea LS PLC MODBUS protocol communication Mitsubishi PLC Omron PLC Panasonic PLC Schneider PLC Siemens PLC Xinje PLC

Type Parameter Value

Display

 Screen size: 10.1" TFT LCD
Resolution: 1024*600
Brightness(cd/m2): 350
Contrast Ratio: 500:1
Backlight Type : LED
Backlight Life Time : >50,000 hrs.

Colors :

 16.7M
LCD Viewing Angle: (T/B/L/R) : 80/80/80/80
Touch screen Touch Panel Type : 4-wire Resistive Type
Touch Panel Accuracy : Active Area Length(X)±2%, Width(Y)±2%
Memory Flash : 128 MB
RAM : 128 MB
Processor ARM Cortex-A7 1.2GHz
Port USB Host I/O Port: USB 2.0 x 1
RS232: COM 1, COM3
RS485: COM2: 2W/4W, COM3: 2W
Ethernet: 10/100Mbps Base-T x 1
4G: Expandable
RTC Built-in
Power Input Power : 9-36±10% VDC
Power Consumption : 620mA@24VDC
Power Isolation : Built-in
Voltage Resistance : 500VAC (1 min.)
Isolation Resistance : Exceed 50MΩ @ 500VDC
Dimension Vibration Endurance : 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Dimension : 272*215*43mm
Enclosure : Plastic
Panel Cutout : 260 x 202 mm
Mount : Panel mount
Weight Approx. : 1.2 kg
Working Condition Protection Structure :

IP65 Compliant Front Panel,

IP20 Compliant Back Panel
Storage Temperature : -20°~60°C (-4° ~ 140°F)
Operating Temperature : 0° ~ 50°C (32° ~ 122°F)
Relative Humidity : 10% ~ 90% (non-condensing)
Certificate CE: Complaint
Software PC software: Smart manager PRO V2.05 or higher version
