25W VHF Radio Modem 150MHz Audio Radio Marine Wireless Monitoring

LS-V25000 25W power output radio modem.

We support RS232, RS485 or TTL interface, you can choose one

It is OK to transmit data or Voice

For data transmission, its baud rate is 1200bps or 2400bps.

I: Features:

1. High power output: 25W

2. Long transmission distance: up to 20km

3. VHF band 150MHz band or 230MHz band or 450MHz

4. Data transmission, voice transmission both ok

5. Double PLL, double VCO, High reliability

6. VOX function

II. Data sheet

A,General Index

● frequency:VHF and UHF frequency band (150MHz, 230MHz), can store about 400 channels

● frequency tolerance:±2.5ppm

● Channel spacing:25 KHz

● antenna impedance:50Ω

● environment temperature:-35 ℃~+75 ℃

● modulate mode:MSK

● air baud rate:1200bps/2400bps

B,Receiver Index

● sensitivity: ≤0.25uV

● ignal Noise Ratio(SNR): ≤-50dB

● Adjacent Channel Selectivity: ≥70dB

● Inter modulation interference: ≥70dB

● Spurious respouse immunity: ≥70dB

C,Transmitter Index

● Transmit Power: 25W

● modulate distortion: ≤3%

● residual frequency modulation: ≤-48dB

● frequency deviation: ≤5KHz

● ortho-channel power ratio: ≤-70dB

● stray power: ≤5uW

● RF distance: 20km(25W RF power in the open air)

D,Power supply

● DC: 12 V (±10%)

● waiting current: ≤ 1 6 0 m A

● transmitting current: ≤ 6 A ( transmit power 25W )

E,Dimension:

128*108*28mm

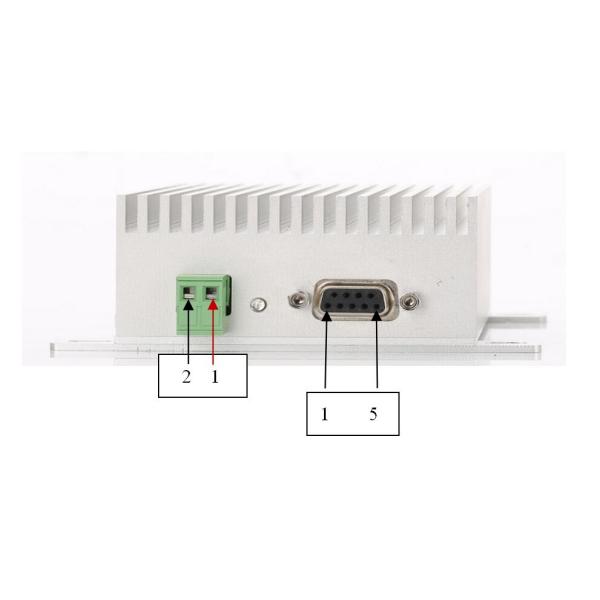

III. Pin Definition

Application of LS-V25000

Salvage, Marine control

public traffic

industrial automatic control

electric power schedule

water conservancy monitor

signal collection and transmission of railway system

oil extraction and transportation control

measure of oil or water wells

hydrological monitoring

weather station monitoring

forest protection

intelligent building

geological reconnoiter

mobile location

military training
