LS-THG-IP Series Current Input Signal Converter Din Rail Mounting DC24V Power Supply
LS-THG-IP Series Current Input Signal Converter Din Rail Mounting DC24V Power Supply
LS-THG-IP Series Current Input Signal Converter Din Rail Mounting DC24V Power Supply
LS-THG-IP Series Current Input Signal Converter Din Rail Mounting DC24V Power Supply
LS-THG-IP Series Current Input Signal Converter Din Rail Mounting DC24V Power Supply
LS-THG-IP Series Current Input Signal Converter Din Rail Mounting DC24V Power Supply
Specifications
Brand Name :
LS
Model Number :
LS-THG-IP
Certification :
CE
Place of Origin :
China
MOQ :
2pc
Price :
negociate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs
Delivery Time :
3-6 days
Packaging Details :
standard
Input :
4-20mA; 0-20mA
Output :
4-20mA; 0-20mA; 0-5V; 0-10V
Mounting way :
Din-rail Mounting
Power supply :
24V DC
Description

Input

Input signal: 4-20mA; 0-20mA

Distribution voltage: 24V, (maximum drive current 30mA)

Input impedance: ≤50Ω

Output

Output signal: 4-20mA; 0-20mA; 0-5V; 0-10V

Output load resistance: RL ≤ 500Ω (when the output is a current signal); RL ≥ 10KΩ (when the output is a voltage signal)

Basic parameters

Power supply: DC24V, ±10%

Current consumption: ≤50mA (one input and one output, 24V power supply, power distribution input, 20mA output); ≤70mA (one input and two output, 24V power supply, power distribution input, 20mA output); ≤100mA (two in two out , 24V power supply, power distribution input, 20mA output)

Basic accuracy: 0.1% F.S.

Temperature drift: 0.005% F.S. / degree (-20 degrees ~ +55 degrees)

Response time: ≤10mS (0-90%) (TYP)

Insulation strength: 1500V AC / 1min (between input, output, and power)

Insulation resistance: ≥100MΩ (between input, output, and power)

Operating temperature range: -20~+55 degrees

Electromagnetic compatibility: in accordance with GB/T 18268 (IEC61326-1)

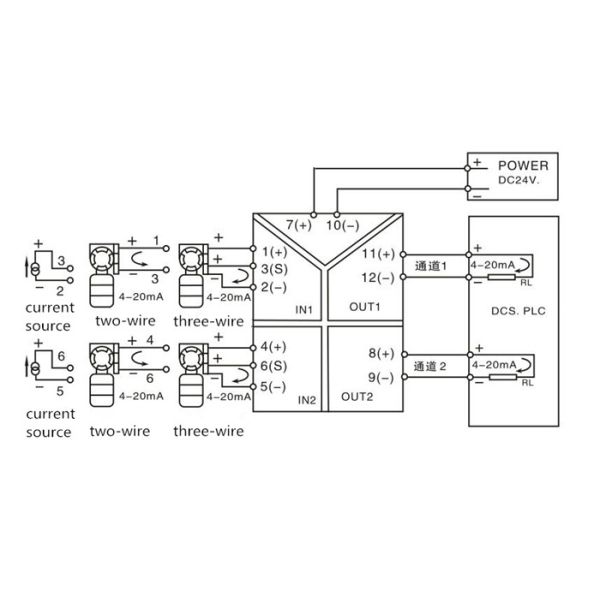

Applicable field devices: two-wire system, three-wire transmitter; current source.

Parameter
THG-IP X X X marks
Configuration 1 1 input 1 output
2 1 inputs 2 outputs
5 2 inputs 2 outputs
Input signal 1 4-20mA
2 0-20mA
Output signal 1 4-20mA
2 0-20mA
4 0-5V
6 0-10V
Please indicate your required input type and output type when place order
