DC24V PLC Programmable Logic Controller Industrial Automation Using
DC24V PLC Programmable Logic Controller Industrial Automation Using
Specifications
Brand Name :
Unimat
Model Number :
X1-60TD
Certification :
CE
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
6000pcs/month
Delivery Time :
2-8 days
Packaging Details :
standard carton
Color :
White
Fuse :
60V 2A
Input :
NPN/PNP
Output :
16
Description

DC24V PLC Programmable Logic Controller Industrial Automation Using

X1-60TD PLC for Industry Automation Low Cost PLC

Parameters

Item No. Specifictions
Part No. X1-60TD-E0
Voltage DC24V
Voltage range DC 20.4～28.8V
Allowed voltage continue to operate for the instantaneous power failure less than 5ms
Fuse 60V 2A
Surge Current 12A,0.5ms below/28.8V DC
Power consumption 8W
DC24V power supply 600mA below
Input specifications
Input 36
Connection method Detachable terminal block (M3 screw)
Input method NPN/PNP
Input signal voltage DC power supply type: dc20.4v ～ 28.8v
Input impedance X0-X2 2.4K
X3 above 5.6K
ON Input induced current X0-X2 More than 5mA
X3 above More than 2.4mA
OFF Input induced current 1mA below
Input response time No more than 4.5ms
Input signal form Voltage free contact input
Drain input: NPN open collector transistor
Source type input:PNPOpen collector transistor
Input circuit isolation Optocoupler isolation
Display of input When the optocoupler is driven, the LED light on the panel is on
Output specifications
Output 16
Connection method Detachable terminal block (M3 screw)
Output method NPN/PNP
External Power supply DC5～30V
Max load Resistive load 0.5A/single point；0.8A/4 points
inductive load 12W/DC24V
Light load High speed:2W/DC24V,common:5W/DC24V
Min Load 5mA(DC5～24V)
Open circuit leakage current 0.1mA以下/DC30V
Turn on resistance High speed point 0.3Ω typical(Max0.6Ω)
response time OFF→ON High spend:10μs below/10mA above(DC5～24V)
Ordinary :0.2ms below/200mA above (DC24V)
ON→OFF High spend:10μs below/10mA above(DC5～24V)
Ordinary:0.2ms以下/200mA above(DC24V)
Loop isolation Optocoupler isolation
Display of output action When the optocoupler is driven, the LED light on the panel is on
Shield transmission distance 500M(ordinary output)
Unshielded transmission distance

150M(ordinary output)

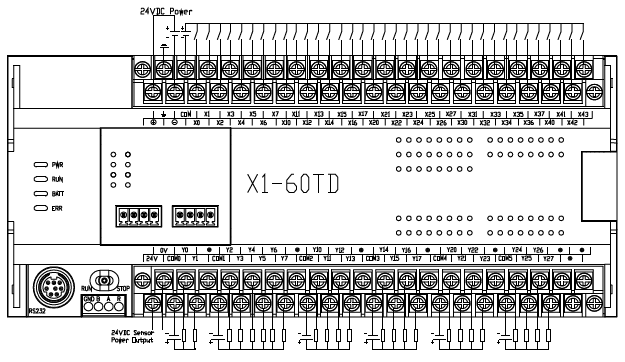

Wiring Diagram

DC24V PLC Programmable Logic Controller Industrial Automation Using
