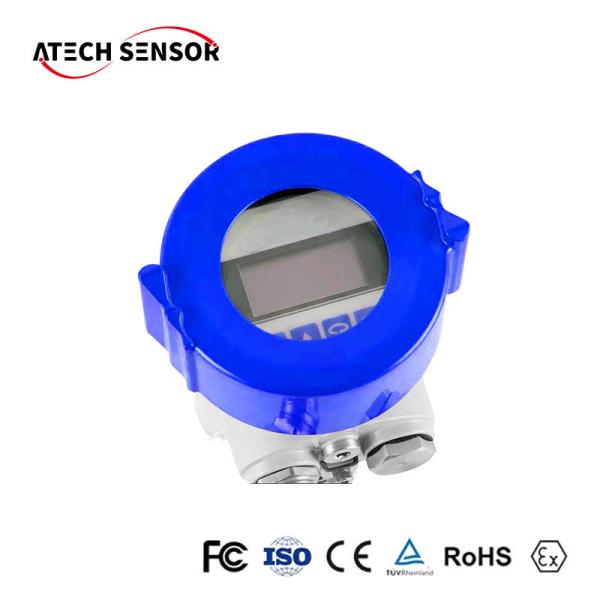

80GHz Liquid Tank Radar Type Level Sensor Transmitter Contactless
80GHz Liquid Tank Radar Type Level Sensor Transmitter Contactless
Specifications
Brand Name :
Atech sensor
Model Number :
PL806
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs month
Delivery Time :
5-8 working days
Packaging Details :
standard export packing ,carton packing, water proof, shock resistance or according to customer's requirements.
Frequence Range :
80GHz
Humidity :
0% -95% RH
Power consumption :
max.22.5mA
Relative humidity :
＜95%
Ingress Protection :
IP66
Signal Output :
4-20mA
Description

Contactless Tank Liquid Radar Type Level Sensor Radar Level Transmitter Specification Measurement

hot sale oem radar fuel tank level detectorl meter sensor

LM806 Radar level meter uses the millimeter wave band with a higher frequency than the Ku-band radar.It has important applications in long-distance target detection, strong smoke and dust environments, long-distanceimaging, multi-spectral imaging, etc.And it can detect smaller targets and achieve more precise positioning than microwave radar, with higher resolution and stronger secrecy.

Radar level sensors are mounted above the liquid level on the top of the tank, or on a platform that spans the top of the open tank.

Speifications

Technical Specifications
Measure Range
5-30 meters
Frequence Range
80GHz
Humidity
0% -95% RH
Ambient Temperature
-20℃~70℃
Storage Temperature
-40℃~60℃
Ingress Protection
IP66
Accuracy
0.1%FS
Display
128*64 LCD
Electrical interface
M20*1.5(F)
Signal Output
4-20mA
RS485/Modbus or HART
Power Supply
DC24V (22V~30V)

FEATURES AT A GLANCE

1.Small antenna size, easy to install

2.Non-contact radar, no wear, no pollution
3.Serious dust environment on the high level meter work has little effect.
4.A shorter wavelength, the reflection of solid surface inclination is better
5.Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
6.The measuring range is smaller, for a measurement will yield good results.
7.High signal-to-noise ratio, the level fluctuation state can obtain better performance.
8.High frequency, measurement of solid and low dielectric constant of the best choice.

80GHz Liquid Tank Radar Type Level Sensor Transmitter Contactless80GHz Liquid Tank Radar Type Level Sensor Transmitter Contactless

WHY CHOOSE US ??

We offers supporting products and solutions for one-stop-service and in industries as widespread as oil & gas, water & wastewater, chemical & petrochemical in more than 30 countries.Businness is also a way to friendship. Looking forward to your coming

80GHz Liquid Tank Radar Type Level Sensor Transmitter Contactless

80GHz Liquid Tank Radar Type Level Sensor Transmitter Contactless
