LCD Display Wireless Fuel Pressure Gauge , Metallurgy Digital Air Pressure Gauge
LCD Display Wireless Fuel Pressure Gauge , Metallurgy Digital Air Pressure Gauge
Specifications
Brand Name :
Atech sensor
Model Number :
PT701-1
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs month
Delivery Time :
5-8 working days
Packaging Details :
standard export packing ,carton packing, water proof, shock resistance or according to customer's requirements.
Pressure medium :
liquid compatible stainless steel
Pressure ranges :
0~60MPa
Overload pressure :
150%FS
Output signal :
zigbee wireless signal transmission
Accuracy :
0.5%FS (standard)
long term stability :
0.2%FS/year
supply voltage :
3.6VDC（battery supply）
compensated temperature range :
-40~60°c
Description

Feature

♦±0.5%F.S

♦High accuracy intelligent pressure measuring instrument

♦Zigbee Wireless Telecommunication

♦Small size ,easy installation

♦Self organized Mesh net.

♦Battery Power Supply, low comsumption.

♦LCD display

Application
♦Outdoor or inconvenient power supply occasions

♦Pipeline pressure monitoring
♦Metallurgy, chemistry

Description

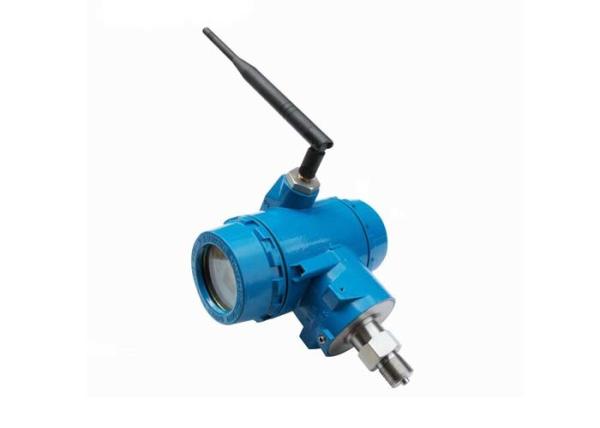

PT701-1 Wireless pressure transmitter is the terminal of the measuring system with battery supply, wireless communication function and LCD display. Using the embedded Zigbee Wireless communication module uses a 2.4GHz RF transceiver meet Zigbee protocol standard, as well as CSMA / CA anti-collision mechanism effectively avoid channel blocking send data at the same time and data loss. Using single battery, low consumption design, and working life of batterycould be reach more than half a year.

Specifications

test condition of data:25°C(77°F)

Specification Value
GPT242A GPT242AB
Pressure Range 0-60MPa
Accuracy ±0.5%F.S
Compensated Temperature -40°C~60°C
Power Supply 3.6V lithium battery
Average Consumption < 2mW
Communication Frequency 2.405GHz-2.480GHz
Baud Rate 38400bps
Transmission Distance 200meter
Pressure Port M20x1.5
Protection class IP65
Data update frequency Sent once every 3 minutes(or Customer's request)
Battery life More than 15 days More than half a year
LCD Display Yes No
