IP 65 I2C/SPI Digital OEM Pressure Sensor Water Air Oil Test
IP 65 I2C/SPI Digital OEM Pressure Sensor Water Air Oil Test
IP 65 I2C/SPI Digital OEM Pressure Sensor Water Air Oil Test
IP 65 I2C/SPI Digital OEM Pressure Sensor Water Air Oil Test
Specifications
Brand Name :
Atech pressure sensor
Model Number :
PS19 pressure sensor I2C output
Certification :
CE RoHs Exprosion proof
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs month
Delivery Time :
7 work days
Packaging Details :
standard export packing according to customer's requirements Low Cost I2C/SPI Digital Pressure Sensor for water air oil test
Range :
-100Kpa...0Kpa- -10Kpa....7Mpa
output signal :
IIC pressure sensor
long term stability :
0.25 %FS/year
supply voltage :
3.3V 5V
sensor cell :
sillicon pressure sensor
Application :
swimming pool robot
Response time :
<1ms
protection level :
IP 65
OEM servise :
yes
delivery time :
2 weeks
Description

Low Cost I2C/SPI Digital Pressure Sensor for water air oil test

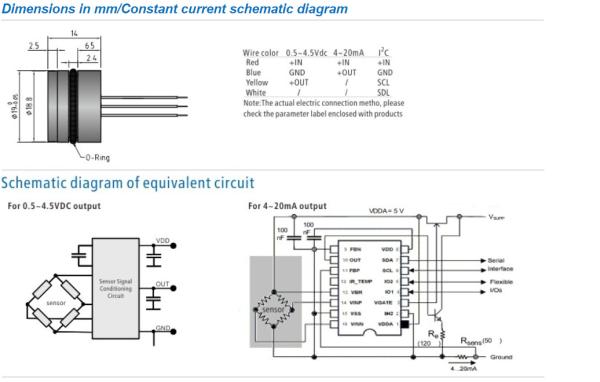

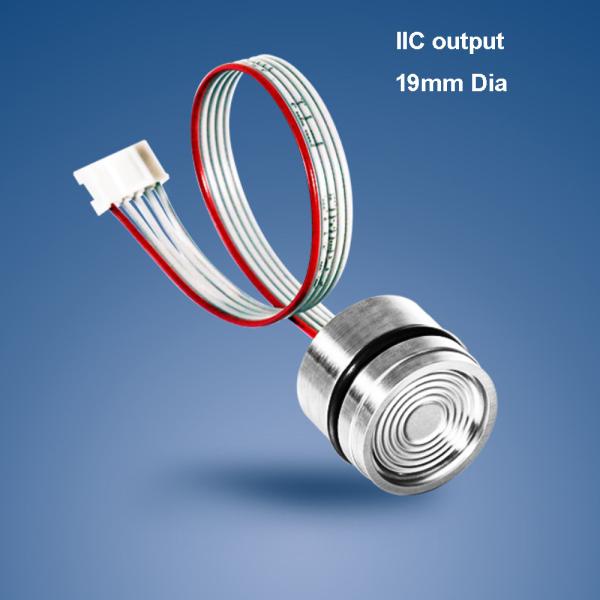

PS19 pressure sensorhigh-quality silicon piezoresistive sensor chip. The piezoresistive sensor chip is packaged in a fluid-filled cylindrical cavity and isolated from measured media by a stainless steel diaphragm and housing. The output of NPS19A can be configured to 10%~90%Vs ratiometric,4~20mA, I2C by integrated the electronics.Integrated the electronicsis used for temperature compensation, offset correction.

Amplified output (ASIC inside)

I²C

0.5 to 4.5V

CE certificate

Features

- 100mbar to 100bar (1.45psi to 1450psi )

- Absolute, gauge and sealed gauge

- ±0.5% static accuracy

- Calibrated and temperature compensated

- Rugged 316L stainless steel isolated package

- Piezoresistive sensor design

- 0.5~4.5Vdc(ratiometric),I2C interface

- ASIC Calibrated

- Solid state, high reliability

- Custom configurations and other pressure ranges available. Please consult the factory.

Applications

- Process control systems

- Refrigeration and HVAC controls

- Hydraulic systems and valve

- Pharmaceutical engineering

- Level measurement

- Ship and marine systems

IP 65 I2C/SPI Digital OEM Pressure Sensor Water Air Oil Test

Speifications

Parameter Value Units
General Pressure Range 0-0.1,...,100 bar
Overpressure 1.5xFS bar
Environmental Operating Temp.Range -20 to +80 °C
Compensated Temp.Range 0 to 70 °C
Vibration 10 g(20 to 2000Hz)
Shock 100 g(10ms)
Cycles 10x106 cycles
Electrical @25°C(77°F)

Analog signal

Analog signal

Digital signal

0.5~4.5

4~20

I2C

VDC@5VDC

mA@24VDC

@3.3VDC
Insulation Resistance 100 MΩ@50VDC
Physical Specifications Media Compatibility All media compatible with 316L SS
Housing 316L stainless steel
Diaphragm 316L stainless steel
Seal Ring Viton or NBR
Oil Filling Silicone oil
Net Weight Approx.14g
Performance1 Accuracy2 ±0.25[typ.] % FSO
Temp. Coeff– Zero3 ±0.75[typ.] % FSO
Temp. Coeff– Span3 ±0.75[typ.] % FSO
Long-Term Stability ±0.3[typ.] % FSO

IP 65 I2C/SPI Digital OEM Pressure Sensor Water Air Oil Test

IP 65 I2C/SPI Digital OEM Pressure Sensor Water Air Oil Test
IP 65 I2C/SPI Digital OEM Pressure Sensor Water Air Oil Test

IP 65 I2C/SPI Digital OEM Pressure Sensor Water Air Oil Test

PS19pressure sensor is widely used in:

Process control system Air compressor Refrigeration system

CNGSNG gas station Natural gas HVAC

Oil pumpdrilling Food industry Chemical industry

Hydraulic control system pump&water system Others

IP 65 I2C/SPI Digital OEM Pressure Sensor Water Air Oil Test
