PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water
PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water
PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water
PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water
PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water
PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water
PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water
PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water
Specifications
Brand Name :
Atech
Model Number :
PT207 pressure transmitter
Certification :
CE, RoHs ,FDA , ISO 9001
Place of Origin :
China
MOQ :
5 pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability :
3000 pcs month
Delivery Time :
5-8 work days
Packaging Details :
standard export packing ,carton packing, water proof, shock resistance or according to customer's requirements.
pressure medium :
gas liquid compatible stainless steel
pressure ranges :
0~2...1000bar
response time :
≤10MS
output signal :
4~20mA, 0~5V, 0~10V, 1~5V, 0.5~4.5v RS485， RS232
accuracy :
0.2 5%FS (standard)
supply voltage :
12~36V
Measuring medium :
Oil Water Gas
linearity: :
0.03%
Description

PT207 pressure sensor low cost 0-10v absolute pressure sensor for oil fuel water

Feature

● MEMS technology

● Imported silicon sensor chip employed

● Perfect long term stability

● CE certificate

● Intrinsic Safety, Explosion-proof safety

● Sillicon sensor cell employed

Applications

● Frequent Water Supply
● Heating boiler
● oil and gas industry

● Industrial process control

● Real-time Custody for oil well

Description

PT207 pressure transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output mode can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work in corrosive environment. The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.

Speifications

Pressure range
-1bar…0bar~0.1bar…1000bar
Overpressure
≤1.5 times FS or 1100bar (min. value is valid)
Pressure type
gauge/ absolute / sealed gauge

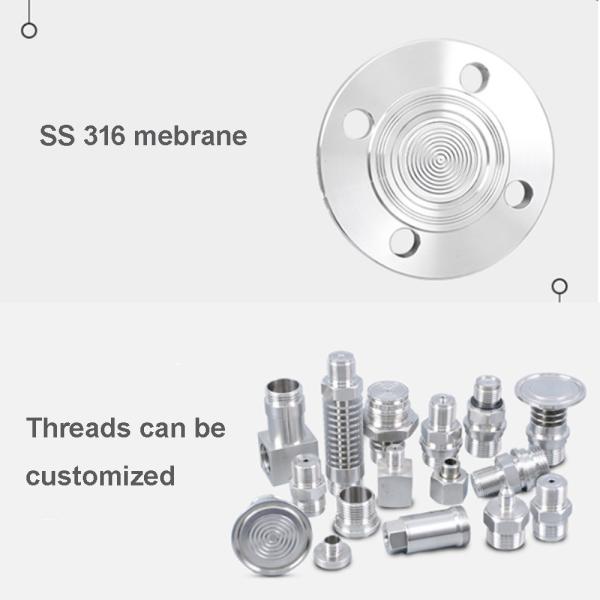

Process connection
M20×1.5 male waterline seal (or on your demand)
Accuracy
≤±0.5%FS
Long term stability
≤ ±0.3%FS/year
Zero thermal drift
≤±0.05%FS/℃ (≤1bar); ≤±0.03%FS/℃ (>1bar)
Span thermal drift
≤±0.05%FS/℃ (≤1bar); ≤±0.03%FS/℃ (>1bar)
Compensation temp.
0℃ ~50℃
Application temp.
-30℃ ~80℃ ; -10℃ ~60℃ (Exia); -20℃ ~60℃ (Exd); -10℃ ~70℃ (Cable)
Storage temp.
-40℃ ~120℃ ; -20℃ ~85℃(Cable)
Power supply
11V~28VDC; 11V~28VDC; 3.3/5V DC

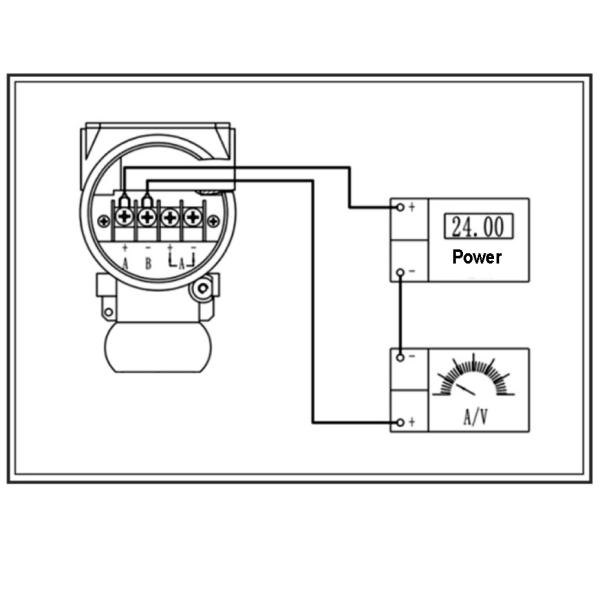

Output signal
4mA~20mA DC(2-wire); 0/1V~5/10V DC(3-wire); 0.5V~2.5/4.5V DC(3-wire)
Load
≤(U-11)/0.02Ω(2-wire); ≥10k(3-wire); ≥10k(3-wire)
Housing protection
IP65
Electrical connection
DIN43650 plug or cable(1.5m)

PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water

PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water

PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water

PT207 0-10v OEM Pressure Sensor Absolute Pressure Sensor Oil Fuel Water
