Specifications
Brand Name :
Atech liquid level pressure transmitter water level diaphragm reliable Water Pressure Sensor
Model Number :
PL301
Certification :
CE, RoHs ,FDA , ISO 9001
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs month
Delivery Time :
5-8 work days
Packaging Details :
standard export packing ,carton packing, water proof, shock resistance or according to customer's requirements.
pressure medium :
liquid compatible stainless steel
Pressure ranges :
0~1 m H2O...800 m H2O
overload pressure :
150%FS
 output signal :
4~20mA / 0.5~4.5V / 1~5V / 0~10V
accuracy :
0.1%FS、0.25%FS、0.5%FS (standard)
 long term stability :
0.2%FS/year
Power supply :
10~36VDC
Application :
liquid level pressure transmitter water level diaphragm reliable Water Pressure Sensor
Description

PL301 High Accuracy liquid level pressure transmitter water level diaphragm reliable Water Pressure Sensor/Transmitter

Feature

● Wide range application

● Long service life

● Diffused silicon oil-filed sensor cell

● CE certificate

● Reinforcement cables optional

● Intrinsically sate ,explosion proof

Applications

● Hydraulic monitoring
● Frequency water supply

● Liquid measuring for petroleum ,metallurgy
● City water supply

● Sewage treatment

● Tank level monitoring

● Water-saving irrigation

● Circulation fluid monitoring

Description

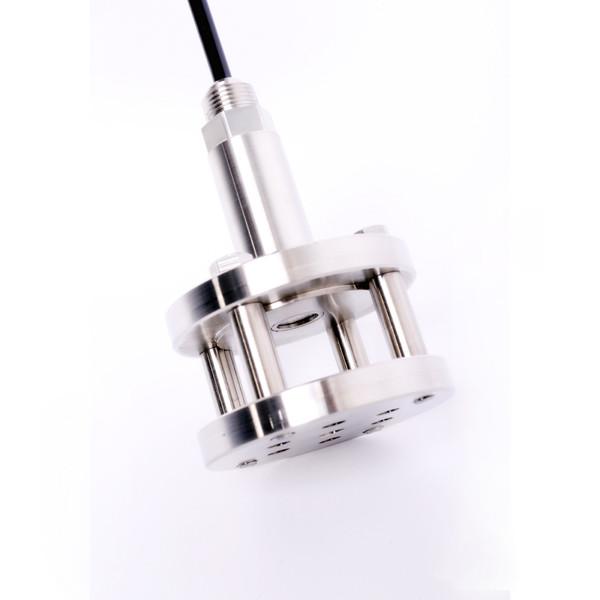

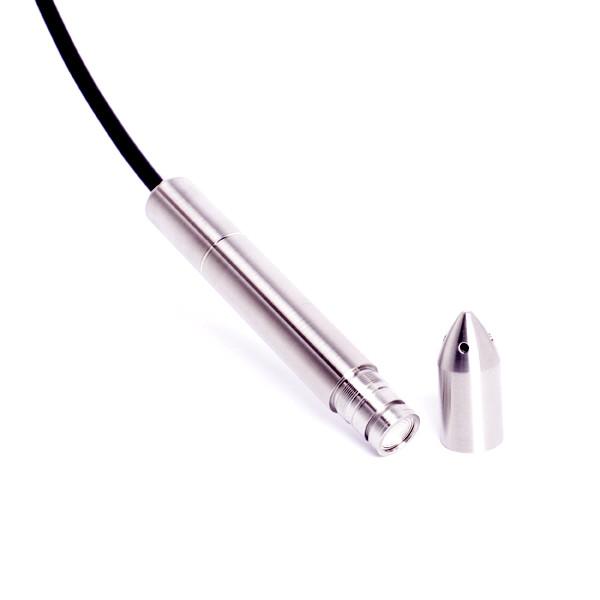

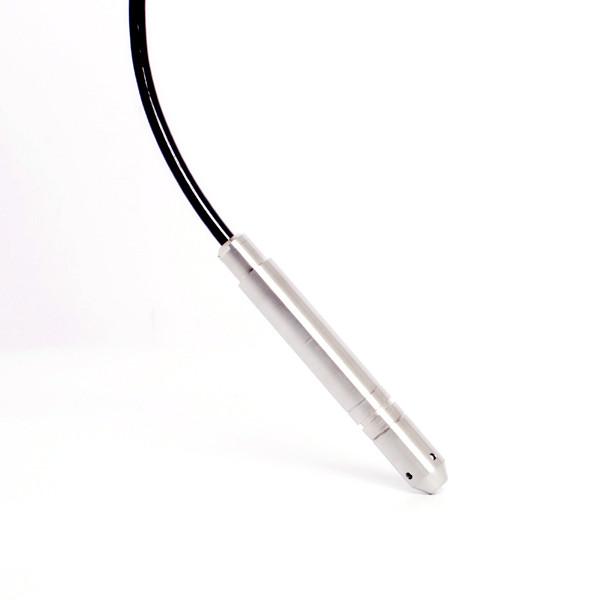

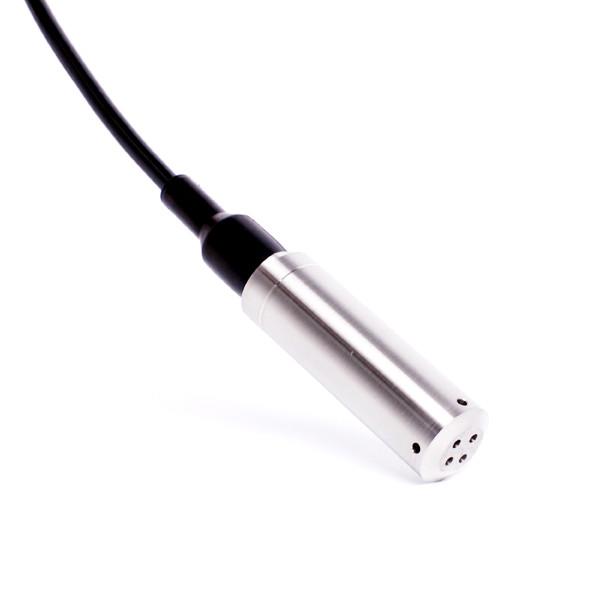

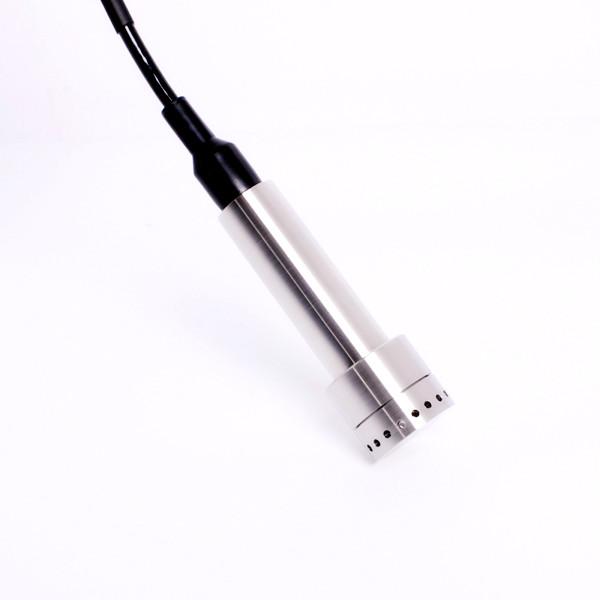

PL 301 series is a highly reliable and accurate liquid level transducer. It can be widely used in liquid pressure and liquid level measurement, such as water, oil and other low corrosive liquids.

It features with 1Cr18Ni9Ti stainless structure, high quality oil-filled pressure sensing unit, special amplifier and V/I transducer circuit board, which make it easy to be calibrate the zero point and full scale by external program-controlled.

The transducer can be configured wearable, oil-resistant, acid and alkali resistant, high strength breathable cable according to different field using environment.

Specifications

pressure medium liquid compatible stainless steel
pressure ranges 0~1 m H2O...300 m H2O
Temperature range -50℃~150℃
overload pressure 150%FS
output signal 4~20mA, RS485
accuracy 0.1%FS,0.25%FS,0.5%FS (standard)
load resistance RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output)
long term stability 0.2%FS/year
supply voltage 10~36VDC
compensated temperature range -10~70°c
operating temperature range -20~85°c
storage temperature range -40~125°c
temperature coefficient of zero ±0.015%FS/°c@25°c
temperature coefficient of span ±0.02%FS/°c@25°c
insulation resistance 100MΩ@ 250VDC 100MΩ@ 500VDC
Pressure connection screw thread, throw-in type
Protection grade IP68
material of wet part and housing 304SS or 316L
material of pressure membrane 316L
Response time 1ms
