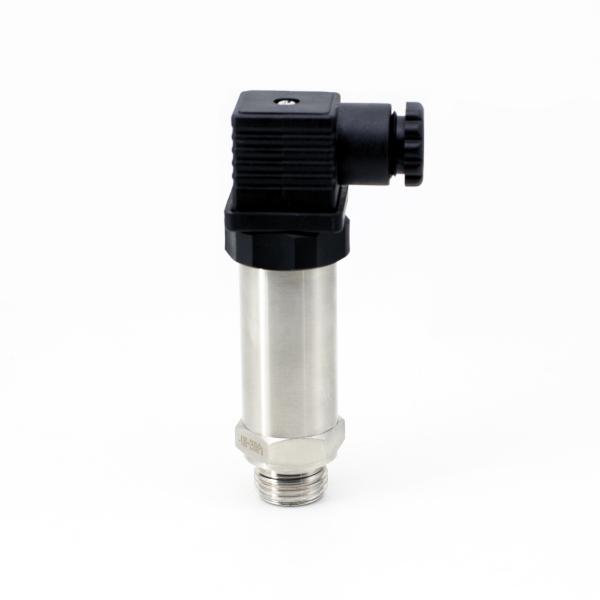

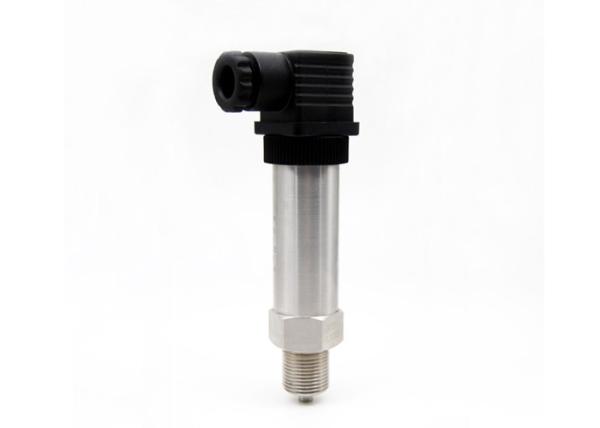

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon
4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon
4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon
4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon
4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon
4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon
Specifications
Brand Name :
Atech pressure sensor
Model Number :
PT208 pressure sensor
Certification :
CE RoHs
Place of Origin :
China
MOQ :
10pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs month
Delivery Time :
10 work days
Packaging Details :
standard export packing
Range :
0-400 bar
output signal :
4~20mA, 0~5V,0.5-4.5,0-10V , 0-3.3V
long term stability :
0.5%FS/year
supply voltage :
10~36V, 8-36V,6-24V, 12-24V ,5V ,9-30V
sensor cell :
sillicon pressure sensor
connector :
M20*1.5 G1/4 npt1/4
Warranty :
12 month
Description

Hot Sales High Performance Micro 4-20ma Piezoelectric Hydraulic Water Air Oil Fuel Pressure Sensors

Feature

It's an advance pressure transducer than traditional mechanical pressure transducer.
2. ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
3. Light weight and small size, convenient to install and operate.
4. It has complete surge voltage protection function.
5. Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.

Applications

● HVAC system
● Water filter
● Air conditioner control equipments
● Frequency water supply

● Water pump

● Building water supply

Speifications

Measuring Range -1000KPa~0-60MPa
Compensation Temperature -10~70℃
Output Signal 4-20mA;1-5V;0-5V;00-20mA;Customization
Medium Temperature Customization
Ambient Temperature -40~85℃
Enclosure Protection IP65
Pressure Type Gauge pressure; Absolute pressure; Seal pressure
Temperature Effect on Zero ±0.03%FS/℃
Sensitivity Temperature Drift ±0.03%FS/℃
Overload Pressure 200%FS
Long-term Stability ≤0.2%FS/℃
Natural Frequency 5KHz~650KHz

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon

PT208 is widely used in:

Process control system Air compressor Refrigeration system

CNGSNG gas station Natural gas HVAC

Oil pumpdrilling Food industry Chemical industry

Hydraulic control system pump&water system Others

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon

tance

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon

4-20ma Hydraulic Water Air Oil OEM Pressure Sensor Silicon
